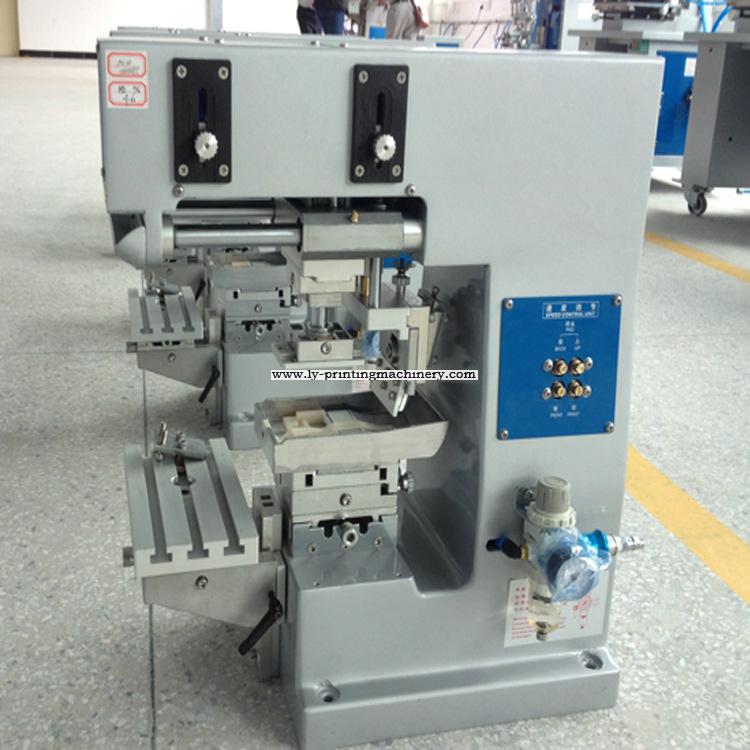

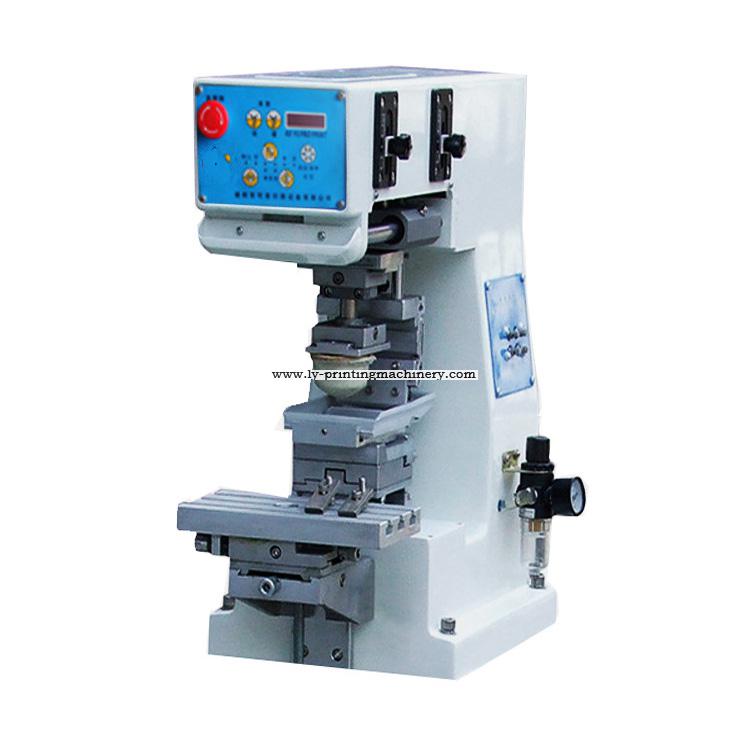

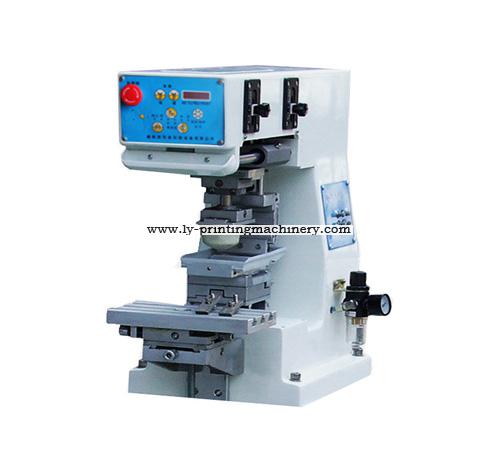

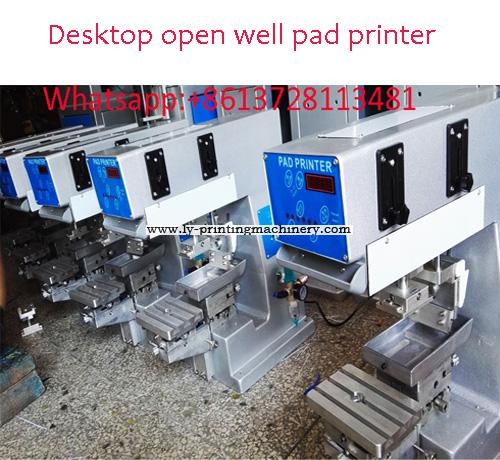

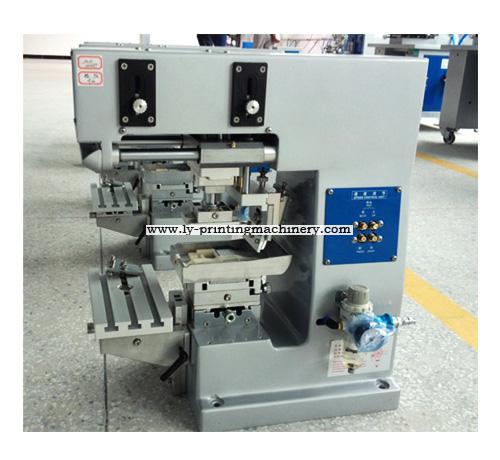

One color desk top pad printer with open well

Description:

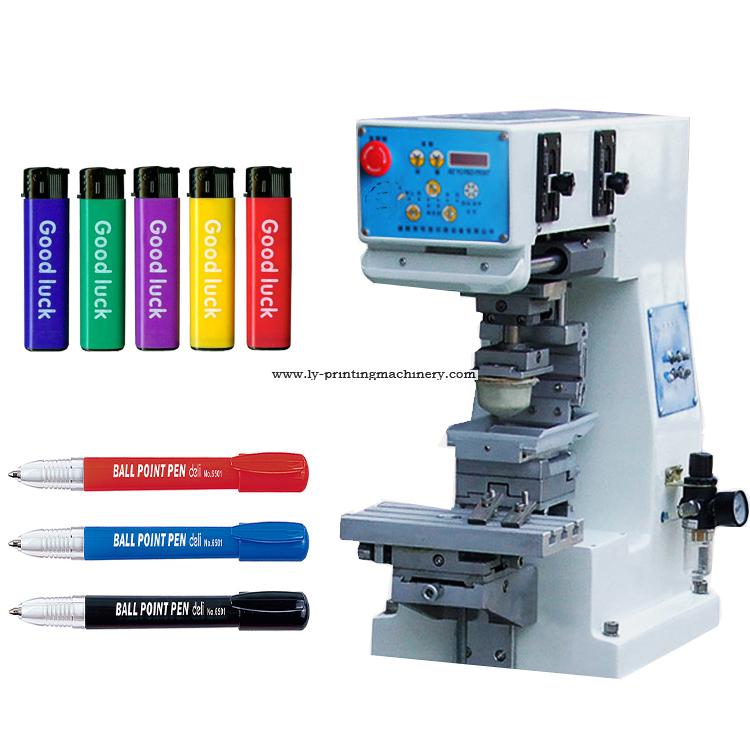

LY MINI series pad printing machines, which is fit for the nice printing on the small size workpieces. It can be operated easy and has good printing speed .And the two colors machine can overprint also. For example:

Feature
1. Fully automatic control by microcomputer ;
2. Four figures automatic counter
3. Machine body made by coin aluminium and blue colour coated.
4. Independently adjust the pressure & speed of pad.
5. Adjustable blade pressure automatic and easily removing oil on the plate.
6. Only front to back of blades function to avoid solidification of printing ink when stopping
7. Independently adjusts worktable position and rotates at any point
8. Lower noise and operation placidity

Specifications of Model: LY-Mini-D100
1. Max plate areas: 100×100mm
2. Printing colour: 1
3. Max printing speed(Pcs/Hr)2000
4. Max Print area:85×85mm;
5. Air consumption: 130L/Min;
6. Working table dimension: 200×125mm;

7.Machine size: L550xW300xH600mm

8.Machine weight: 40Kg
9. Range of working table up-and-down: 100mm.
10. Packing size: 61*40*74cm

11. Voltage : 110V-230V
