Single gun auto spray painter with PLC

Our automatic spray painting machine can paint all body on plastic, wood, metal rubber materials ,such as toy,shoes,mobile phone,cup ,bottle , furniture,household appliances,small parts ,panel ETC, any shape ,anywhere ,any color can be painting, It can turn 360 degree by X/Y/Z/U/A/B Six axis , with PLC control, easy operation, it can be saved 10 thousands different files, easy operation, high painting quality.

Feature

It with automatic cleaning mould system machine to clean moulds any time,With automatic draining filtration system,Full Sealed environmental protection working, no smell,safe working.

LY-AT28 is samll auto spray painting machine with single gun , the machine is suitable for spraying small toys, parts,products, one person can operate 2 machines at the same time, attractive price, easy operation, PLC programing .


Specifications

1.Model: LY-AT28
2.Mahcine size: L800x530x1450mm
3.Mahcine weight:135KG
4.Voltage : 220V/ 50HZ , total power :350W
5.Air pressure: 0.4-0.6Mpa
6.Six - axis system: X,Y,Z,U,A,B
7.Max speed: X&Y-400mm/s Z-150mm/s A-2rad/s B-4rad/s
8.Spray Capacity: 350--1000PCS/Hr
9.Painting size: L160mmx W110mmxH360mm
10.Machine body: adopt stainless steel
11.Spray positon: full body ,everywhere can be painted
12.Spray gun: adopt environmental high qulity single gun
13.With automatic cleaning mould system machine
14.With automatic draining filtration system
15. Full Sealed environmental protection working, no smell
16. Easy operation ,PLC control system,safe working.

17. With CE certificate

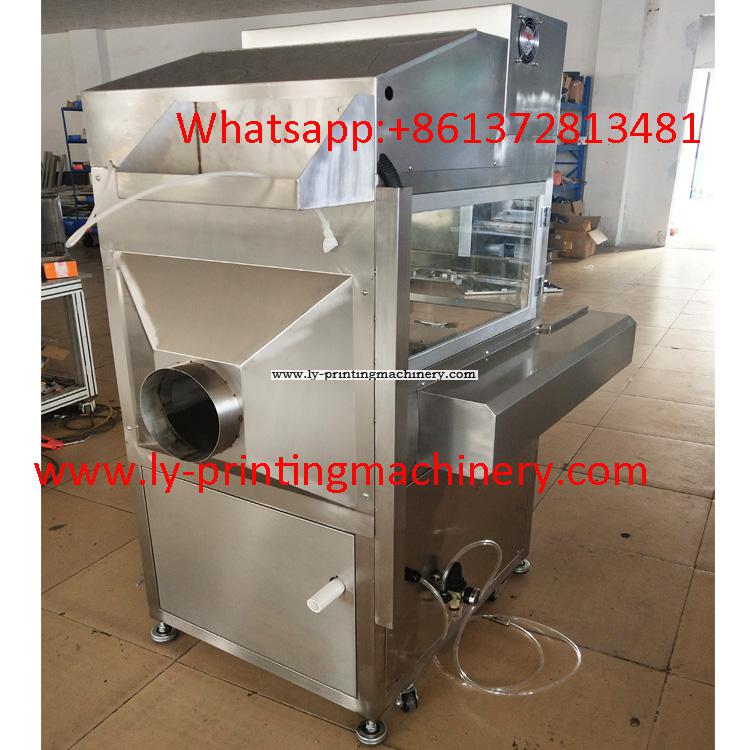

Machine front

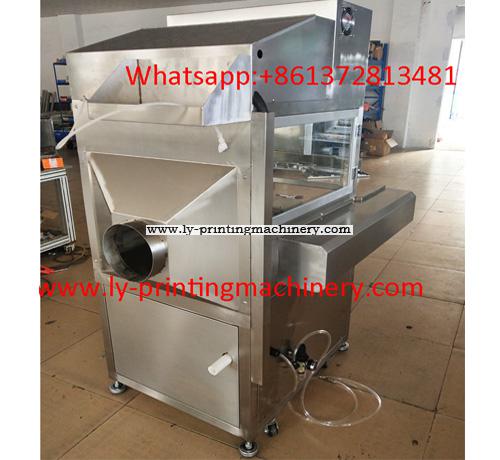

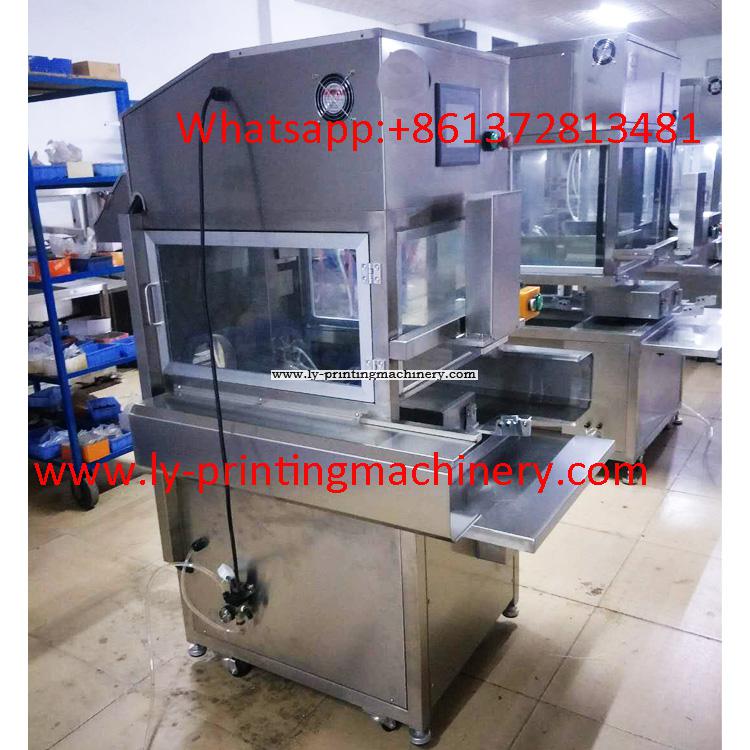

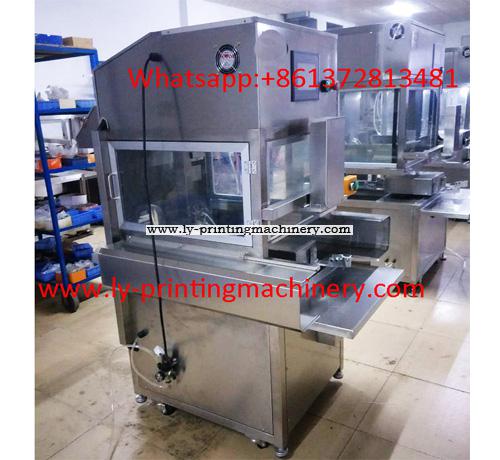

Machine back

With automatic cleaning mould system machine

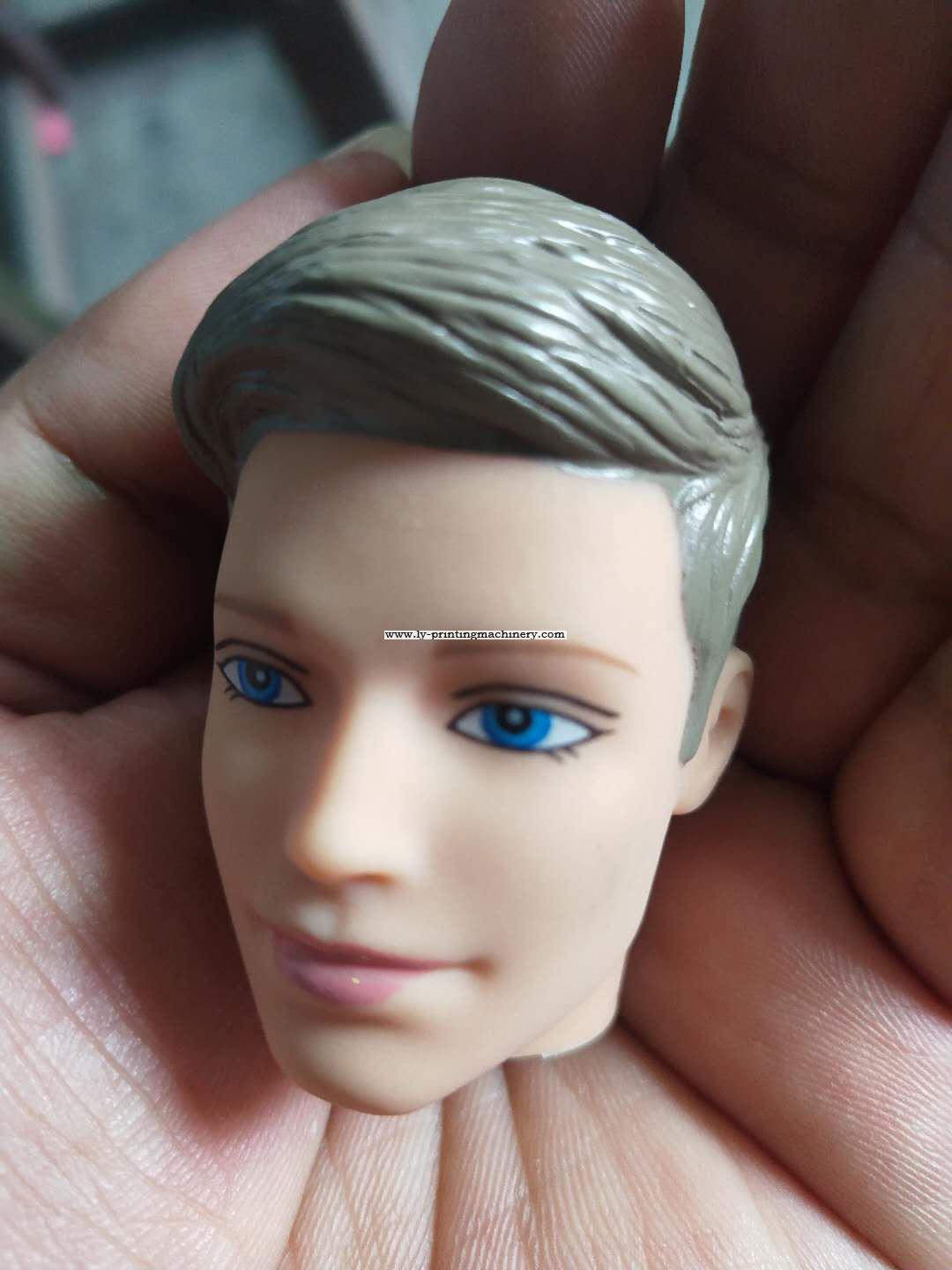

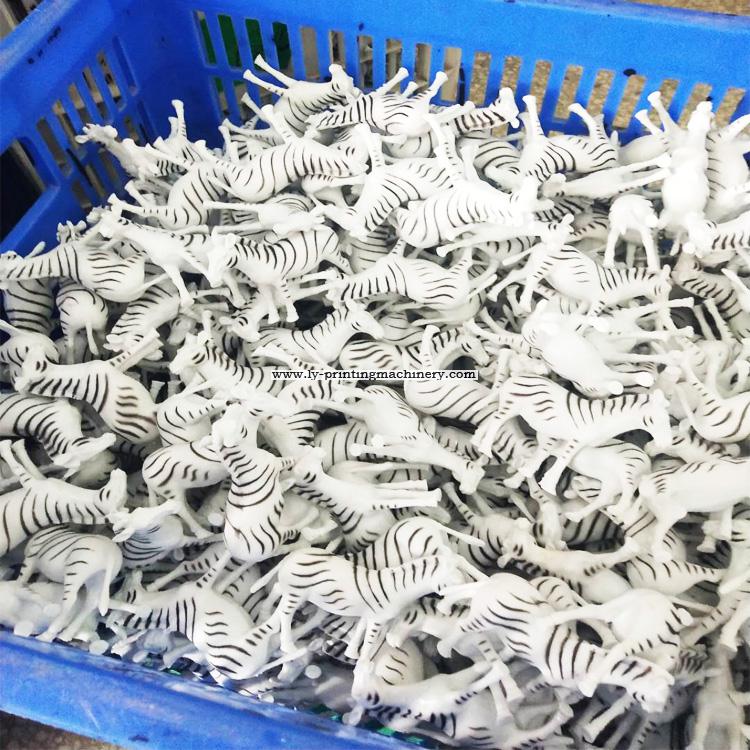

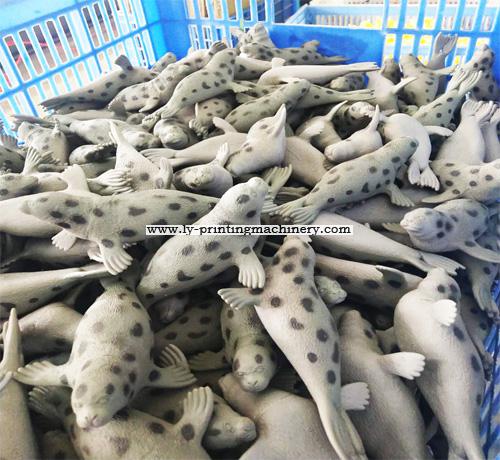

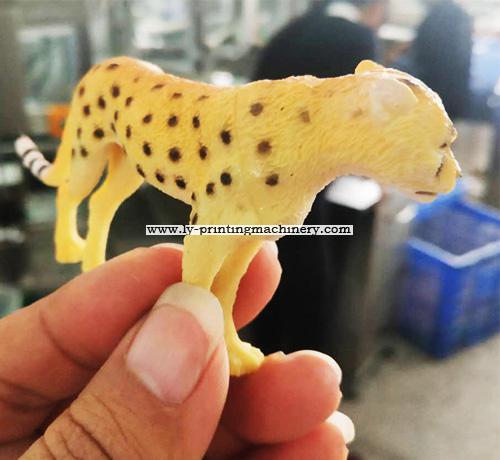

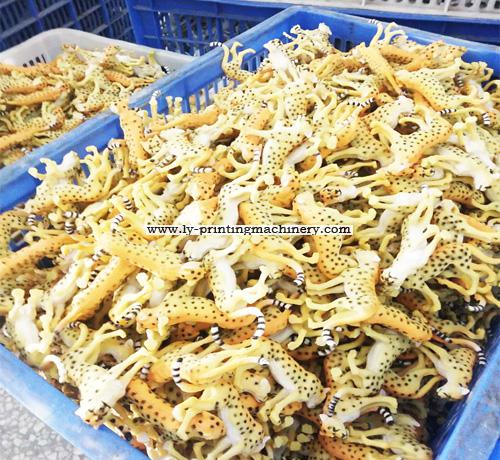

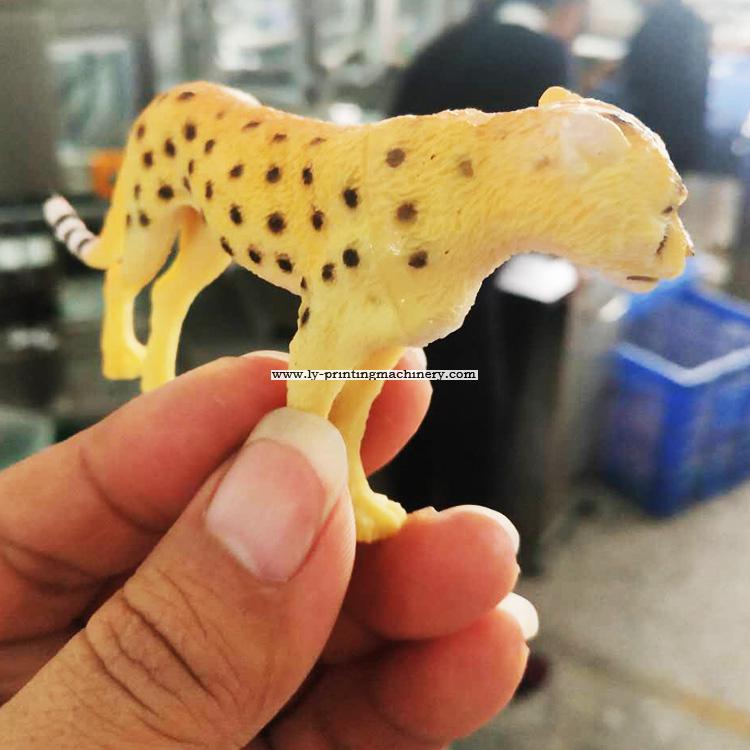

Spray painting samples
