300mm width Small UV curing machine

Applicable range

UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Description

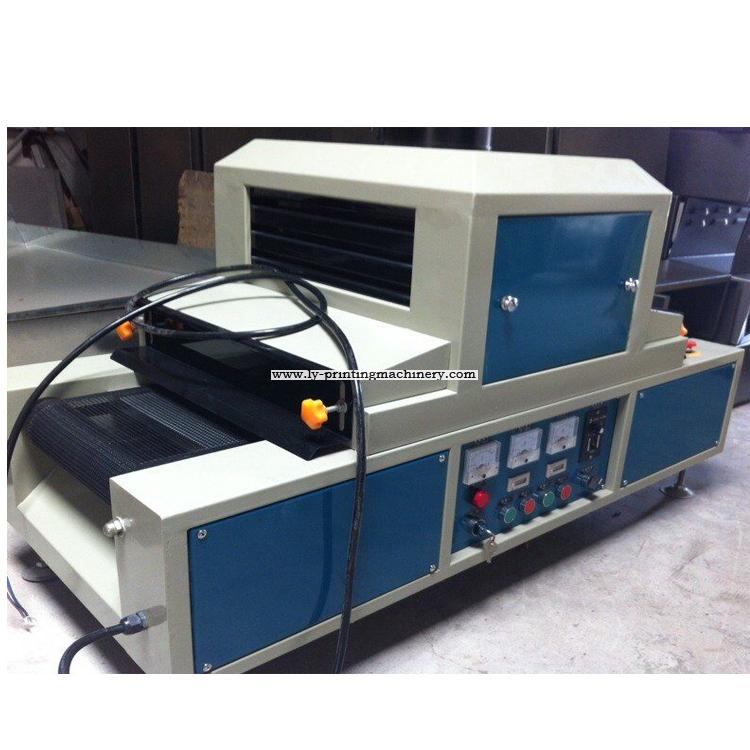

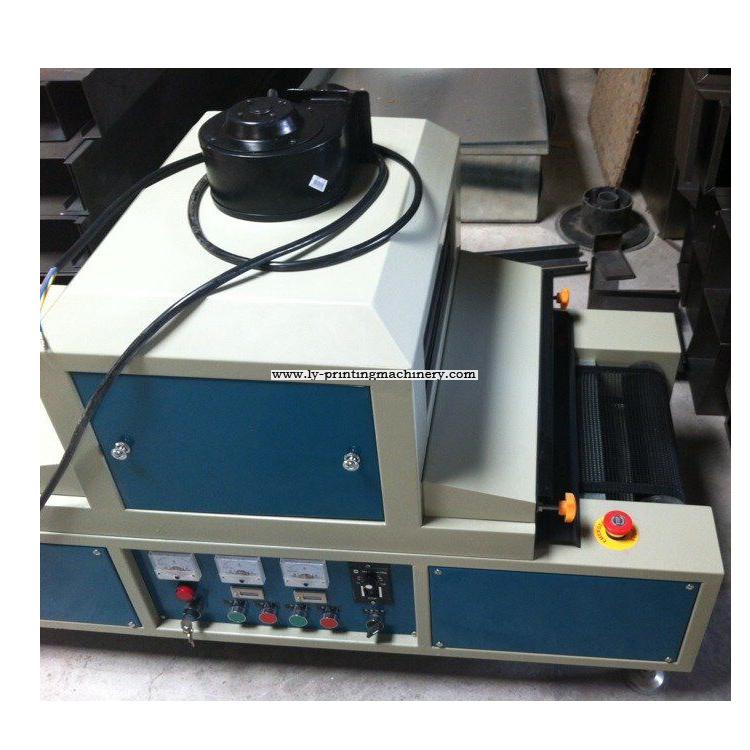

Desktop style  UV Curing Model is LY-300U. it is small Volume and easy carrying .widely  use for drying  printing UV ink ,UV paper printing ,UV glue ,UV tunnel drying ,UV ink , UV testing .favorable price and high quality .

Feature:

1.It is adopted independent system for UV lamp , you can adjust the power what you want .
2.The Conveyor Speed adjustment is stepless , It can adjust speed depend on your requirement.
3.It with emergency switch so that quickly deal with emergency.
4.Small Volume and easy carrying ,cheap price.
5. Conveyer belt made by tefulong materials, UV Lamp lifetime can reach 1000-1200 hours.
6.It can add unloading system ,so that save workers labor.

Tech  Parameter
1.Model  NO. LY-300U
2.Max product width: 300mm
3.Max product length:1200mm
4.UV Process shine area： 300×400mm
5.Conveyer speed: 0-10m/min
6.UV Lamp power：2KW *2 PCS/
7. conveyer belt size：1200*300 (L*W)
8. UV light power supply: 220V/50 HZ
9.UV Machine  Dimension: （L*W*H）1300×320×750mm
10..Net Weight:130kg
