> IR tunnel dryer

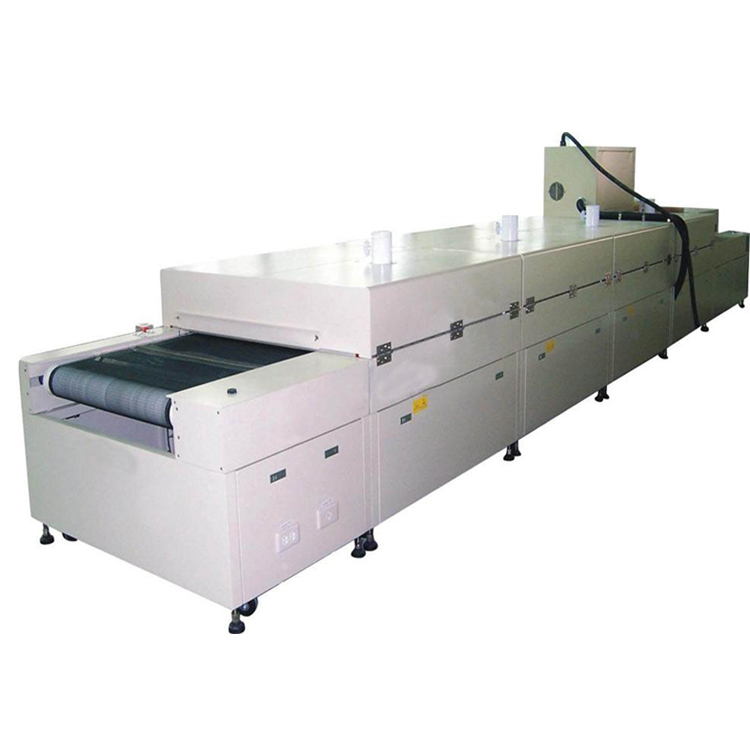

IR drying tunnel LY-9000
- Big IR dryer
- IR tunnel
- IR conveyor
- IR drying machine
- Product description: LY-9000
PRODUCT INTRODUCTION
1.IR drying tunnel can drying all kinds of ink ( except UV ink),such as Plastisol ink, thermosetting ink,screen printing ink,pad printing ink,plastic ink,glass ink ETC.
2.It can drying variety of material ,such as fabric,plastic,matel,glass,wood,silicone Etc
3.Our IR drying tunnel could be customized, such as drying size , maximum temparature conveyor material stainless steel Teflon and other requirment, it just depend on your requirment.Ensuring good drying quality, Our IR tunnel conveyor is adopted high-temperature resistant Teflon material, Conveyor Speed adjustment is stepless(variable)
Feature

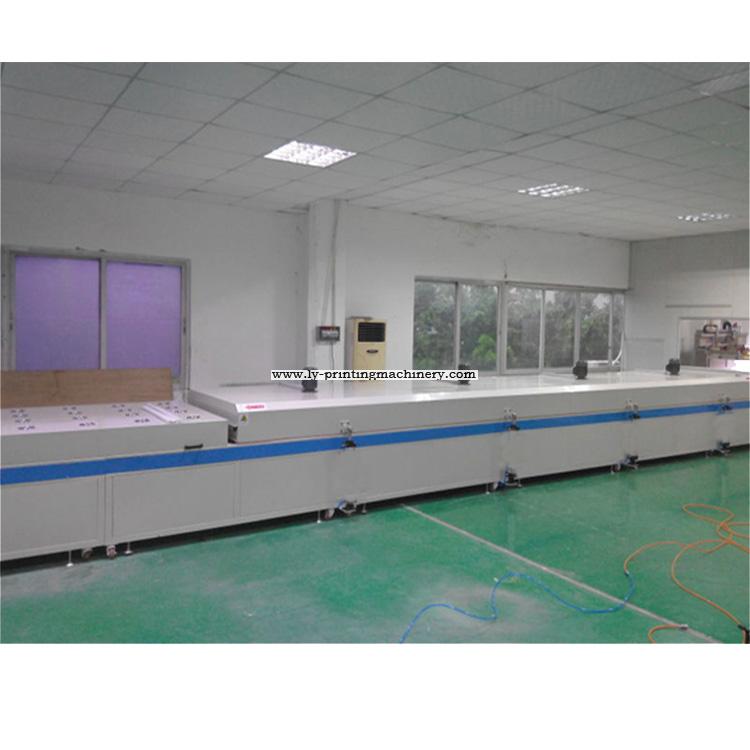

LY-9000 total length is 9M, Tempreture zone is 8M(Drying area),drying width is 600mm.
1.it has air circulation system via 2 fans, With exhaust ducting easy operation ,long life.
2. Famous brand motor is imported, Conveyor sprocket is adopted carbon chain standard sprocket, the main cold-drawn steel car system.
3.Microcomputer intelligent temperature control system, temperature than the general use of temperature control machine is more reliable and stable, the temperature can be segmented control.
4. Imported cotton insulation, thermal insulation effect is excellent, energy saving than the ordinary oven to save 30% electricity.
5.With sheet metal to under frame area,so that it can be dust-proof, safe, beautiful, hanging buckle structure installation, easy maintenance and combination.
6.Tunnel body is made by angle iron bar production, sub-combination of design structure, easy removal and convenient installation.
7.Oven internal lines using high-temperature sets of protection, clear and neat to facilitate maintenance.
Technical parameter
1.Conveyor length :9m working area :8m
2.Conveyor width:600mm
3.Machine size: (L)9100x(W)1880x(H)1500mm
4.Working power: AC 380V 50HZ
5.Temperature adjustment: 0-200 Centigrade
6.Constant temperature will be 5º C more or less
7.Temperature resolution: 1º C
8.Belt speed adustment: 0-10M/MIN
9.Gross weight: 880 KG
10.Conveyor material:Teflon
11.Conveyor Speed adjustment is stepless(variable)
