700mm width UV ink Conveyor

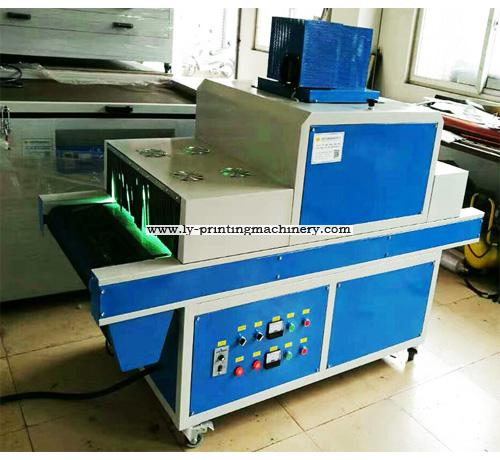

UV Curing Machine LY-700U   be fit to  UV curing drying ,for plastic,Paper ,pvc, PP Sheets, wooden floor board ,UV POLISHING , PVC,PET , PCB  after printing UV printing, electronic product UV sparying ,  UV pritning, packing products UV drying .

UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Conveyor width is 600mm, Lenth is 2000mm, Any width and length can be customized

Paramter
1.ModelNO.:LY-700U
2.UV Drying  products：W700*L2000mm H100*
3.Conveyor belt size：L2000* W700MM
4.UV Lamp power：2PCS*3KW /380V
5.Total wattage：7.5KW
6.Wind fan wattage: 500W/380V
7.Motor wattage：1000W/1P/380V
8.Conveyor speed：0~10m/min
9.Speed change ways：Continue

10.UV Machine  Dimension：L*W*H2020*900*1350
