Auotmatic reciprocating spray painting machine

Painting size:500*500mm
PLC operation
can be changed color
safety
Product description: LY-A020
Inquiry Now

PRODUCT INTRODUCTION

Our auotmatic reciprocating spray painting machine LY-A020 is very popular by our customers, this machine max painting size can be reached L500*W500mm, you can put more than 30 PCS-50PCS items on the position to print by one time if the items is small, it suitable for painting flat , two side ,front, back on products, also it can paint heavy and slight color at the same time, it means can be changed color . With full PLC controlled operation and programming, easy operation ,safety .

Specifications of LY-A020
1.Mahcine size: L 1750xW1650xH1850mm
2.Mahcine weight:235KG
3.Voltage : 220V/ 50HZ , total power :1000W
4.Air pressure: 0.4-0.6Mpa
5.Spray Capacity: 500--2500PCS/Hr
6.Spray size: 500mmx500mmx80
7.Machine body: adopt stainless steel
8.Spray positon:flat ,side
9.Spray gun: adopt environmental high qulity one gun
10. Easy operation ,PLC control system,safe working.

it can be painted all kind of material, Plastic ,Wood, Metal, glass, PU ,PVC,EVA, Rubber, Paper,Silcone ETC.
It can use paint ,ink, resin varnish ,oil for painting on your products.

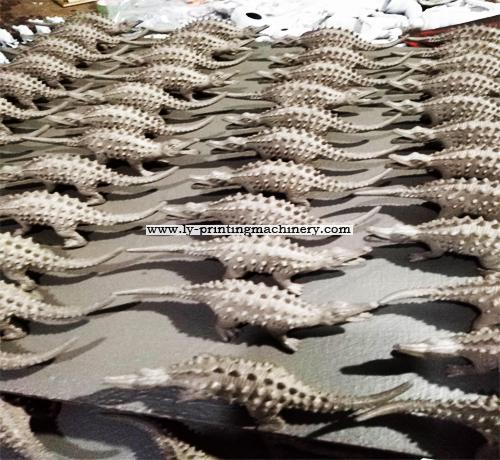

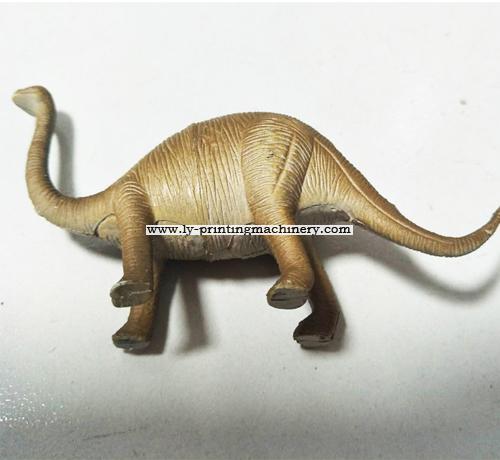

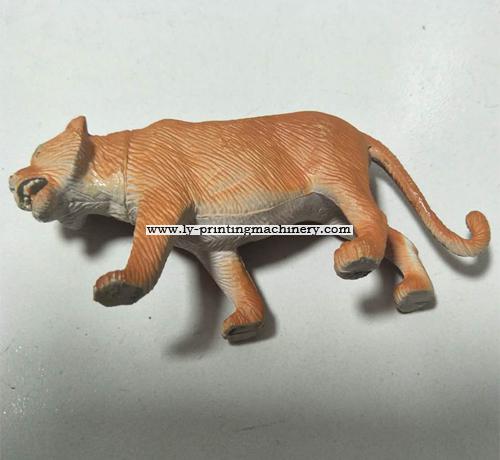

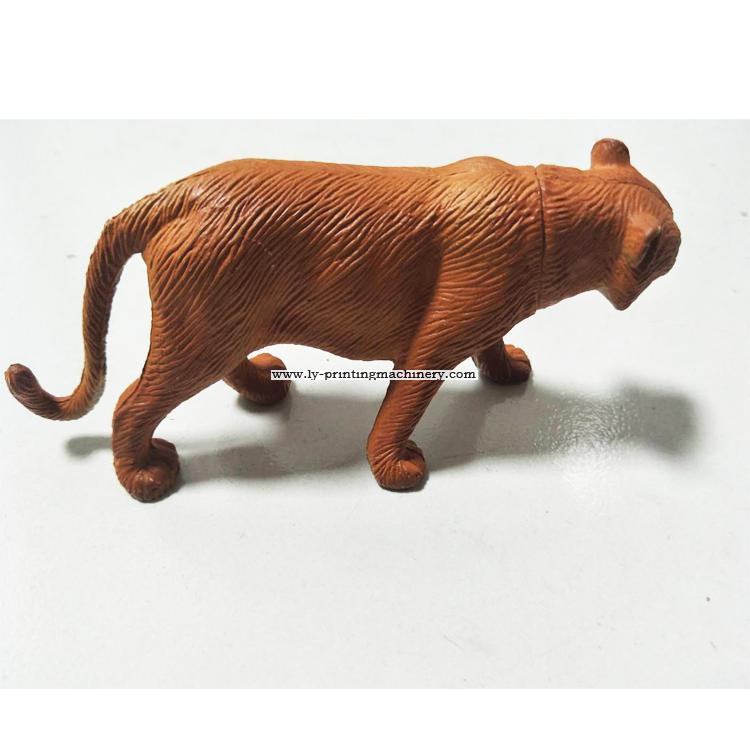

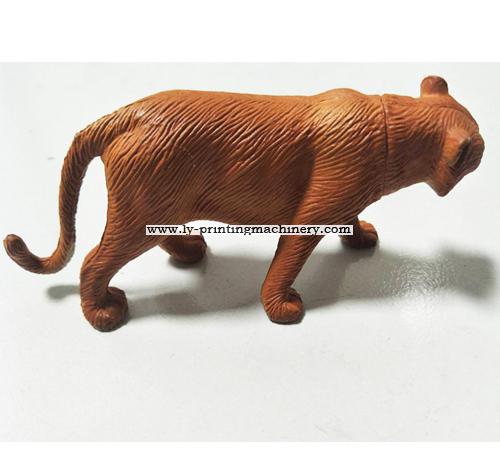

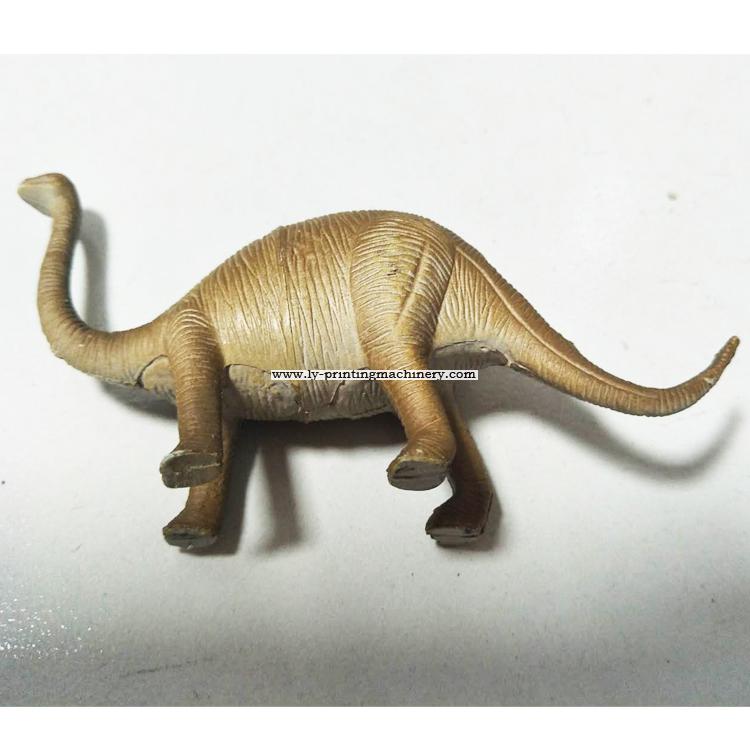

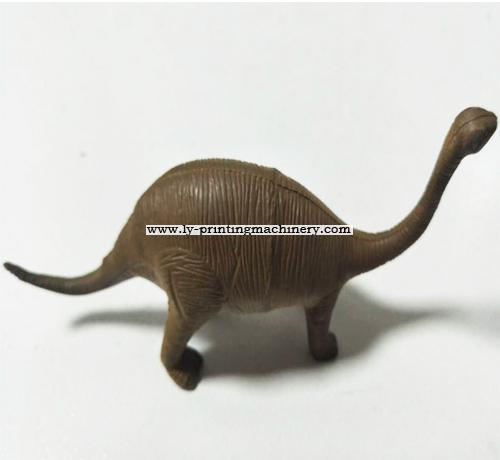

Toys, bottle, cap, mobile phone, ball, cup, pan, panel, shoes ,lighter promotional gift ETC

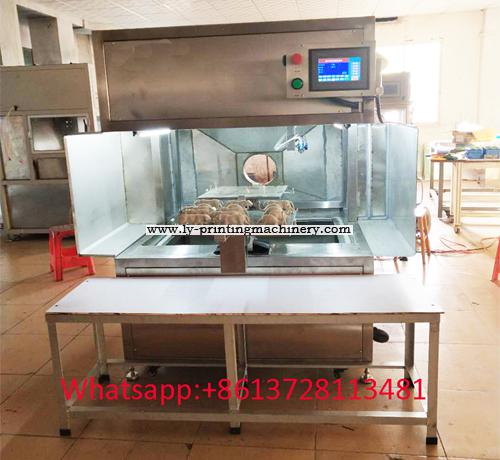

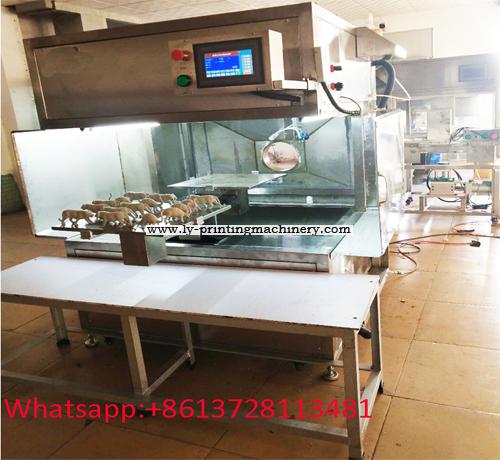

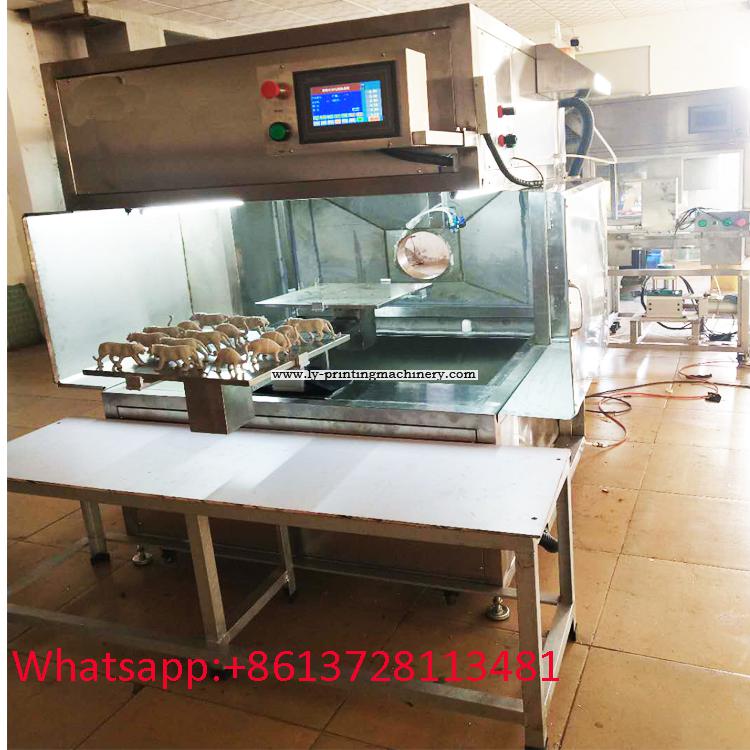

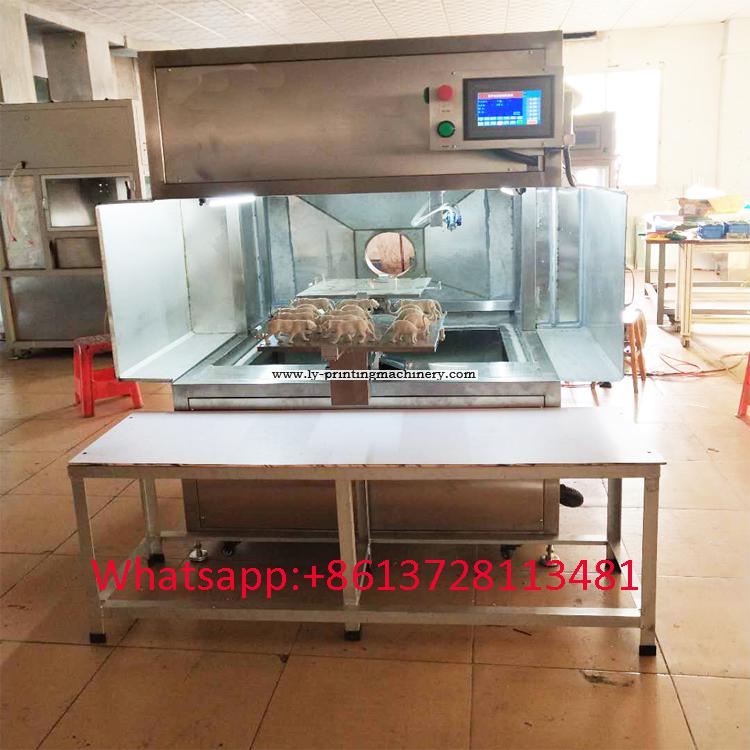

Machine front
