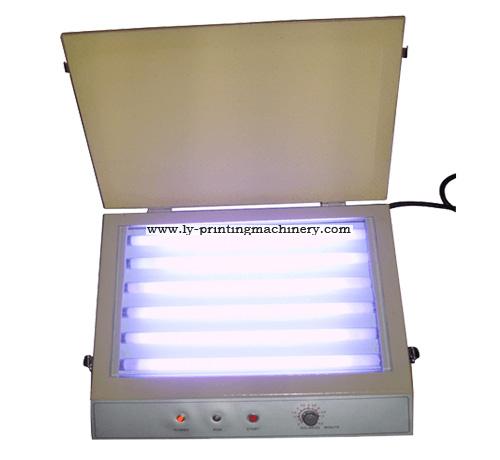

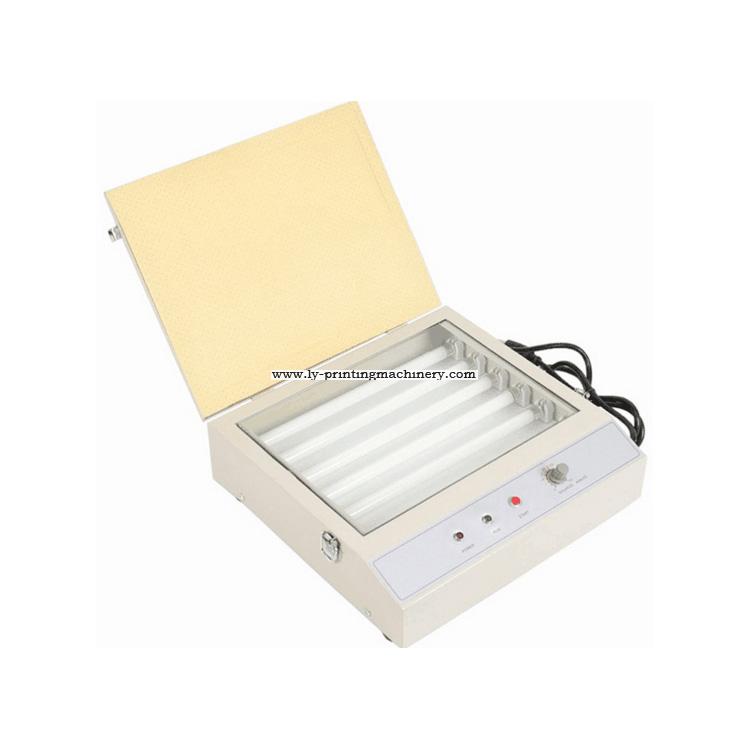

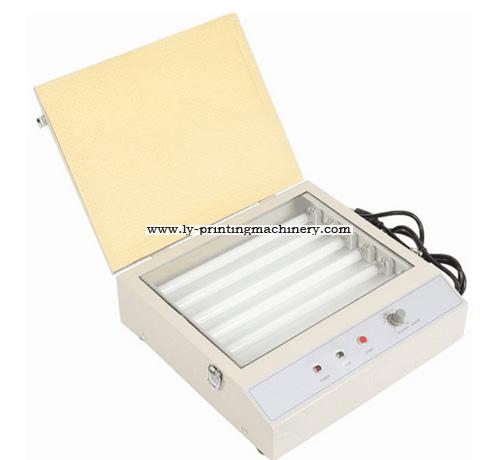

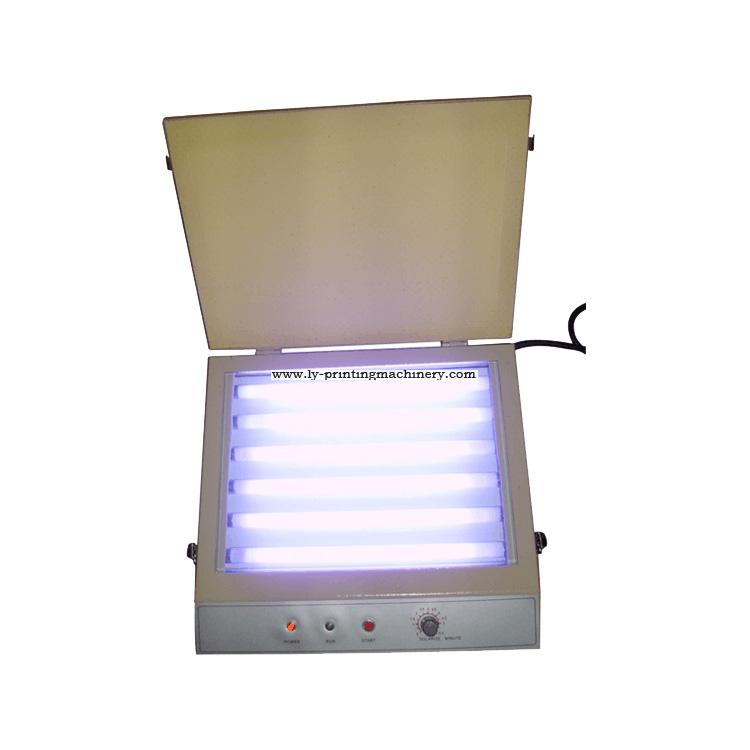

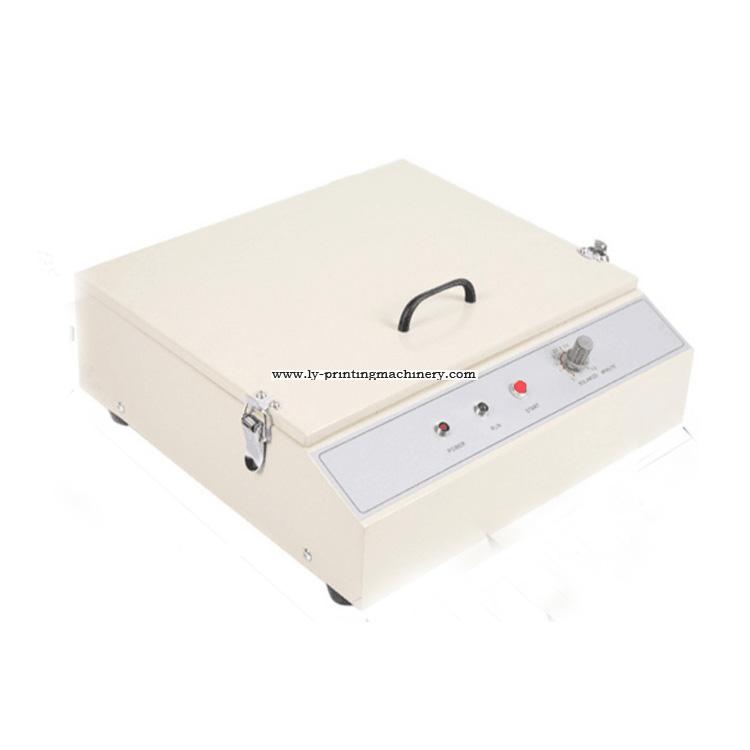

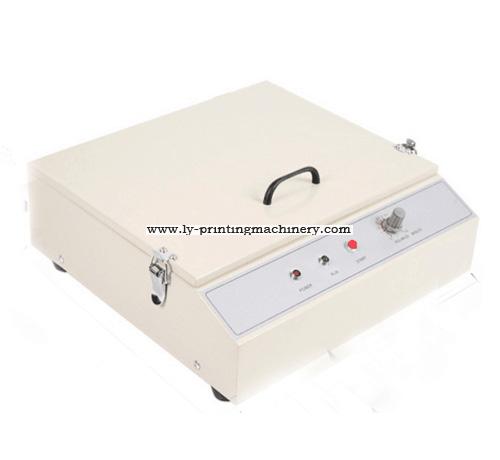

Mini UV exposure machine for pad plate
- Mini UV exposure machine
- for making pad plate
- Product description: LY-260UE
PRODUCT INTRODUCTION
Product Description:
A low cost and convenient exposure unit for pad stencil exposure. Eeposure area is 260*310mm; It can be applied for thin steel plate and photo-polymer plate image. It is not suitable for exposuring on screen plate because there is no vacuum device and rubber clothes; The built-in digital timer provides excellent exposure timing control.
Parameters :
1.Mode:LY-260UE
2.Power:110V/220V
3.Light source:UV light
4.Lamp power*amount : 8W*6pcs
5.Exposure duration : 0~5.5min
6.Max.exposure area : 260*310mm
7.Machine dimension : 300*290*75mm
8.Packing dimension : 320*310*90mm
A low cost and convenient exposure unit for pad stencil exposure. Eeposure area is 260*310mm; It can be applied for thin steel plate and photo-polymer plate image. It is not suitable for exposuring on screen plate because there is no vacuum device and rubber clothes; The built-in digital timer provides excellent exposure timing control.
Parameters :
1.Mode:LY-260UE
2.Power:110V/220V
3.Light source:UV light
4.Lamp power*amount : 8W*6pcs
5.Exposure duration : 0~5.5min
6.Max.exposure area : 260*310mm
7.Machine dimension : 300*290*75mm
8.Packing dimension : 320*310*90mm
9.Weight : 5KG
