> Plate making equipment

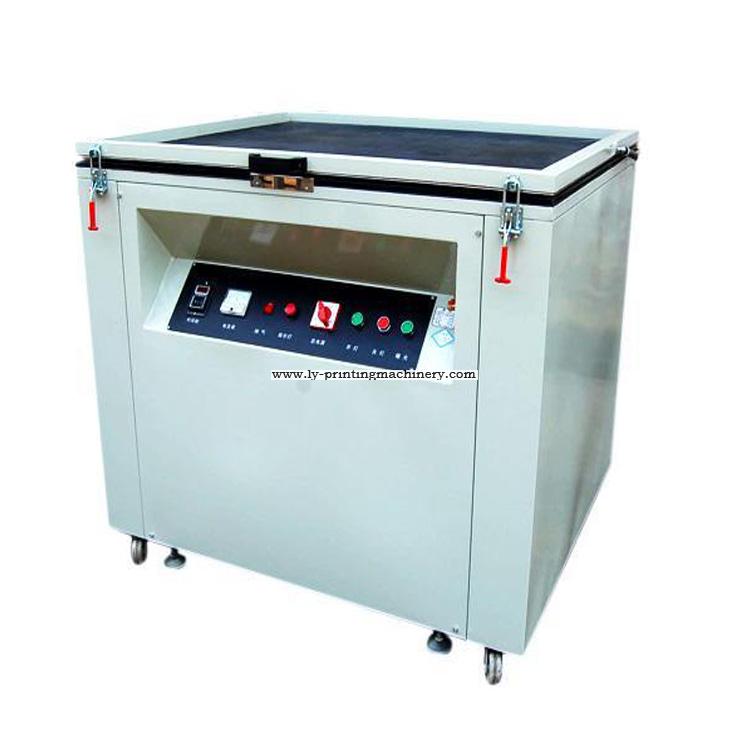

Screen plate UV exposure machine LY-800UE
- Screen plate
- UV exposure
- Pad plate
- Product description: LY-800UE
PRODUCT INTRODUCTION
Product Description
Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. When you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. This is important process on all plate-making technology. Flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state
1.Vacuum absorbing, the high quality elastic sealed rubber cloth, let the film tightly contact to the screen, and so ensures the clear designs;
2.Suitable for exposure the pad plate.
3. Famous Exposure system brand ensures the stable and even exposure.
4.Instance it comes into the vacuum condition, save much plat-making time.
5.Easy to operate, convenient to adjust the exposure time.
6.Choose high quality UV lamp which keep a long life span.
7.Whole jointing with zinco plate, both portability and firmly.
8.Exposal time auto adjustment and controlling.
9.High vacuum degree, easy to transfer and copy fine lines;
10.Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp;
11.The upper panel adopts toughened glass, nice rigidity and high tansparence.
Tech Parameter
1.Model number: LY-800UE
2.UV Lamp brand: PHILIP Made In HOLLAND
3.Including a vacuum pump inside made in America
4.Glass Table dimension: 610*810mm
5.Max. Screen stencil size: 600*800mm
6.Voltage: 220V/50HZ
7.Lamp wattage: 2KW
8.Dimensions(W*L*H): 650× 850× 900mm
Used in the filed of plate-making such as pad plate, screen plate, hot stamper plate, resin plate. When you put the film onto the plate into UV exposure machine, start it, the emulsion on the plate will appear a unseen imagine. This is important process on all plate-making technology. Flexibility Rubber Film ensure Film contact compactly with surface of slik when vacuum state
1.Vacuum absorbing, the high quality elastic sealed rubber cloth, let the film tightly contact to the screen, and so ensures the clear designs;
2.Suitable for exposure the pad plate.
3. Famous Exposure system brand ensures the stable and even exposure.
4.Instance it comes into the vacuum condition, save much plat-making time.
5.Easy to operate, convenient to adjust the exposure time.
6.Choose high quality UV lamp which keep a long life span.
7.Whole jointing with zinco plate, both portability and firmly.
8.Exposal time auto adjustment and controlling.
9.High vacuum degree, easy to transfer and copy fine lines;
10.Automatic door of UV lamp shut off and turn on when exposure and finsi ensure long life of UV lamp;
11.The upper panel adopts toughened glass, nice rigidity and high tansparence.
Tech Parameter
1.Model number: LY-800UE
2.UV Lamp brand: PHILIP Made In HOLLAND
3.Including a vacuum pump inside made in America
4.Glass Table dimension: 610*810mm
5.Max. Screen stencil size: 600*800mm
6.Voltage: 220V/50HZ
7.Lamp wattage: 2KW
8.Dimensions(W*L*H): 650× 850× 900mm
9.Weight: 88kg
1.Model number: LY-1100UE
2.UV Lamp brand: PHILIP Made In HOLLAND
3.Including a vacuum pump inside made in America
4.Glass Table dimension: 900*1200mm
5.Max. Screen stencil size: 850*1100mm
6.Voltage: 220V/50HZ
7.Lamp wattage: 2KW
8.Dimensions(W*L*H): 650× 850× 900mm
9.Weight: 110kg
