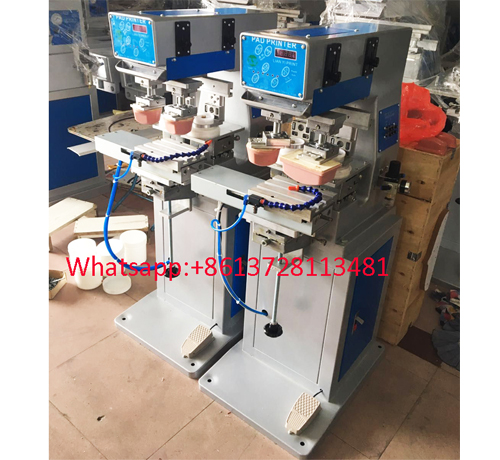

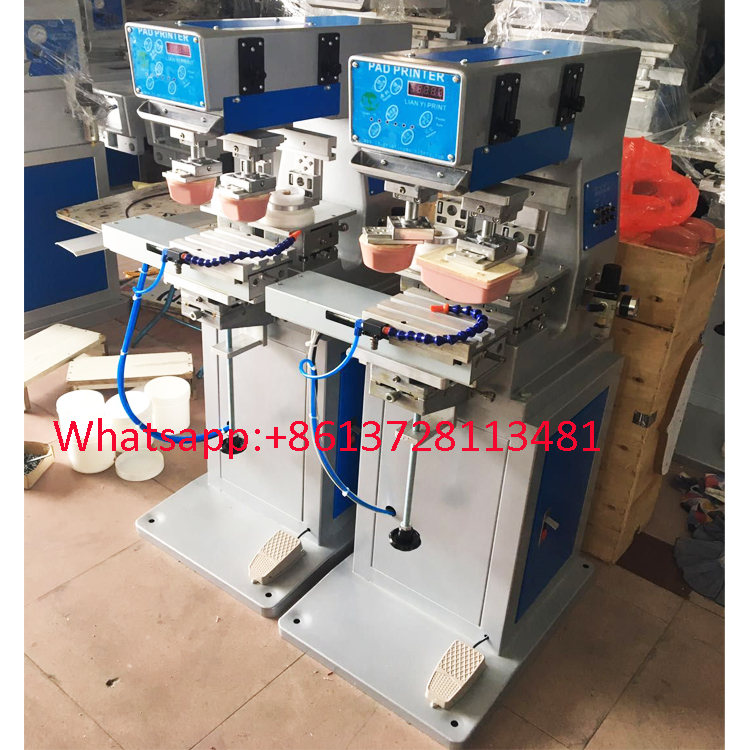

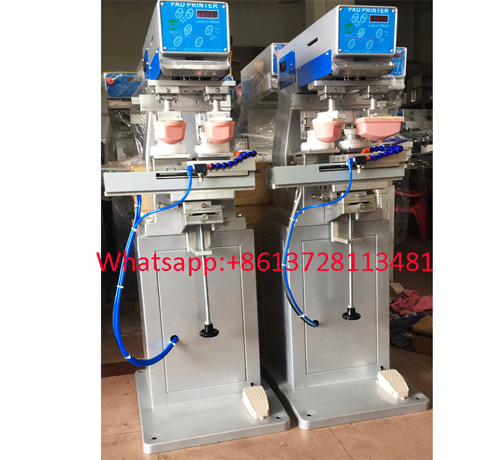

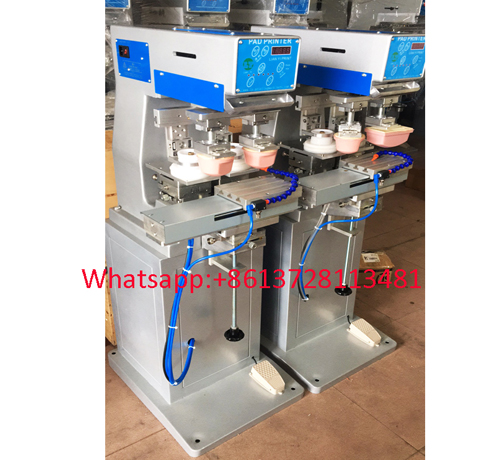

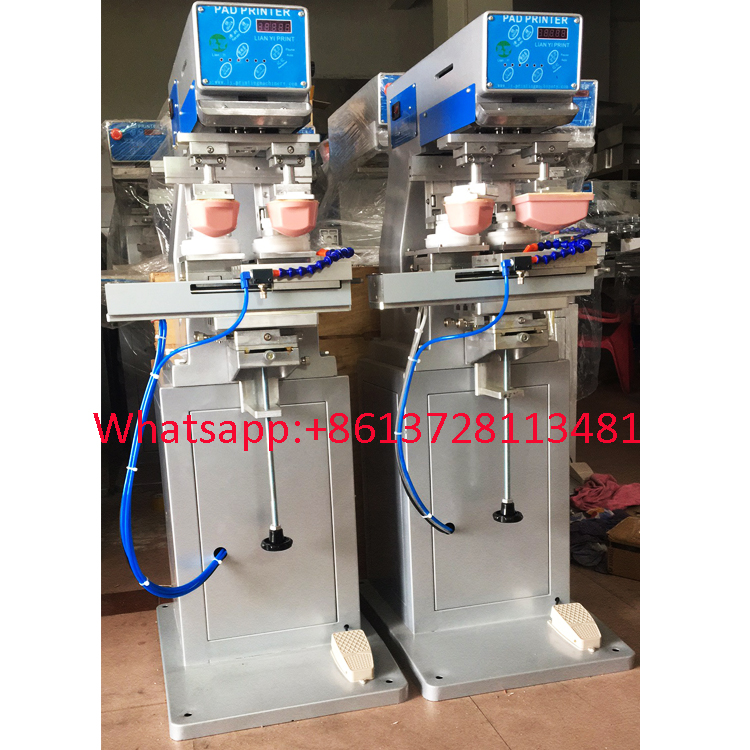

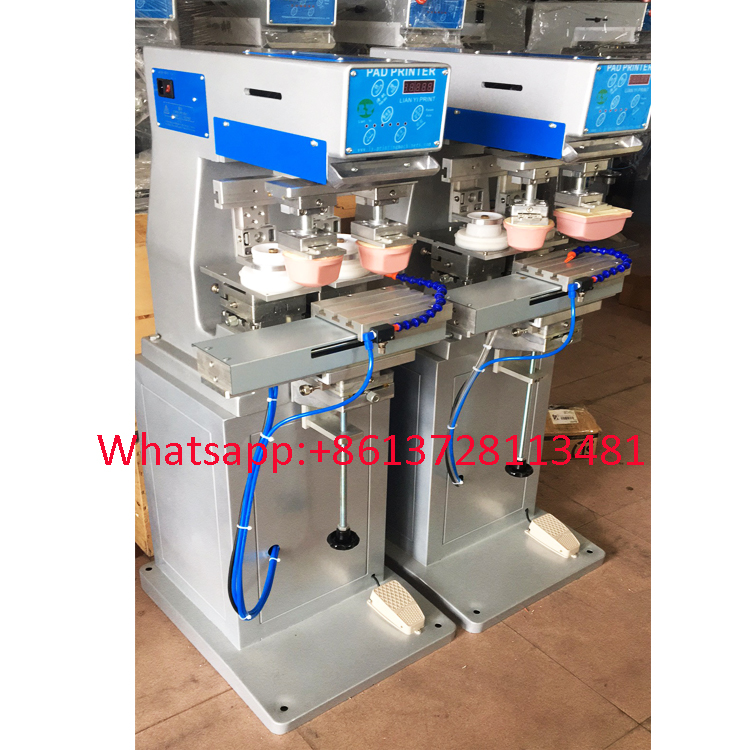

Two color pad printer with closed ink cup

Description:

Two color pad printer with closed ink cup
LY-MP2-200C is applied for print various kind of material,such as metal,glass,chinaware,plastic and so on.

It also suitable for small printing area like plane, cambered and irregular surface,such as the button in mobile phone,golf ball and the ball head,toys,pen,mouse,electronic appliance,crafts and so on The wolfram steel scraper which is made by the newest Nanotechnology is used on the sealed cup pad printer,with a degree of HRC63 of the hardness on the surface.

it also have high resistance and can be used for almost 3,000,000 times.This type of the machine is more environmental and can save more ink when compare with the traditional ink-well Pad printer.

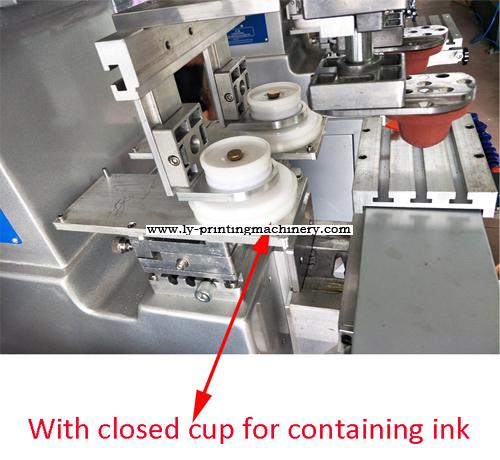

It is with closed ink cup, can save 60% ink and 90% thinner comparing with open ink plate.

Pad printer with close ink cup has exterior beautiful, small, easy operateing, high quality, environment friendly /acceptable, competitive price, useful for small products, same as toys, pen, stationery, gift, elc products...


Parameter
1. Model No:LY-MP2-200C
2. Operation: Pneumatic
3. Printing Colors: 2
4. Max. Printing area: 80*90mm
5. Plate area: 100*200 mm2
6. Sealed ink cup diameter: 90 mm
7. Max printing speed: 1400PCS/H
8. Power supply: 110/220V, 60/50Hz 50W
9. Air pressure: 6 Bar
10. Machine size: 910× 550× 1470mm3

11. Machine weight: 120kg
