> Pad printing machine

Hot Embossing plus pad printing machine

Insole hot embossing pad printer
Max temp: 300 °
With embossing and pad printing
Closed ink cup system
Product description: LY-200T-2
Inquiry Now

PRODUCT INTRODUCTION

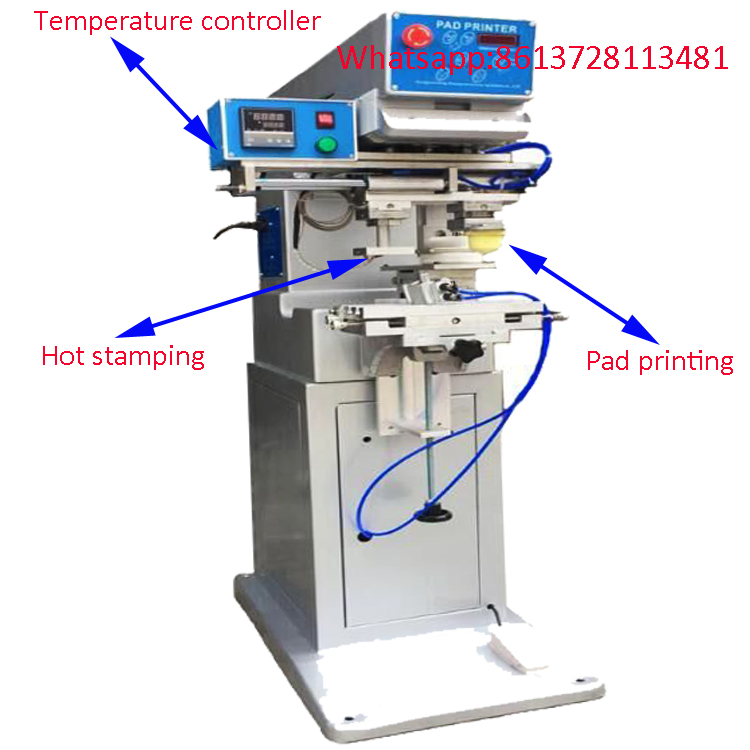

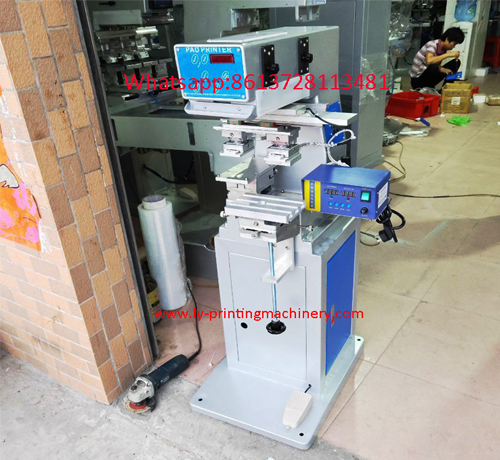

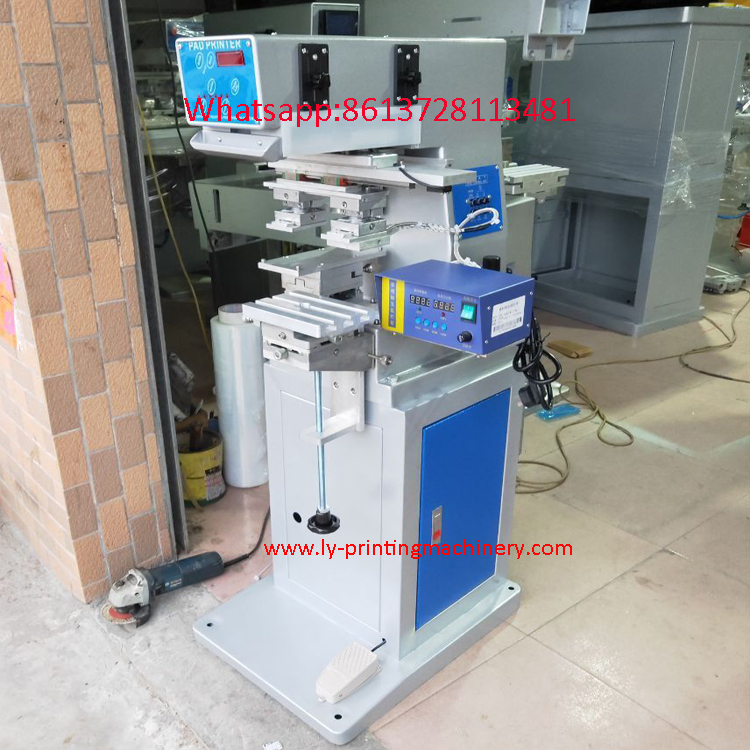

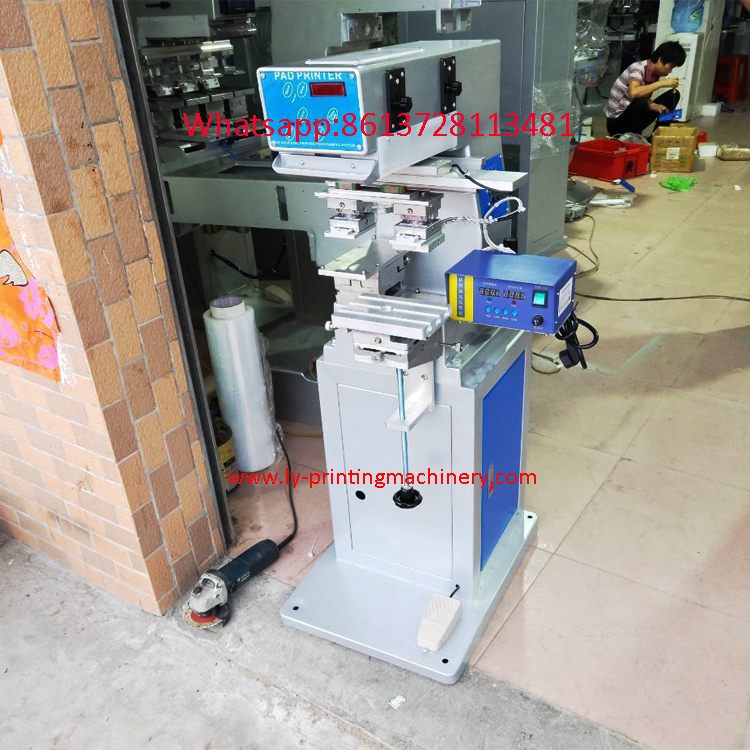

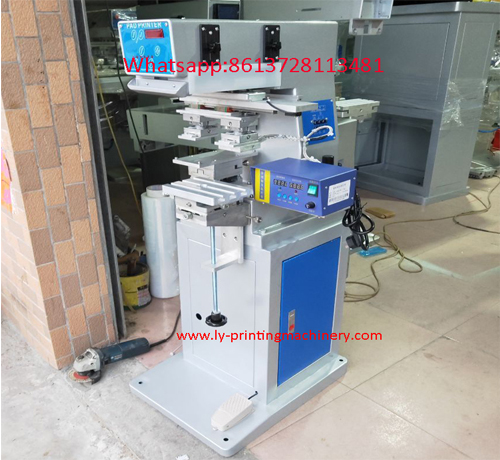

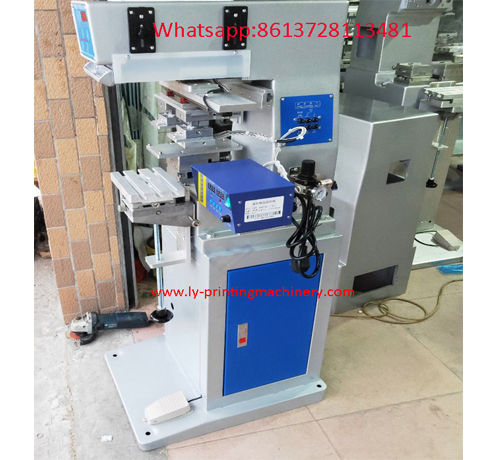

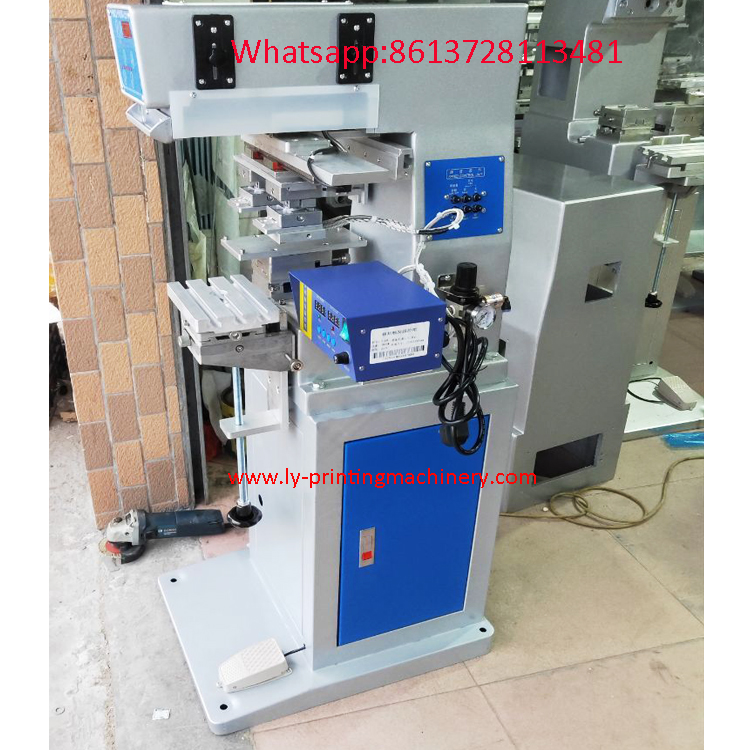

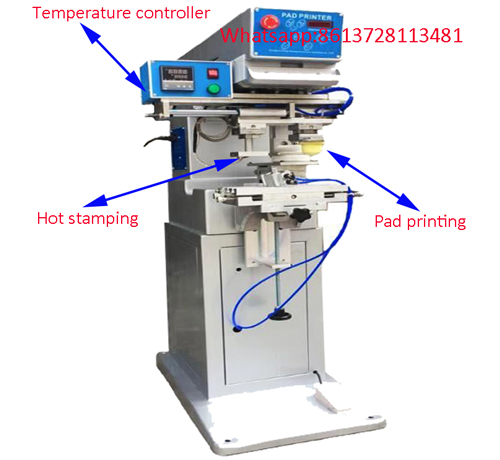

LY-MP1-200CHE is a new type one color closed ink cup pad printing machine with hot embossing system , it is suitable for making deep embossing on the insole first, then print design on the embossing position. so that it can match the requirement from customers, Max temprature: 300°easy operation.

Application: insoles, garments, fabrics, leathers Etc

Parameter
1. Model No:LY-200T-2
2. Operation: Pneumatic
3. Printing Colors: 1
4. Max. Printing area: 80*90mm
5. Plate area: 100*200mm
6. Sealed ink cup diameter: 90 mm
7. Max temprature: 300°
8. With Embossing printing
9. Max printing speed: 1200PCS/H
10. Power supply: 110/220V, 60/50Hz 50W
11. Air pressure:4- 6 Bar
12. Machine size: 910× 550×1470mm3

13. Machine weight: 130kg
