Mini Portable UV Curing Unit

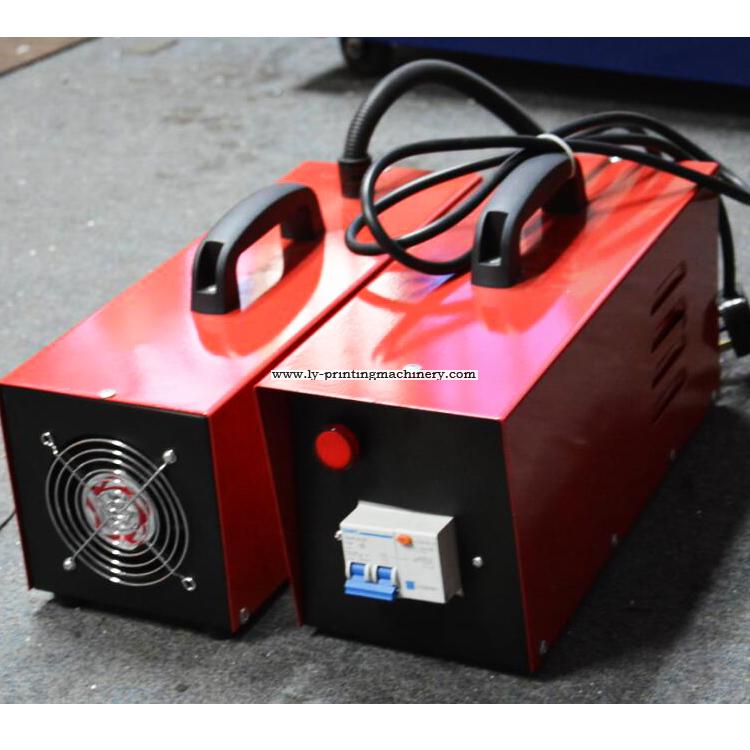

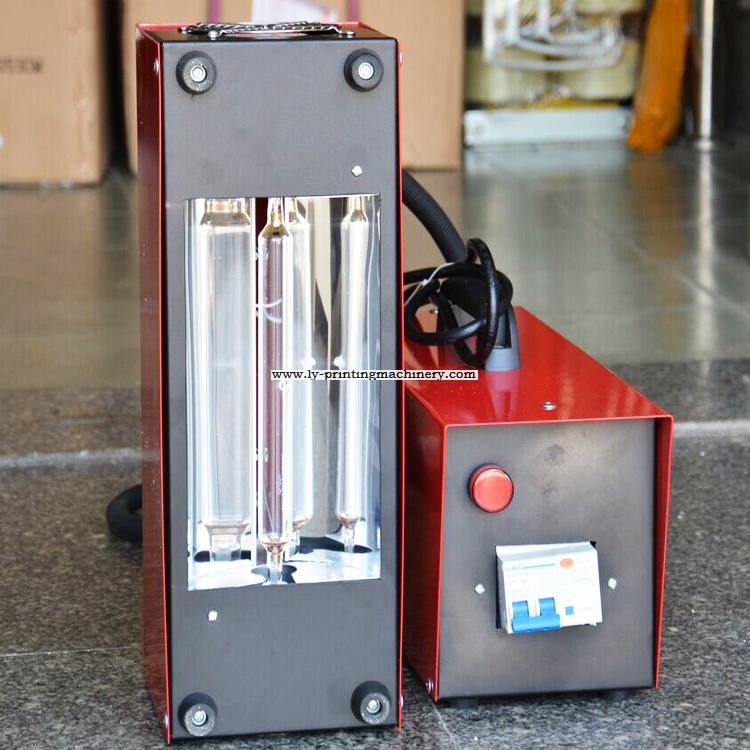

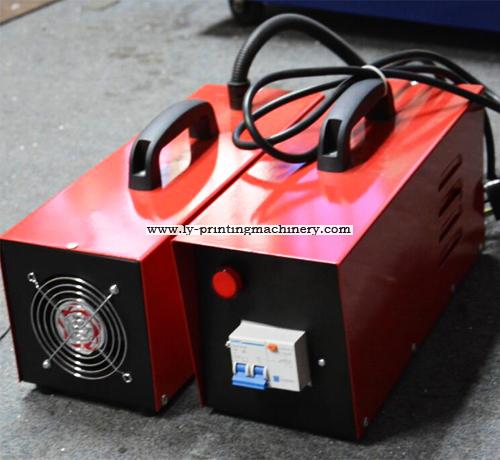

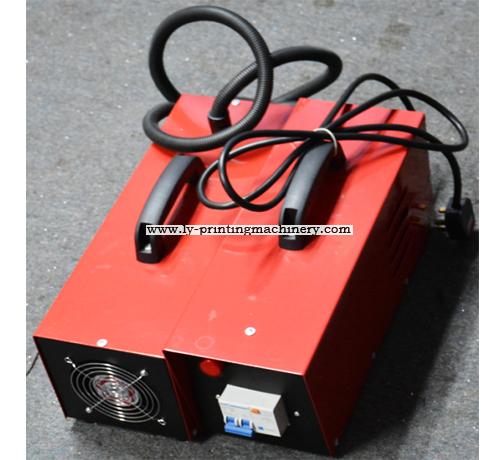

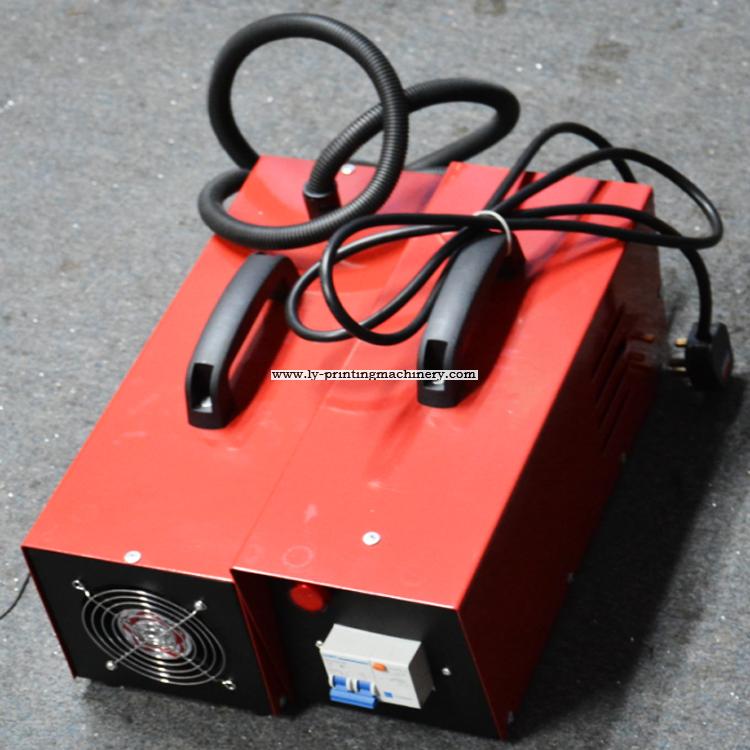

This Portable UV Curing unit is composed of UV lamp box and power control box .
It can widely use to screen printing flame making , large size product UV printing curing ,such as wood,Auto,Paint ETC

Specification :
1.Power: 220V 50Hz
2.UV lamp power: 1000W
3.UV lamp length: 230mm
4.UV acting range: 125mm
5.Wave length :365nm
6.UV Lamp's amount：1PCS

Dimension
UV lamp box : 350L*170W*290H
Power control box: 360L*170W*250H
Net weightL 30KG

Characteristic
1.easy carry,easy processing for different 3D shapes.
2. low consumption of energy, small volume.
3. Imported Reflector which has maximum refraction of UV light. Enhance UV drying effect.
4. Portable, easy to carry, suitable for different place.
