UV tunnel dryer bridge and unloading system

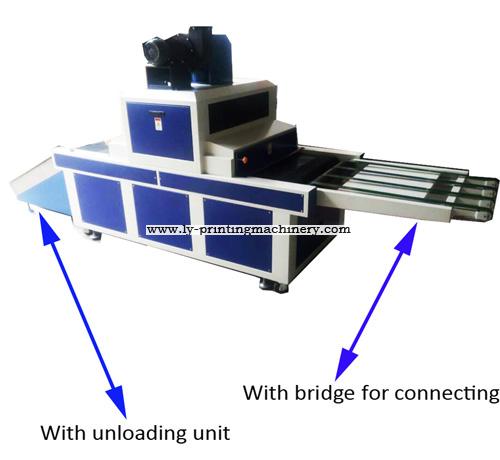

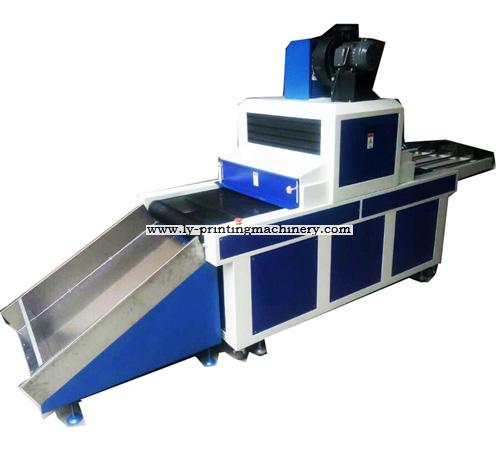

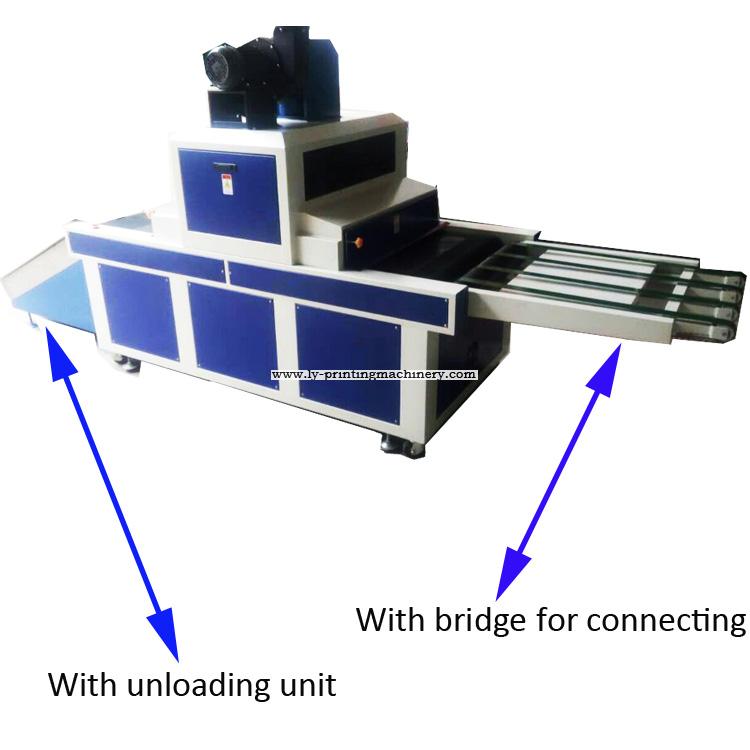

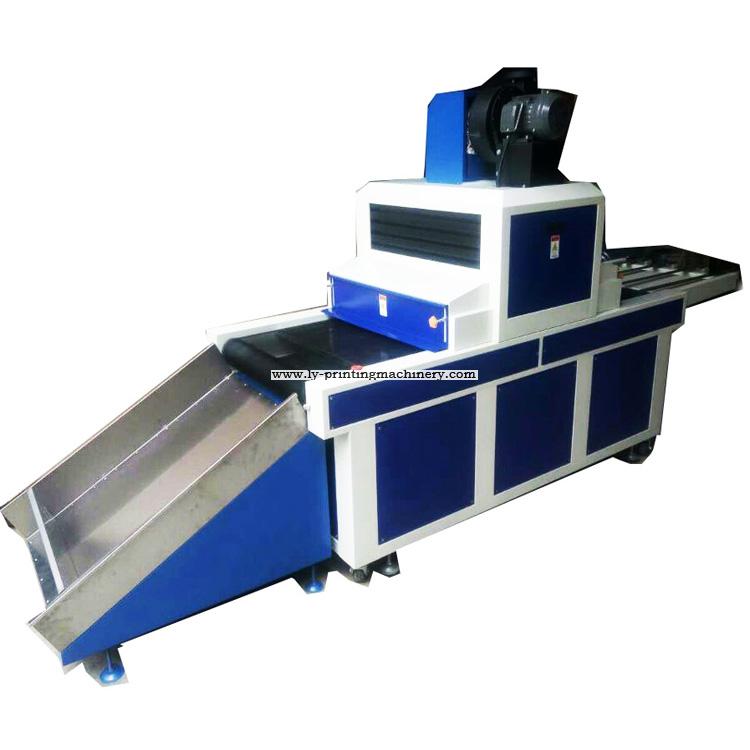

UV tunnel dryer with bridge and unloading system

Parameter
1. Model  NO. LY-700UBL
2. UV Drying  products---700*100*2000mm
3. Conveyor belt size---L2000* W500MM
4. UV Lamp power---2PCS*3KW /380V
5. Total wattage---7.5KW
6. Wind fan wattage---500W/380V
7. motor wattage---1000W/1P/380V
8. Conveyor speed---0~30m/min
9. Speed change ways---Continue
10. UV Machine  Dimension---L*W*H2020*900*1350


UV curing system manufacturers UV curing machineLY-700UBL use for connecting with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc

It applies to the gold and silver cardboard, metal, glass, plastic and other substrates printed wrinkles, scrub, refraction, light crystal stones, colorful powder, convex oil, snow and other special effects, and offset print UV offset ink light cured.

According offset parameters made. Required to provide matching offset spout length, the whole width, height and tilt angle of UV machine

UV curing machine supporting offset printing must meet to UV lamp curing temperature should not exceed 45 ° C, it does not make prints telescopic deformation, curing speed must reach 9000 / hour

Conventional UV lamp of UV curing machine using a high-temperature low-intensity UV light, the light of print solid temperature reaches 70 ° C to 90 ° C, UV curing speed 4000 -5000 / hour, if just increasing UV lamp power to reach the speed of UV curing, UV  curing temperature will rise exponentially, unable to meet the stringent process requirements offset printing,

Dedicated high-speed UV curing machine use of imported low-temperature high-intensity UV lamp which is a high purity using a light emitting electrode, filled with high-purity exact proportion of glowing gas, via technology to produce high-pressure mercury lamp, with small working current, low temperature, high strength performance

This UV lamp than common UV lamp temperature less than 40%, the UV lamp intensity more than 100%
