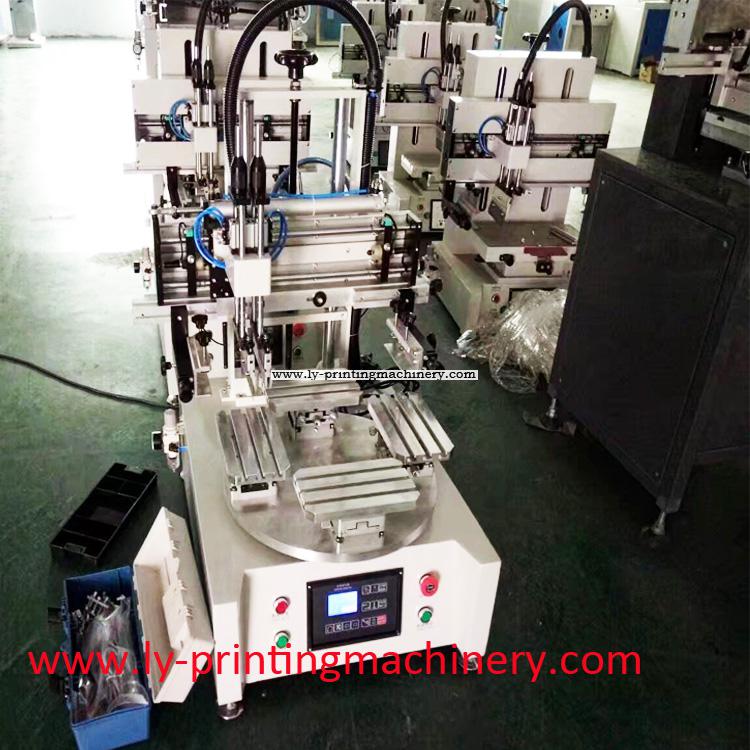

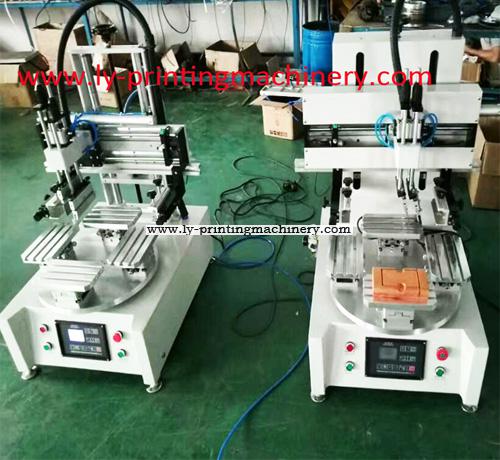

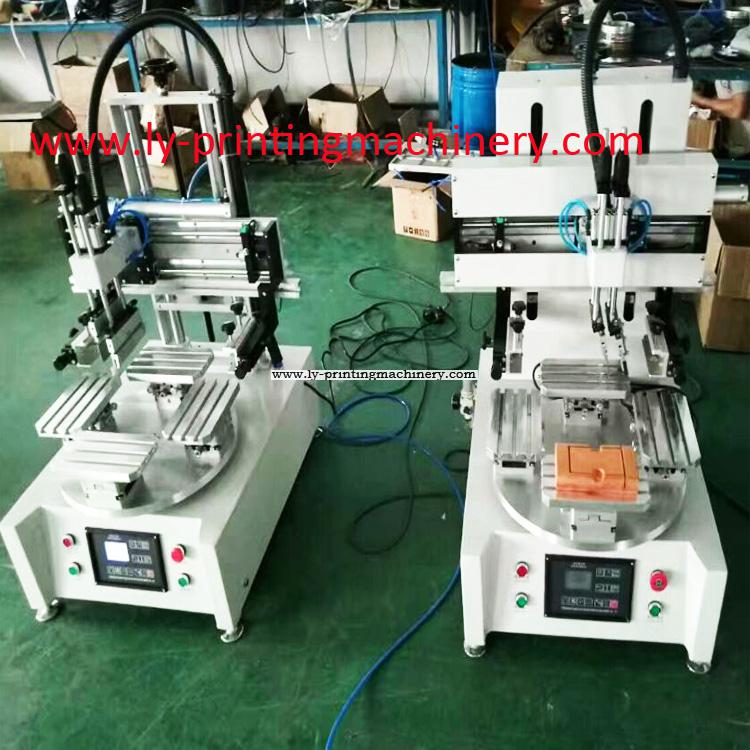

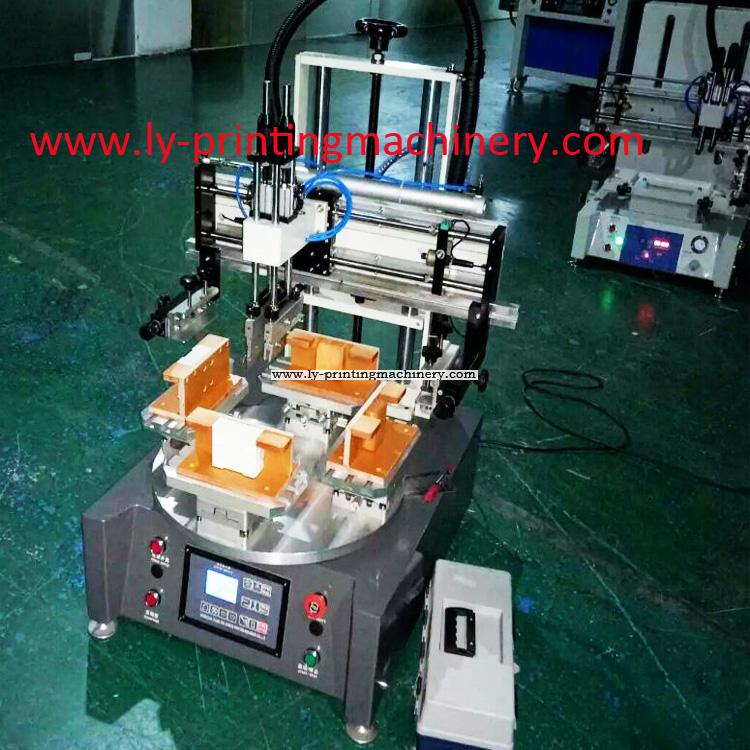

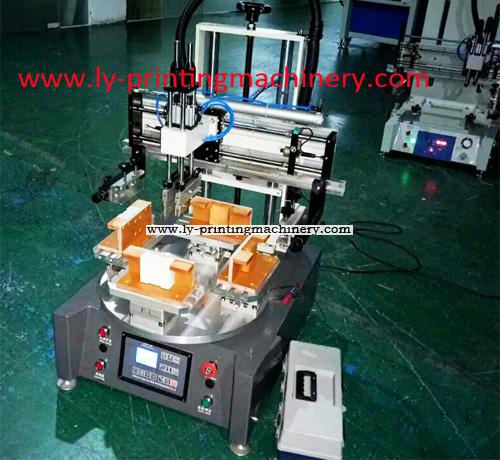

4 Stations tabletop silk screen printer

4 Stations tabletop silk screen printer

Specifications:

1.Model number:LY-2030S4
2.Max printing area: 100*200mm;
3.Worktable size: 130*230mm;
4.Transverse stroke: 400mm;
5.Vertical stroke: 100mm;
6.Rotray table diameter: 450mm;
7.Max height of product: 50mm;
8.Rotary table workstations: 2PCS 4PCS
9.Printing speed:1500PCS/Hr
10.Machine size:80*74*110cm
11.Gross weight:150kg

Application:
This is tabletop screen printing machine, special design for high speedd, high precison screen printing. It adopted Mechanical from cam separator TAIWAN to make roraty table. It can rotate quickly without shock. You can upload and download products when printing, that can be reduce the stop time of machine. The max printing speed can be up to 1500pcs/hr. It’s very suitable for big quantity screen printing.

Function:
1.IC with touch panel program action programming;
2.Aluminum casting body with metal coating;
3.Auto 4-digit counter, calculate printing quantity;
4.Double pillar up/dowm struture, making sure precision and stable;
5. ransverse stroke can be adjusted, using Taiwan sensor to limit;
6.Squeegee, flood bar can set as any angle;
7.Squeegee constant pressure, keeping printing pressure stable;
8.T-slot worktable, convenient to install jig;
9.Installing CEC buffer, making sure printing stable;
10.Action mode: Auto semi-auto manual;
11.Start up: Panel pedal;
12.Squeegee pressure control: Pressure regulating valve;
13.ertical driven: Pneumatic;

14.Transverse driven: Electronic;
