Product description: LY-4A
Inquiry Now

PRODUCT INTRODUCTION

Description

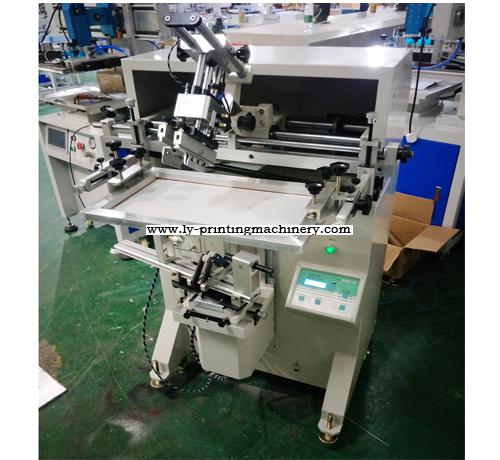

Multi functional Cylindrical silk screen printing machine LY-4A

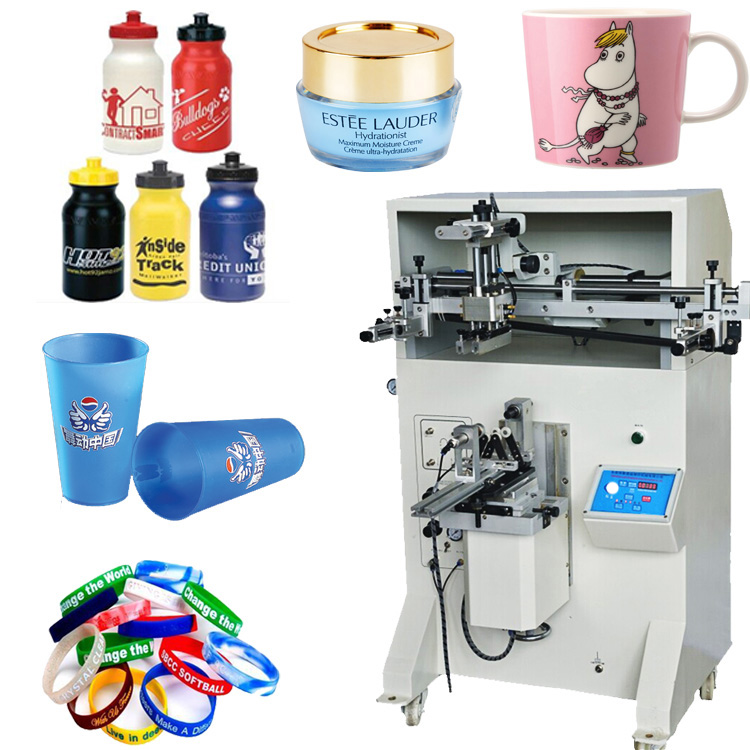

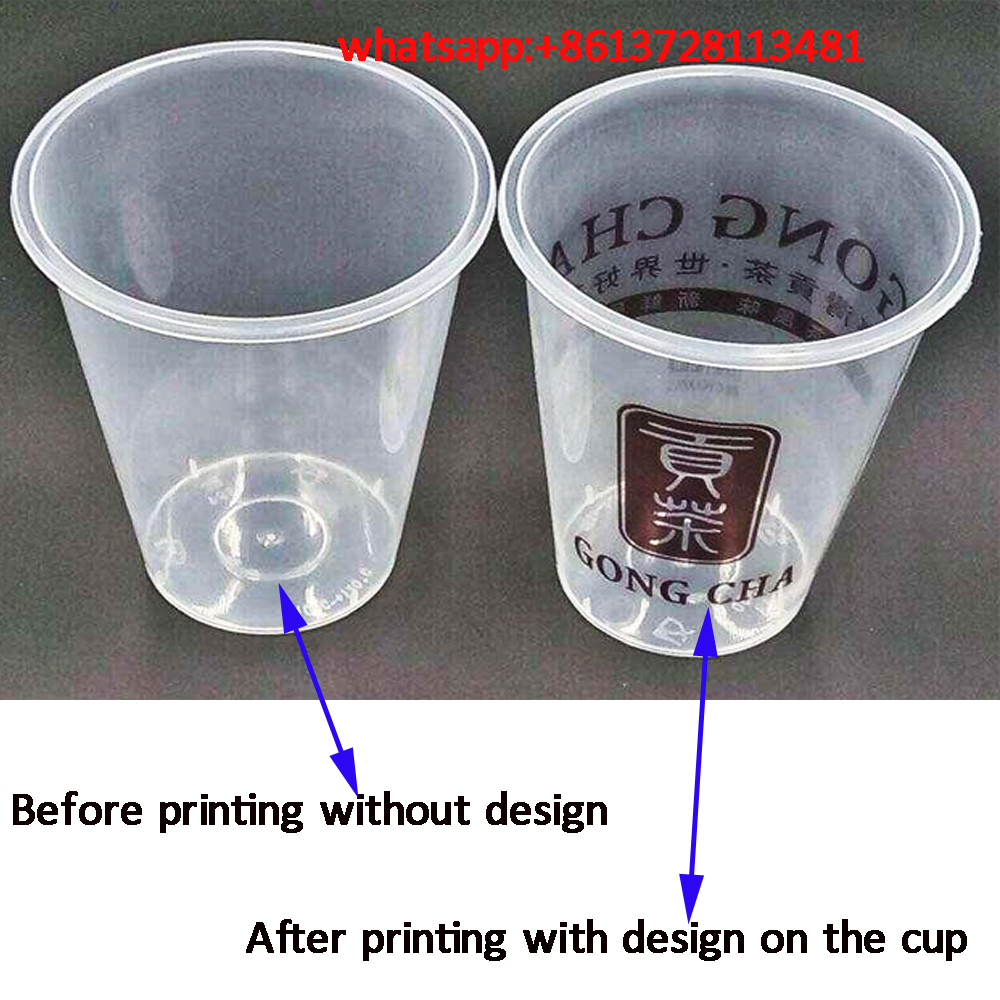

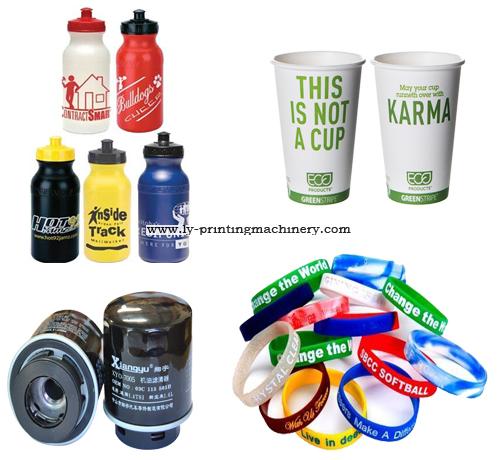

This machine is very very popular is our factory, Because LY-4A can be printed 360 degree (full circle)on round items , Such as bottle, Cup ,Mug,Jar,bowl ,pen,pot,Oil filter ,wristband ,cap ,tube ETC.

Also this machine can be printed flat item ,conical shape and oval products
Change the ink and screen plate, it can print 1-8 color,Easy operation,High printing quality.

LY-4A Max printing diameter :120mm (full circle printing),LY-3A Max printing diameter :82mm

Advantages
1. Fully automatic control by microcomputer & easy handling
2. Four figures automatic counter
3. Round printing function (taper section)
4. Automaticoil scrabbing, oil return and lifting table
5. Adujustability of routs and speeds
6. Self-poise scraper to balance printing pressure
7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
8. High precision and easy & quick adjustability

Specifications:

1. Model number:LY-4A
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ120mm
4. (Round)Max printing arc length: L: 370mm
5.(Oblate)Max printing diameter: 500mm
6. (Flat) Max printing area: 320*220mm
7. Printing Speed: 1700 PC/H
8. Machine weight: 190kg

9.Machine size:L900xW890xH1300mm

10.Packing weight :210Kg

11Packing size:L1000xW960xH1400mm
12.Air pressure: 0.5Mpa
13.Voltage power: 220V/ 50HZ or 110V/60HZ

14.Cylinder is Festo brand from Germany

1. Model number: LY-3A
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ82mm
4. (Round)Max printing arc length: L: 270mm
5: (oblate)Max printing diameter: 420mm
6.(flat) Max printing area: 260*; 220mm
7. Printing Speed: 2100 PC/H

8. Machine weight: 138kg

9.Machine size:L810xW800xH1200mm

10.Packing weight :155Kg

11Packing size:L880xW860xH1300mm
12.Air pressure: 0.5Mpa
13.Voltage power: 220V/ 50HZ or 110V/60HZ

14.Cylinder is Festo brand from Germany
