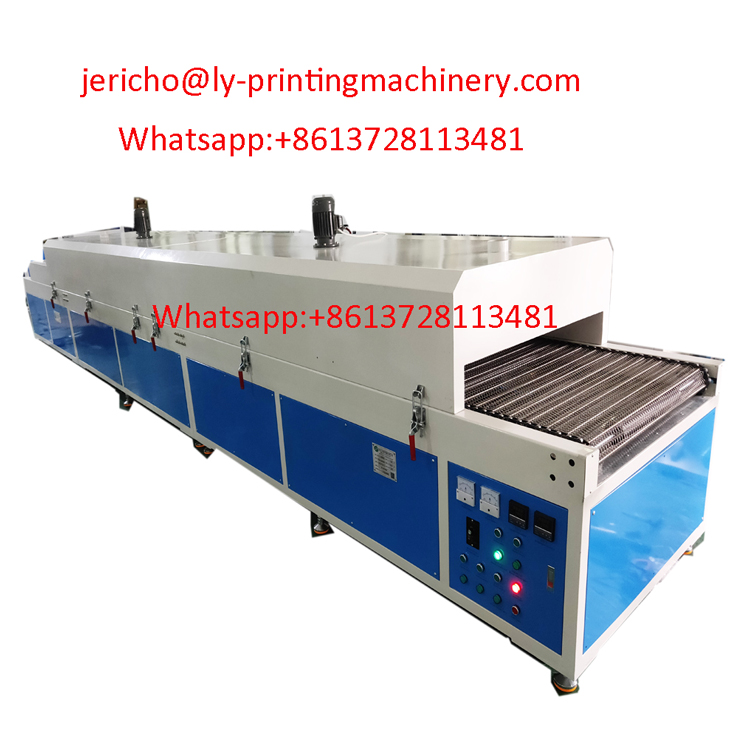

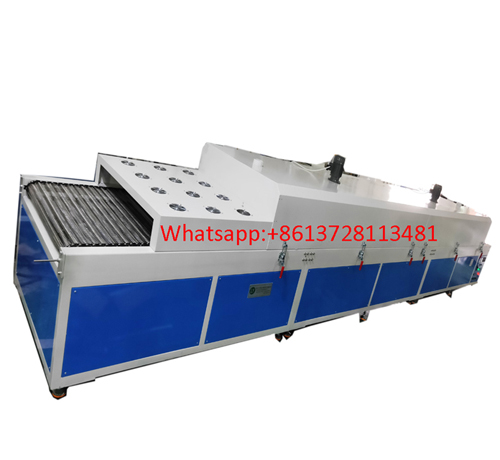

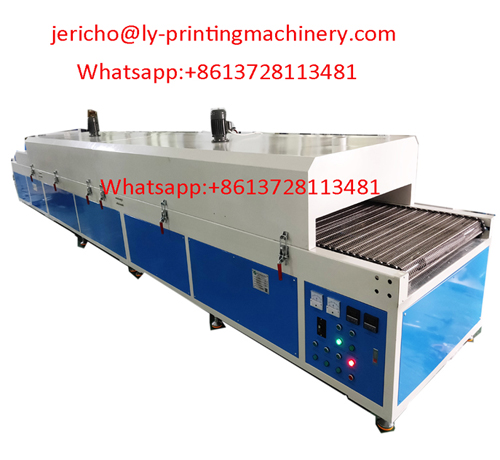

Customized 8M IR tunnel dryer stainless steel conveyor LY-8000

Heating area: 6M
Heating width : 1M
Stepless(variable)
Conveyor material:stainless steel
Product description: LY-8000
Inquiry Now

PRODUCT INTRODUCTION

Description
1.IR drying tunnel can drying all kinds of ink ( except UV ink),such as Plastisol ink, thermosetting ink,screen printing ink,pad printing ink,plastic ink,glass ink ETC.

2.It can drying variety of material ,such as fabric,plastic,matel,glass,wood,silicone Etc

3.Our IR drying tunnel could be customized, such as drying size , maximum temparature conveyor material stainless steel Teflon and other requirment, it just depend on your requirment.
Ensuring good drying quality, Our IR tunnel conveyor is adopted high-temperature resistant Teflon material, Conveyor Speed adjustment is stepless(variable)

Feature

Customized 8M IR tunneldryer stainless steel conveyor LY-8000, it with stainless steel conveyor ,it can used for drying heavy screen printing products and smallscreen printing products both ,easy operation,heating temperature can be increased 250 degree ,fast drying speed.

1.it has air circulation system via 2 fans, With exhaust ducting easy operation ,long life.
2. Famous brand motor is imported, Conveyor sprocket is adopted carbon chain standard sprocket, the main cold-drawn steel car system.
3.Microcomputer intelligent temperature control system, temperature than the general use of temperature control machine is more reliable and stable, the temperature can be segmented control.
4. Imported cotton insulation, thermal insulation effect is excellent, energy saving than the ordinary oven to save 30% electricity.
5.With sheet metal to under frame area,so that it can be dust-proof, safe, beautiful, hanging buckle structure installation, easy maintenance and combination.
6.Tunnel body is made by angle iron bar production, sub-combination of design structure, easy removal and convenient installation.

7.Oven internal lines using high-temperature sets of protection, clear and neat to facilitate maintenance.

Technical parameter

1.Model number:LY-8000
2.Conveyor length :8m, drying area :6m
3.Conveyor width:1000mm, entrance mouth :15cm
4.Entry end length:500mm,Exit end length:1500mm
5.Machine size: (L)8000x(W)1080x(H)1600mm
6.Working power: AC 380V 50HZ
7.Temperature adjustment: 0-250 Centigrade
8.Belt speed adustment: 0-10M/MIN
9.Machine weight: 1650 Kg
10.Curing time is over 5 min when use Slilicone

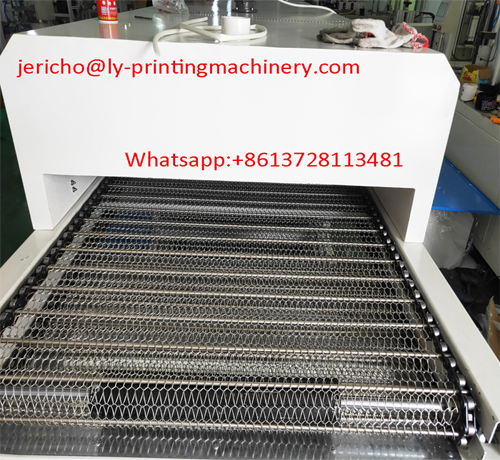

11.Conveyor material: Stainless steel
12.Conveyor Speed adjustment is stepless(variable)

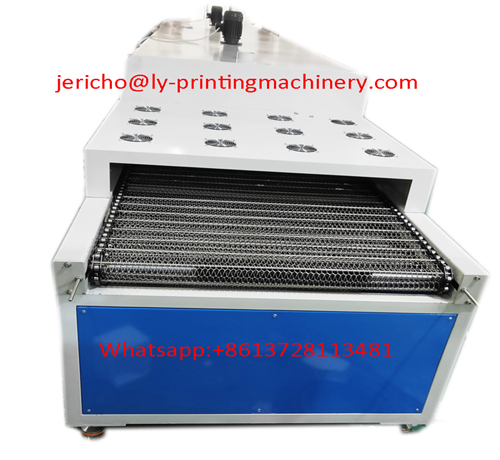

13.With cooling system
14.With exhaust ducting
15.With Certificate
