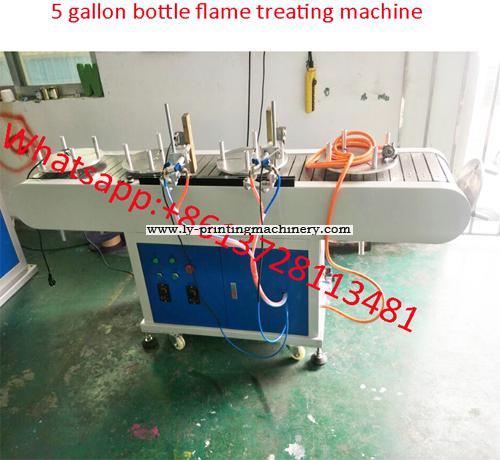

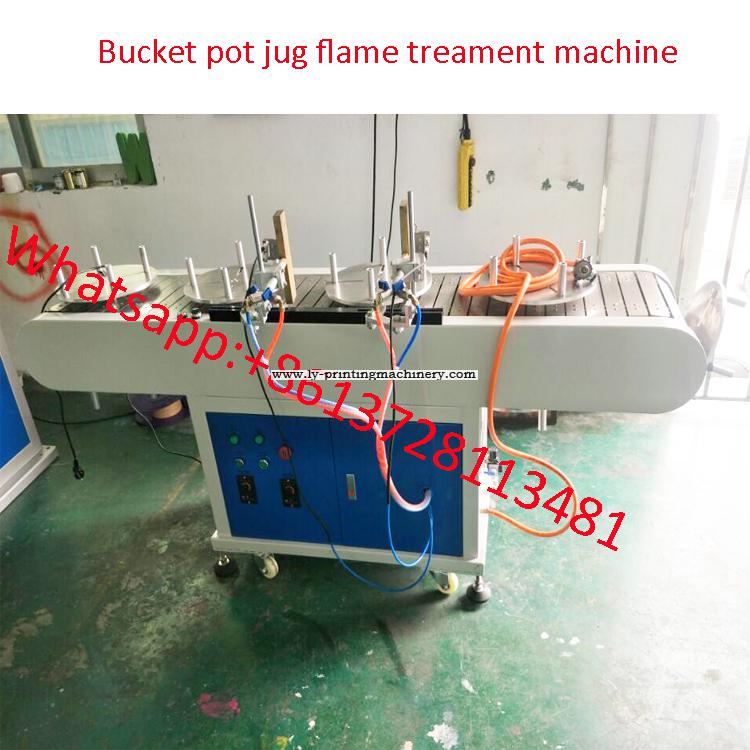

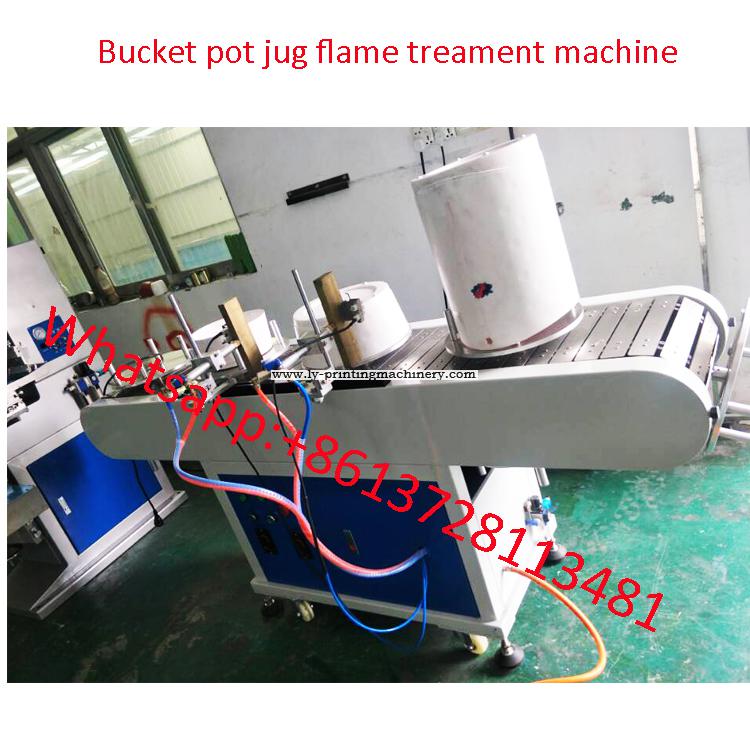

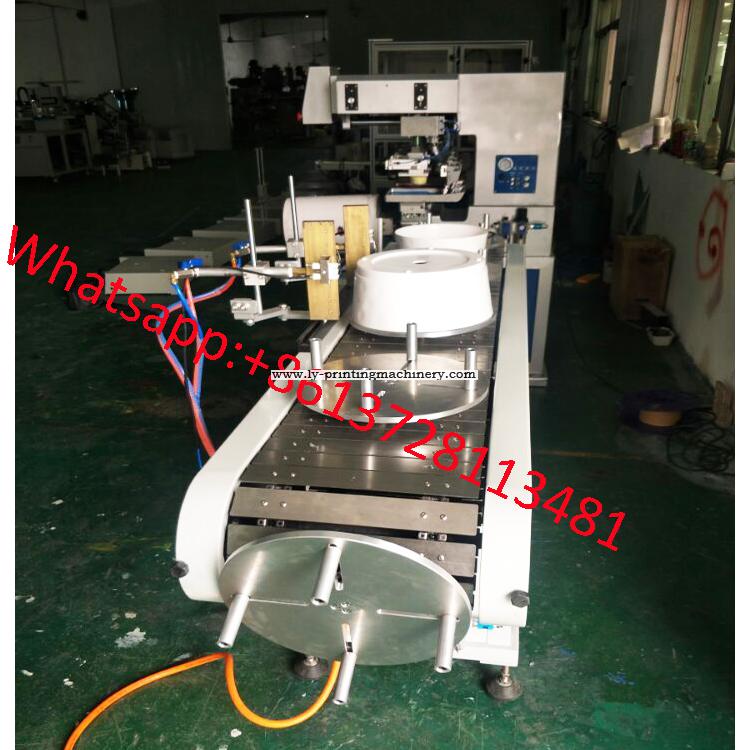

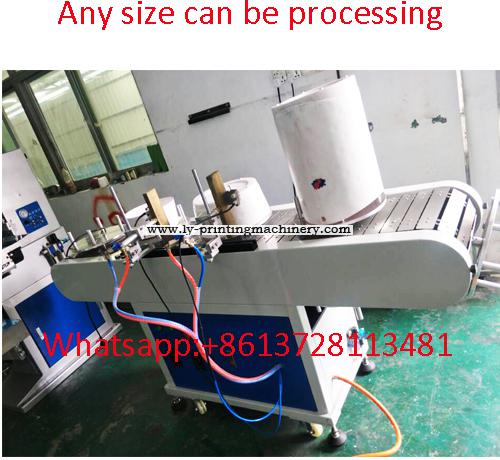

Bucket jug pot flame treating machine LY-FT2

Cylinder bottles made by PP PE fit

Advantages:
1.Mainly used for the surface pretreatment of PE and PP plastic products.
2.Micro motor imported from Japan, stepless speed timing mode is adequate for different workpiece requirement.
3.The machine is two sides equipped with baffle-boards to improve the heat efficiency.
4.Advanced gushing nozzle is design generates a good combustion result, it is a product that saves energy.
5.According to the size of your product that is to be printed, replace the taper support to meet the different requirement of workpiece

There are two speed control with the flame treatment machine
1: One speed controller is for adjust the conveyor speed
2: The other speed controller is for adjusting the rotating speed in the flame treatment area

Specifications:

1. Model：LY-FT2

2.Flame Gun Height :Φ300mm
3.Object( bucket) height:410mm
4.Air pressure: 6 bar
5.Conveyor size: 380x2500mm

6.Max treating height :295mm
7.Power: 220V 50--60HZ
8.Conveyor speed: 1500PCS/Hr
9.Burning Gas:LPG gas
10.Machine size:2800x1500x950mm
11.Machine weight: 255KG
