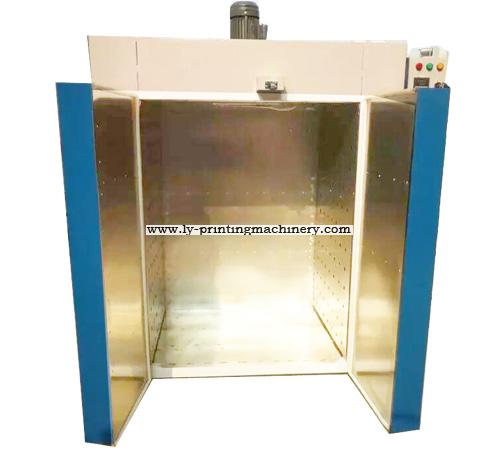

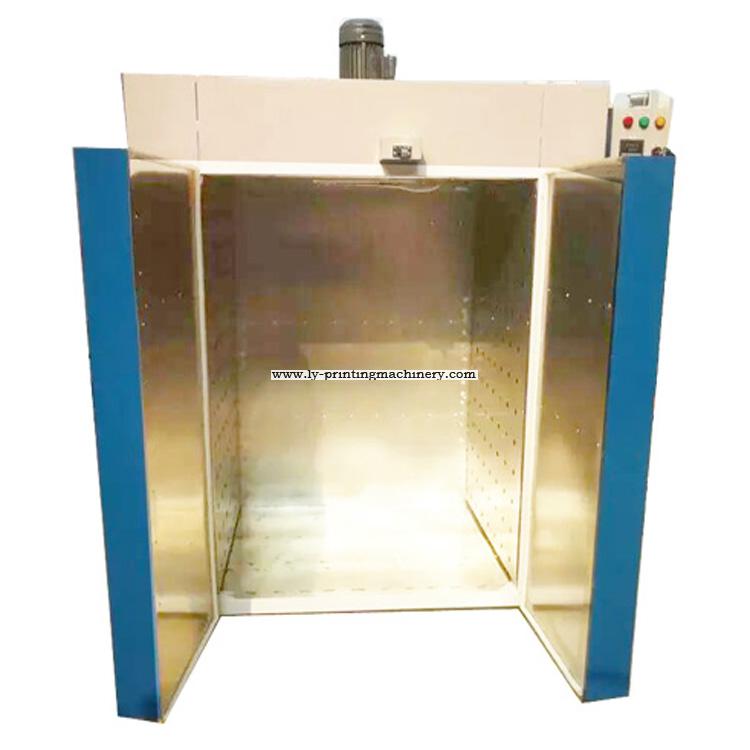

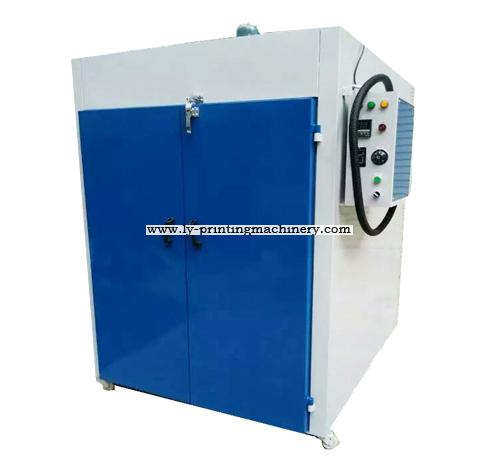

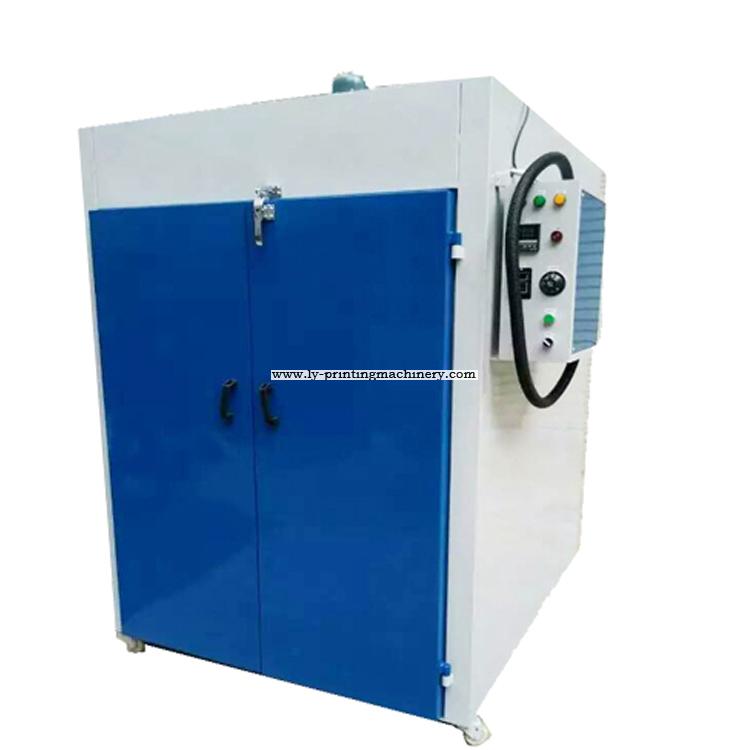

Industrial High Temperature Drying Oven

Industrial High Temperature Drying Oven

Features:
1: The cabinet is made of composite materials, stainless steel and galvanized inner, filled with insulation materials with good insulation effect.
2: Equipped with imported insulation materials, high accurate temperature control and wide temperature ranges
3: Equipped with exhaust tunnel for easy eliminating the air inside the cabinet.
4: The good design hot air circulation system for assuring substrate being dried and heated evenly.
5: Equipped with ultra-high-temperature alarming system, with safety explosion -proof door on the backend, beyond the standard pressure will bounce automatically

Parameter:

1 Model No.:LY-D1
2: Voltate : 380 V, 50Hz;
3 . Power: 14Kw
4: Max temperature 250.C;
5: Furnace temperature:+_5.C;
6: Heating method for heat conduction
7: Machine inner size:800mm(deep)×1200mm(width)×1500mm (height)
8: Machine Outter Dimension:1050×1550×2200mm
9.Packing Size:L1840*W1020*H2110mm
10:Net Weight:320KG
11.Gross Weight:413KG
11.Gross Weight:463KG
