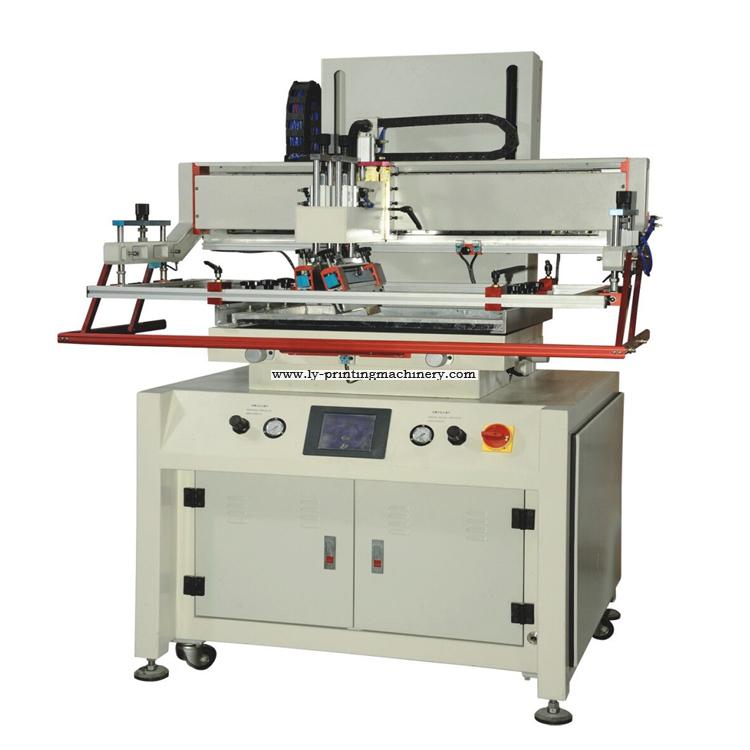

Plane screen printing machine LY-5070
- Flat bed screen printing machine
- Flat bed screen printing machine
- Flat bed screen printing machine
- Product description: LY-5070
PRODUCT INTRODUCTION
Describtion
screen printing machine LY-5070 Suitable for printing on various materials such as wood, plastic, metal, glass, leather, cosmetics, gifts, or ceramic etc.Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc...
Printing objects such as decal, cards, transfer paper, pester, sticker, PVC/PET/PC films, metal nameplate etc which are made of non-deforming materials
Feature:
1. Advanced computerized system control
2. Built-in LED digital counter
3. Light-weight, strong aluminum cast machine frame
4. Can be operated in manual and semi-auto mode to suit different worker's skill level.
5. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
6. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
Specifications：
Technical Parameter: LY-5070
1.Workbench area:600mm*800mm
2.Max Printing Area:500mm*700mm
3.Max Screen Size:700mm*900mm
4.Tickness of Material: ≦50mm
5.Workbench Horizontal Precision: ±0.05
6.Overcolor Print Precision: ±0.01
7.Printing Pressure: 4.0-8.Kgf/C㎡
8.Operation Air Pressure: 0.3Mpa-0.5Mpa
9.Source Power:2.3KW
10.Rated Voltage:380V
11.Printing Speed:700 PCS/Hr
12.Dimension(L*W*H):1250*1000*1850mm
13.Machine Weight:550KG
14Packing Size:1400*1080*1800mm
screen printing machine LY-5070 Suitable for printing on various materials such as wood, plastic, metal, glass, leather, cosmetics, gifts, or ceramic etc.Be widely used in electronic industry, advertising, packing & printing, sports equipment, toy, stationery, gifts, industrial arts fields etc...
Printing objects such as decal, cards, transfer paper, pester, sticker, PVC/PET/PC films, metal nameplate etc which are made of non-deforming materials
Feature:
1. Advanced computerized system control
2. Built-in LED digital counter
3. Light-weight, strong aluminum cast machine frame
4. Can be operated in manual and semi-auto mode to suit different worker's skill level.
5. Horizontal movement of screen frame can be adjusted to fit your various printing needs.
6. Squeegee/flood bar depth, pressure, speed, leveling, and stroke etc., are all adjustable to fit your various printing needs.
Specifications：
Technical Parameter: LY-5070
1.Workbench area:600mm*800mm
2.Max Printing Area:500mm*700mm
3.Max Screen Size:700mm*900mm
4.Tickness of Material: ≦50mm
5.Workbench Horizontal Precision: ±0.05
6.Overcolor Print Precision: ±0.01
7.Printing Pressure: 4.0-8.Kgf/C㎡
8.Operation Air Pressure: 0.3Mpa-0.5Mpa
9.Source Power:2.3KW
10.Rated Voltage:380V
11.Printing Speed:700 PCS/Hr
12.Dimension(L*W*H):1250*1000*1850mm
13.Machine Weight:550KG
14Packing Size:1400*1080*1800mm
