Hinge double color big Painting Machine

Our auotmatic spray painting machine can paint all body on plastic, wood, metal rubber materials ,such as toy,shoes,mobile phone,cup ,bottle , furniture,household appliances,small parts ,panel ETC, any shape ,anywhere ,any color can be painting, It can turn 360 degree by X/Y/Z/U/V /A Six axis , with PLC control, easy operation, it can be saved 9999 different files, easy operation, high painting quality.

LY-AT17 is new big area 2 color hinge automatic spray painting machine , Max painting area :520x490x200mm, It can paint 2 color at the same time, if paint small parts,it can paint many piece one time, so that improve the capacities, PLC operation ,double guns.

Specifications

1. Model No.: LY-AT17
2.Mahcine size: L 18300xW1350xH1850mm
3.Mahcine weight:290KG
4.Voltage : 220V/ 50HZ , total power :1000W
5.Air pressure: 0.4-0.6Mpa
6.Six - axis system: X,Y,Z,U,A,B
7.Spray Capacity: 350--2000PCS/Hr
8.Spray size: 520mmx490mmx200x360°
9.Machine body: adopt stainless steel
10.Spray positon: full body ,everywhere can be painted
11.Spray gun: adopt environmental high qulity double guns
12.With automatic cleaning mould system machine
13. Full Sealed environmental protection working, no smell
14. Easy operation ,PLC control system,safe working.

15.With CE certificate

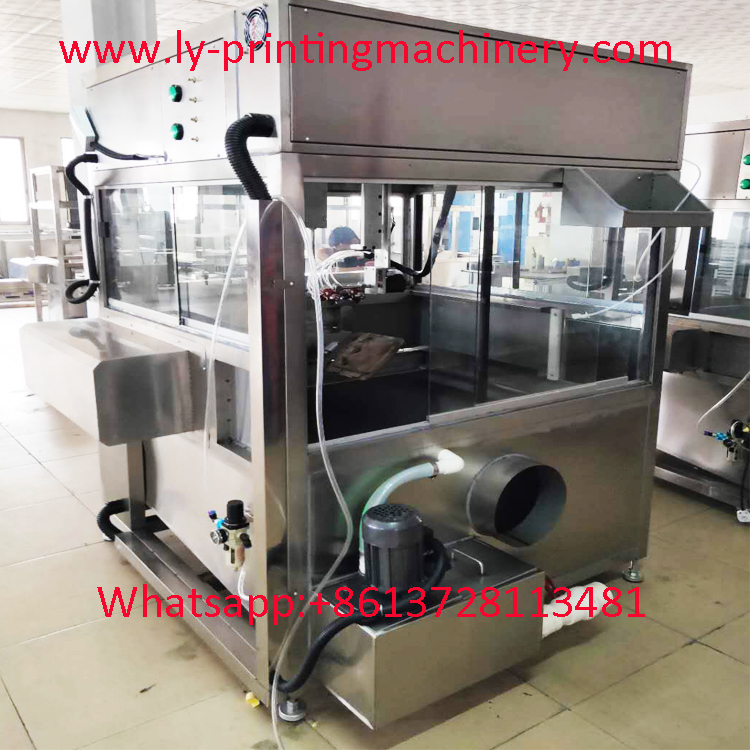

Automatic cleaning mould system machine

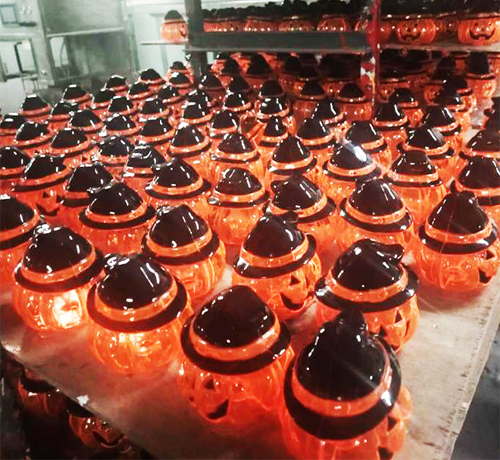

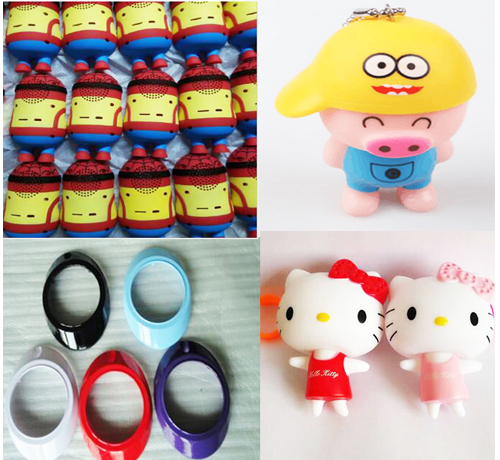

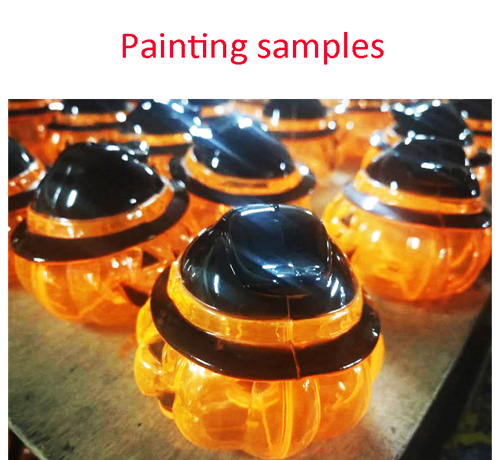

Spray painting samples
