360 degree Shoe 4 color pad printer

Shoe 4 color pad printer
360 degree printing
Full Servo motor running
Sole insole shoe printing machine
Product description: LY-MP4-S300JC
Inquiry Now

PRODUCT INTRODUCTION

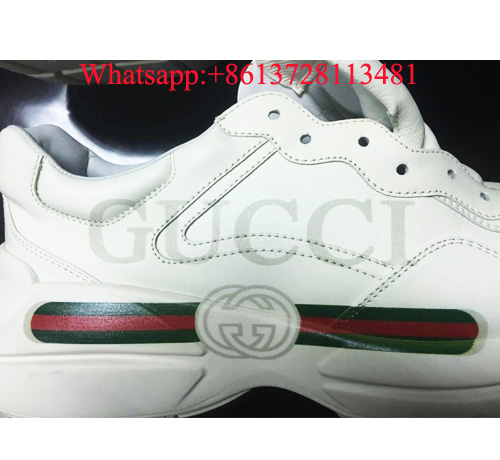

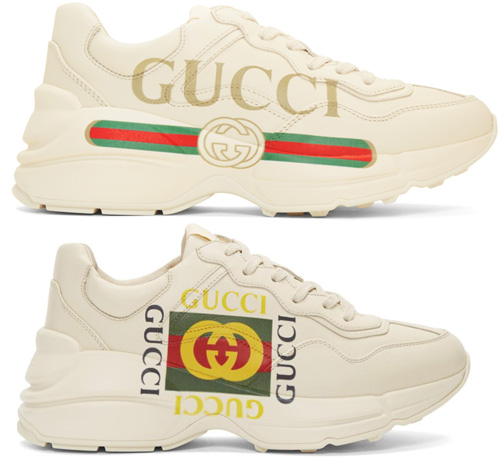

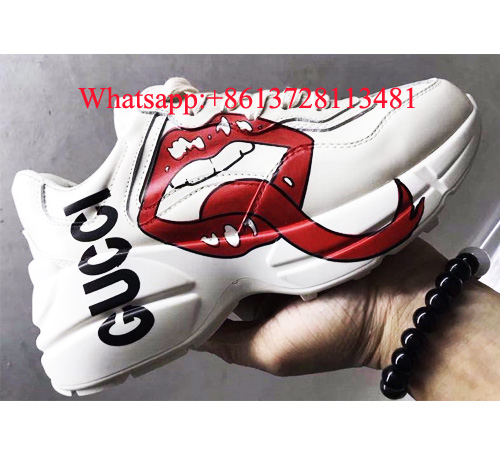

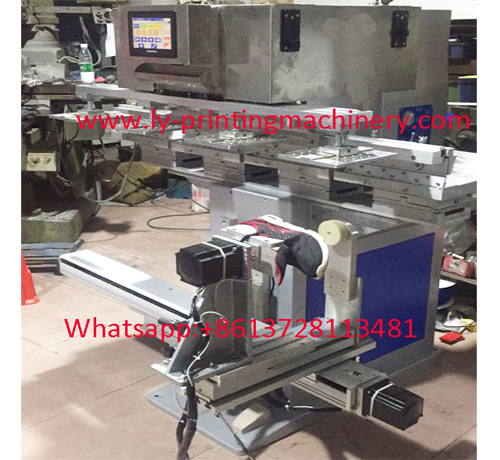

Shoes, footwears ,soles ,outsoles ,insoles full Servo system 4 color big size pad printing machine LY-MP4-S300JC

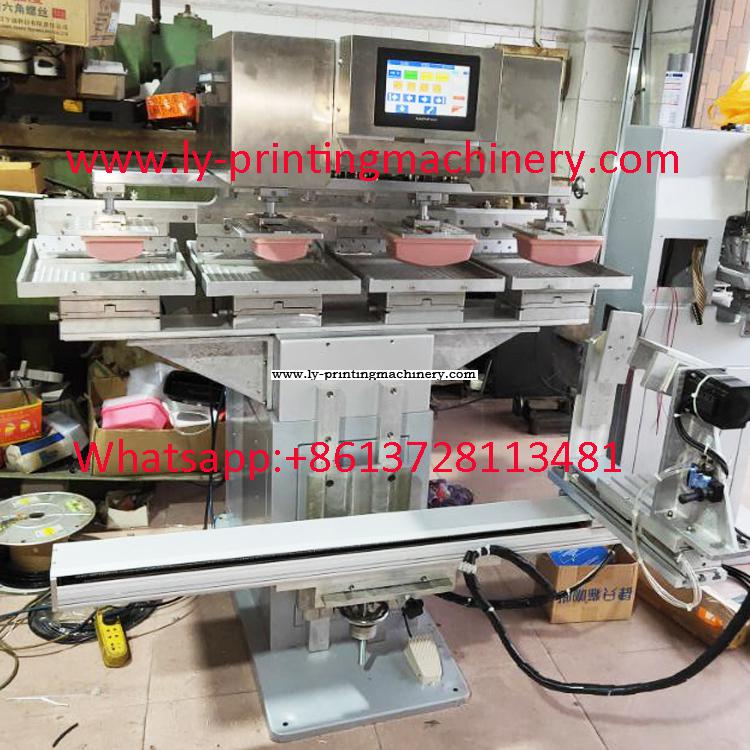

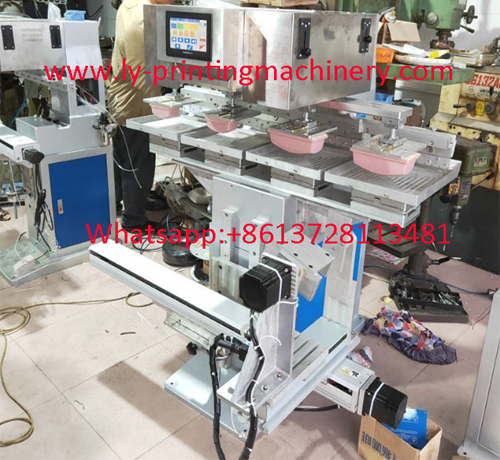

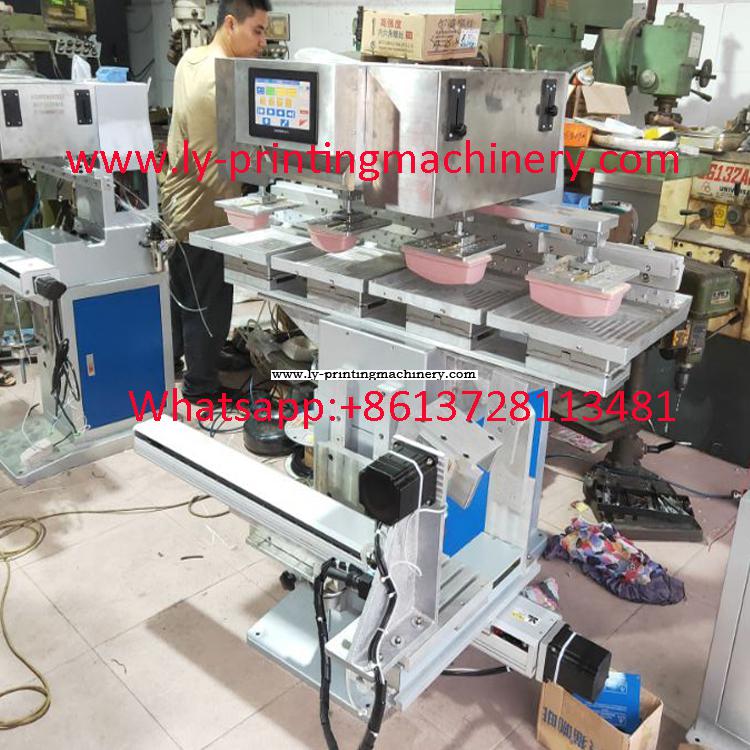

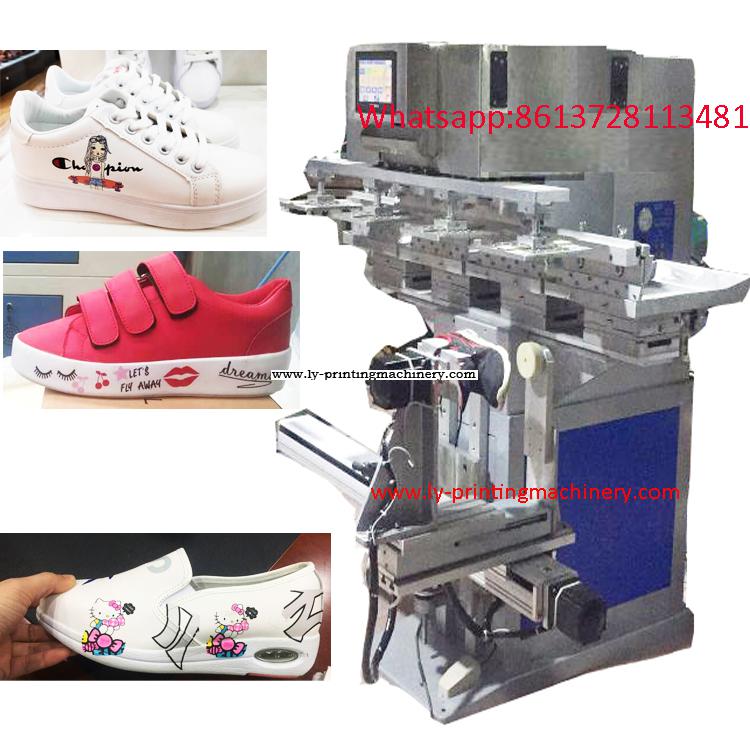

LY-MP4-S300JC is a big customized 4 color pad printing machine with Full Servo motor running .

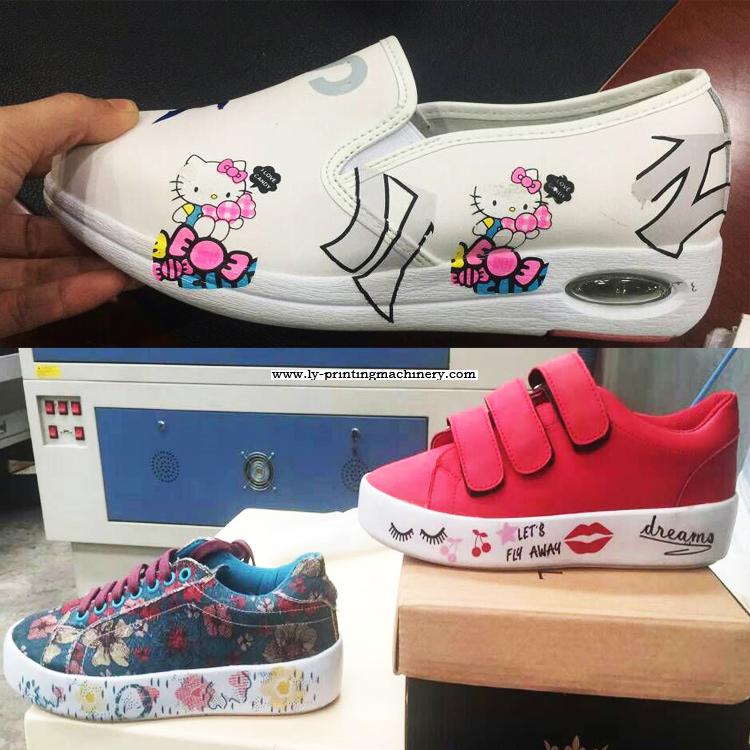

This machine Max printing area : 250 * 260 mm , It can be printed shoes soles with 360 degree, 180 degree, 90 degree,and any other position,corner etc...

It can be printed Two sides with 2 color at the same time, printing 4 color on 1 side by one time, It is adopted Full Servo working , so that the printing speed more faster than pneumatic，more stable .

With PLC operation , it can be programming any command by yourself.

Specifications:

1. Model No: LY-MP4-S300JC
2. Operation: Servo motor
3. Printing Colors: 4
4. Plate area: 300*300mm
5. Printing area; 250 * 260 mm
6. Max printing speed: 400PCS/H
7. Wattage: 220V/ 50Hz:
8. Air pressure: 0.4-0.6Mpa
9. Machine size(LxWxH):1500×980×1580mm

10. Machine weight: 550kg
