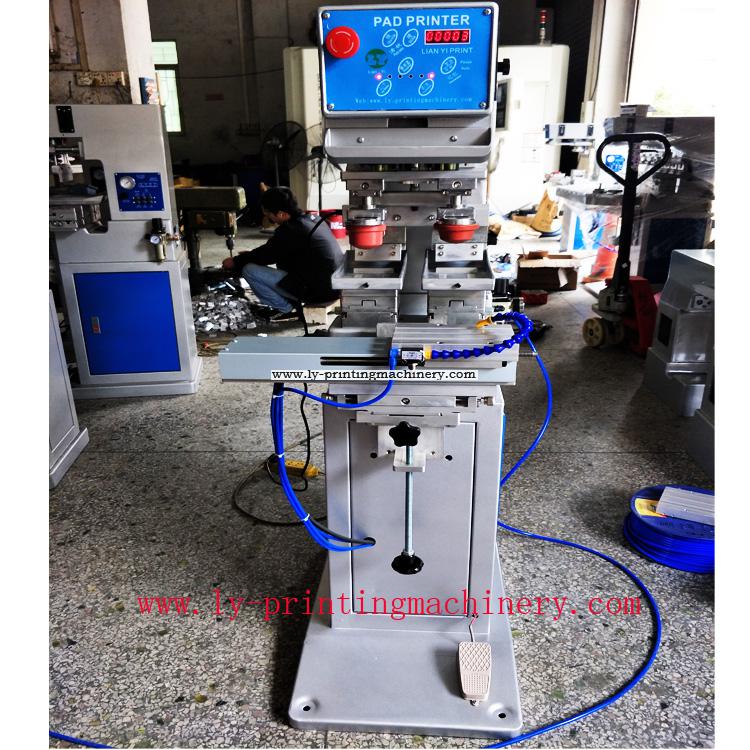

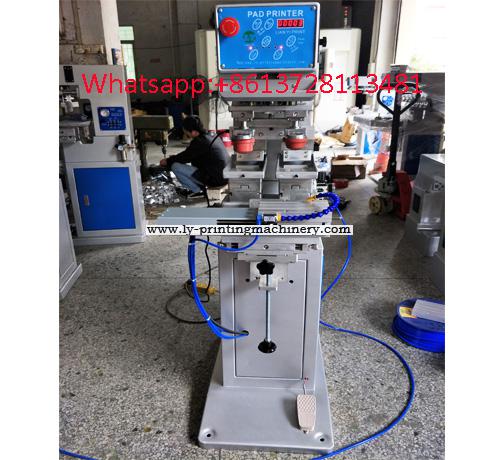

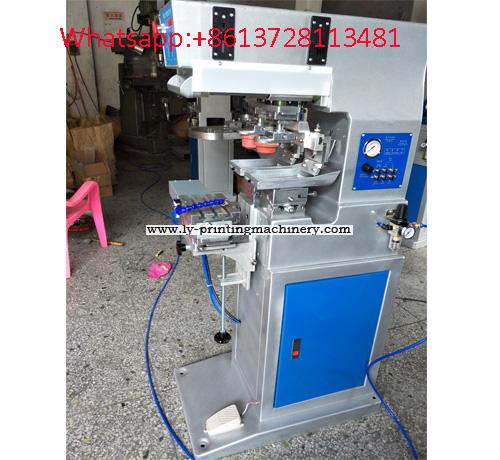

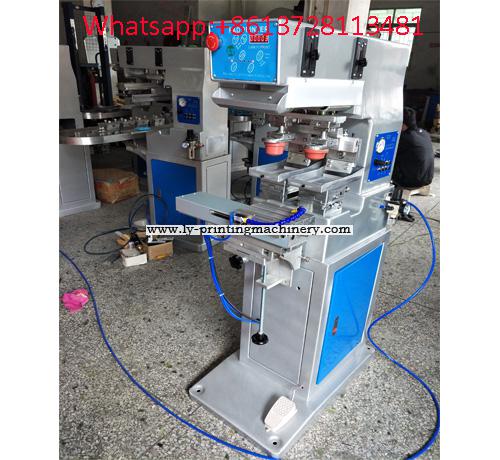

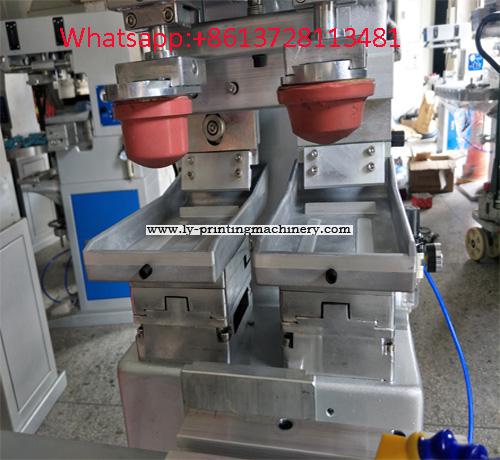

2 color ink tray pad printer with shuttle

Description:

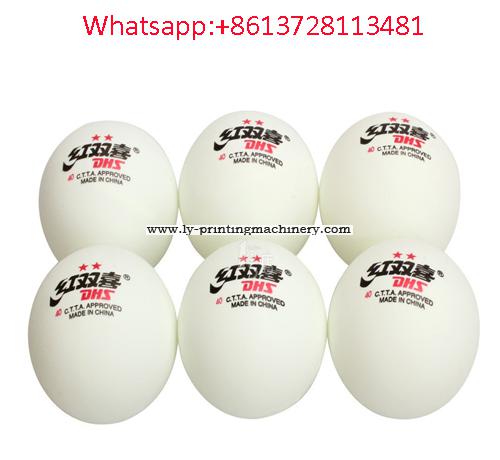

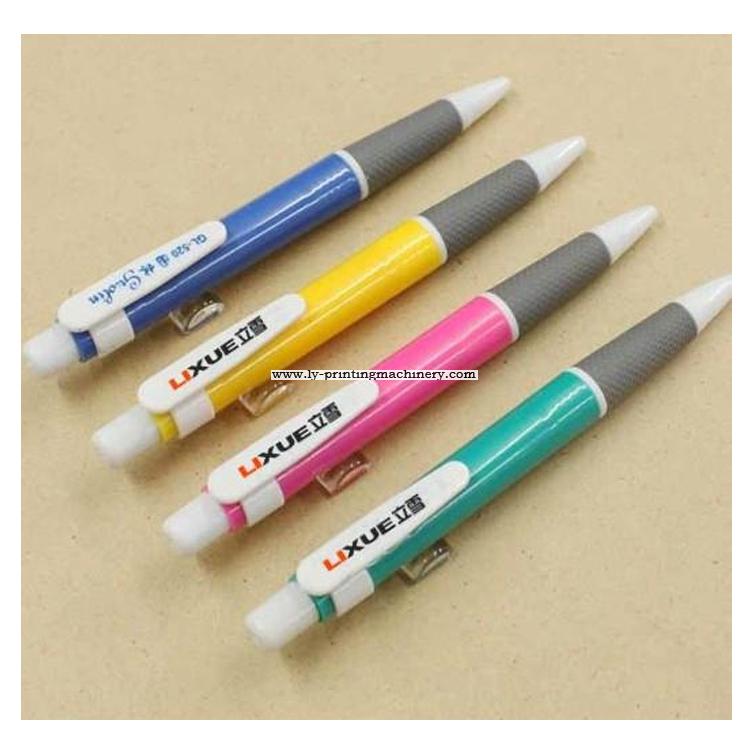

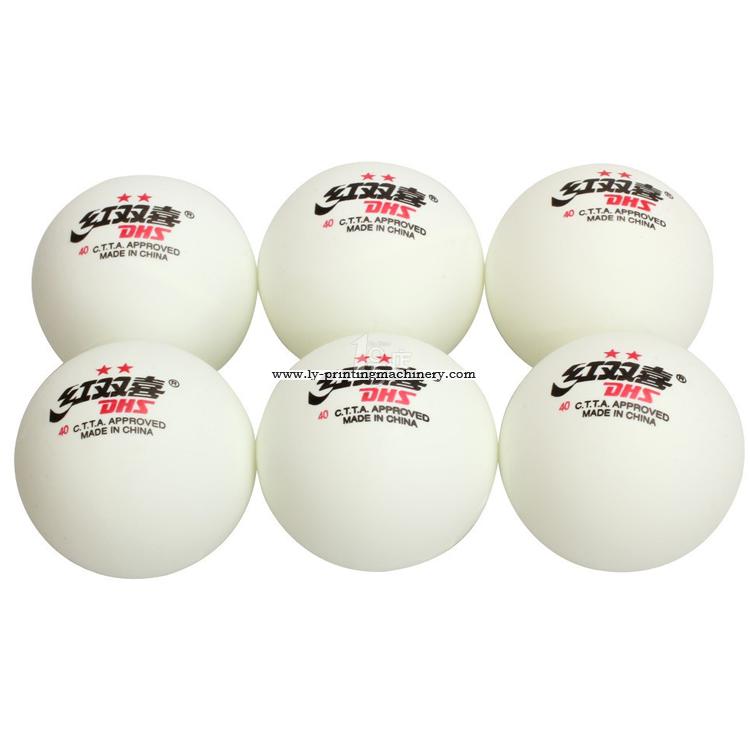

This machine can print  all kinds of products , such as toys, gift products, pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC.

Advantages:
1.Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3.Coin aluminium structure ensures sturdiness operation;
4.ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry

Specifications

1.Model NO: LY-MP2-S100
2.Operation: Pneumatic
3.Printing Color: 2
4.Plate area: 100*100mm
5.Printing area; 85*90mm
6.Max printing speed: 2000PCS/Hr
8.Wattage: 220V/ 50HZ:
9.Air pressure: 0.4-0.6Mpa
10.Machine size(LxWxH): 730x550x1430mm
11.Machine weight:118kg

12.Cylinder: from SMC
