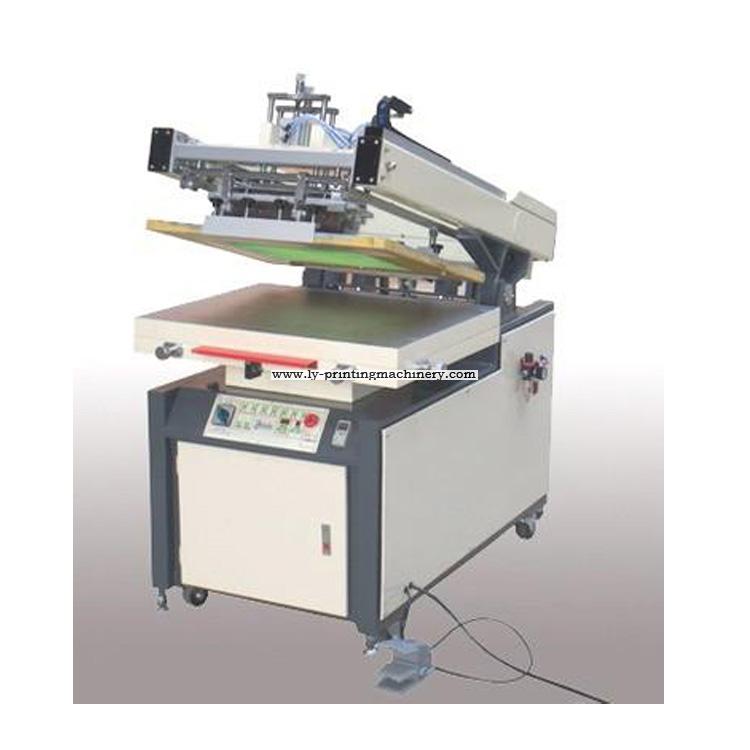

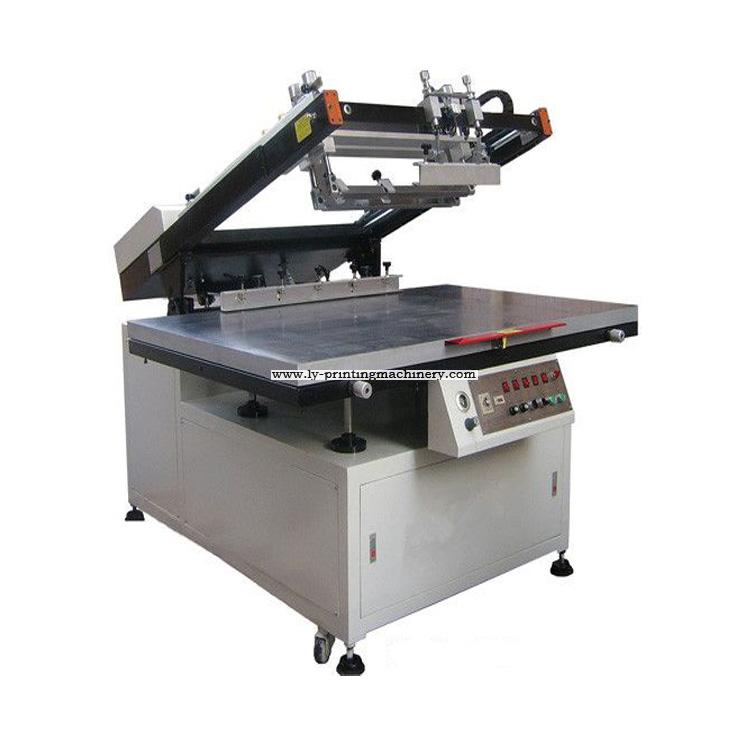

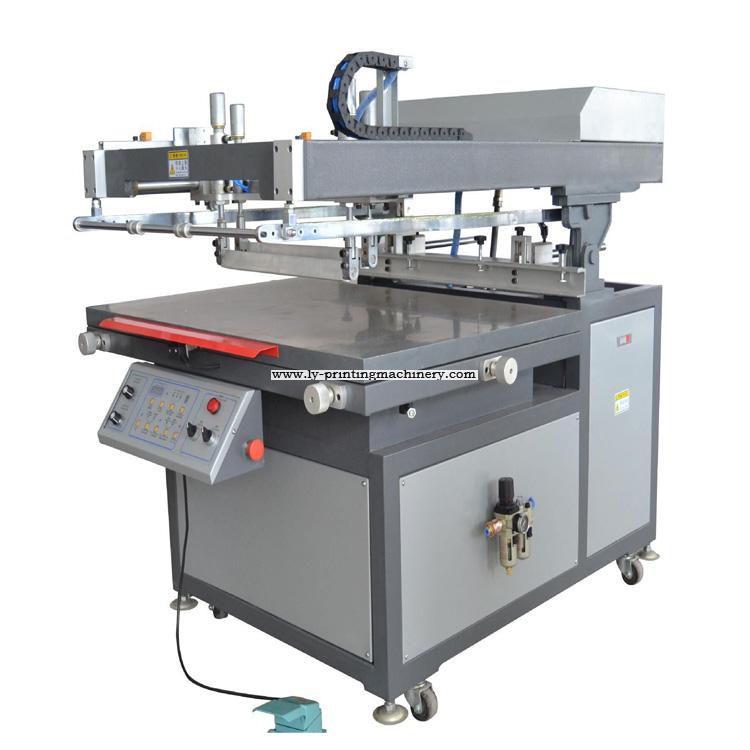

Tilted-arm Flat Bed Screen Printer with Vaccum Table LY-6090T
- Tilted-arm Flat Bed Screen Printer
- Flat bed screen printing machine
- Flat bed screen printing machine
- Product description: LY-6090T
PRODUCT INTRODUCTION
Describtion
This machine is fitting for paper board printing of cigarette, wine, gifts and cosmetics package, printing of trade mark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card
Feature:
1: Printing transmission is driven by the electric motor, synchronous belt drive, action sensitive, even speed and can be adjusted
2: Machine up and down is driven by the electric motor, frequency control, smooth operation, scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted
3: Adsorbing to fix printing substrate 4: The worktable has a venire regulation system( can move up and down, left and right, forward and backward) that makes registration more precisely and simply.
5: With security devices to make the head printing stop on the upper part position that is more reliable and safer
6: The electronic control unit (ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain.
7: The front clip can be adjusted forward and back.
Specifications：
Technical Parameter: LY-6090T
1.Workbench area:700mm*1000mm
2.Max printing area：600X900MM;
3.Max. Screen Size:900*1200
4.Min.Screen size: 450*550mm
6.Frame Lift Height: 300mm
7.Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8.Air consumptions(0.6 mpa): 13/pcs
9.Max.Product thickness:0-20 MM;0-50mm
10.Power rate: 2.3KW
11.Voltage: 220V/50HZ, single phrases
12.Table Height: 820mm
13.Max. printing speed. 500-1200pcs/Hour
14.Machine dimension:1500*1200*1250mm
15.Machine weight: 410Kg
16.Packing Size:170*119*156CM
17.Gross Weight:510KG
This machine is fitting for paper board printing of cigarette, wine, gifts and cosmetics package, printing of trade mark, wall calendar, oil painting, computer keyboard, new year picture, transfer paper, label-bond, credit card
Feature:
1: Printing transmission is driven by the electric motor, synchronous belt drive, action sensitive, even speed and can be adjusted
2: Machine up and down is driven by the electric motor, frequency control, smooth operation, scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted
3: Adsorbing to fix printing substrate 4: The worktable has a venire regulation system( can move up and down, left and right, forward and backward) that makes registration more precisely and simply.
5: With security devices to make the head printing stop on the upper part position that is more reliable and safer
6: The electronic control unit (ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain.
7: The front clip can be adjusted forward and back.
Specifications：
Technical Parameter: LY-6090T
1.Workbench area:700mm*1000mm
2.Max printing area：600X900MM;
3.Max. Screen Size:900*1200
4.Min.Screen size: 450*550mm
6.Frame Lift Height: 300mm
7.Operation Air Pressure: 0.3 Mpa.--0.5Mpa.
8.Air consumptions(0.6 mpa): 13/pcs
9.Max.Product thickness:0-20 MM;0-50mm
10.Power rate: 2.3KW
11.Voltage: 220V/50HZ, single phrases
12.Table Height: 820mm
13.Max. printing speed. 500-1200pcs/Hour
14.Machine dimension:1500*1200*1250mm
15.Machine weight: 410Kg
16.Packing Size:170*119*156CM
17.Gross Weight:510KG
