Silicone wrist bracelet screen printer LY-3A

Silicone wrist bracelet silk screen printer
Silicone wrist bracelet silk screen printing machine
Silicone wrist bracelet printing machine
Silicone wrist bracelet
Product description: LY-3A
Inquiry Now

PRODUCT INTRODUCTION

Description

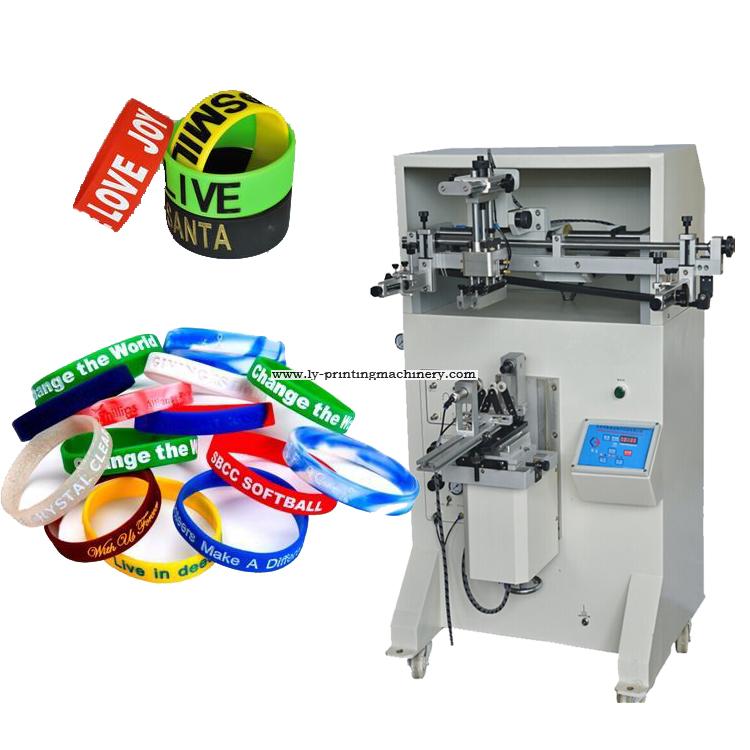

Cylindrical Silk Screen Printer LY-3A and LY-4A

Cylindrical for precise printing substrates in Cylindrical, Conical and Oval forms which with smooth curve surface, it is suitable for printing Silicone wrist bracelet on 360 degree.

Our cylinder screen printer is multifunctional screen printing machine. They are suitable to print on flat, round, oval shaped products.

Cylinder screen printers can print one color at one time. Once replacing frame and ink, they can print 2, 3^colors.

Advantages
1. Fully automatic control by microcomputer & easy handling
2. Four figures automatic counter
3. Round printing function (taper section)
4. Automaticoil scrabbing, oil return and lifting table
5. Adujustability of routs and speeds
6. Self-poise scraper to balance printing pressure
7. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides)
8. High precision and easy & quick adjustability

Tech Parameter:
1. Model number: LY-3A
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ82mm
4. (Round)Max printing arc length: L: 270mm
5: (oblate)Max printing diameter: 420mm
6.(flat) Max printing area: 260*; 220mm
7. Printing Speed: 2100 PC/H
8. Machine Weight: 115kg
9. Air pressure: 0.5Mpa
10. Voltage power: 220V/ 50HZ or 110V/60HZ

1. Model number:LY-4A
2. Product appearance: Round /oblate /flat
3. (Round)Max. Printing diameter: Φ120mm
4. (Round)Max printing arc length: L: 370mm
5.(oblate)Max printing diameter: 500mm
6. (flat) Max printing area: 320*220mm
7. Printing Speed: 1700 PC/H
8. Machine Weight: 190kg
9. Air pressure: 0.5Mpa
10. Voltage power: 220V/ 50HZ or 110V/60HZ
