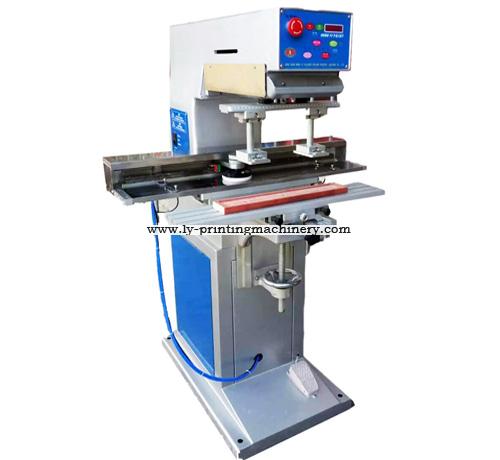

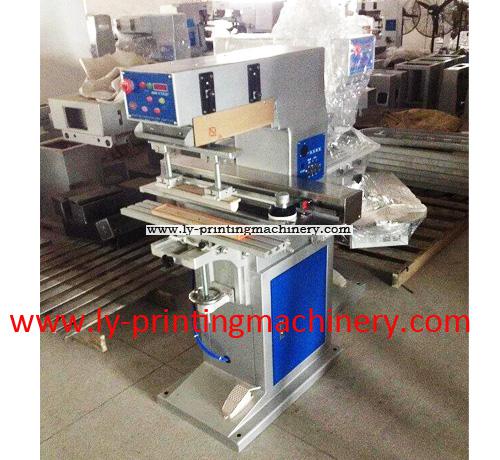

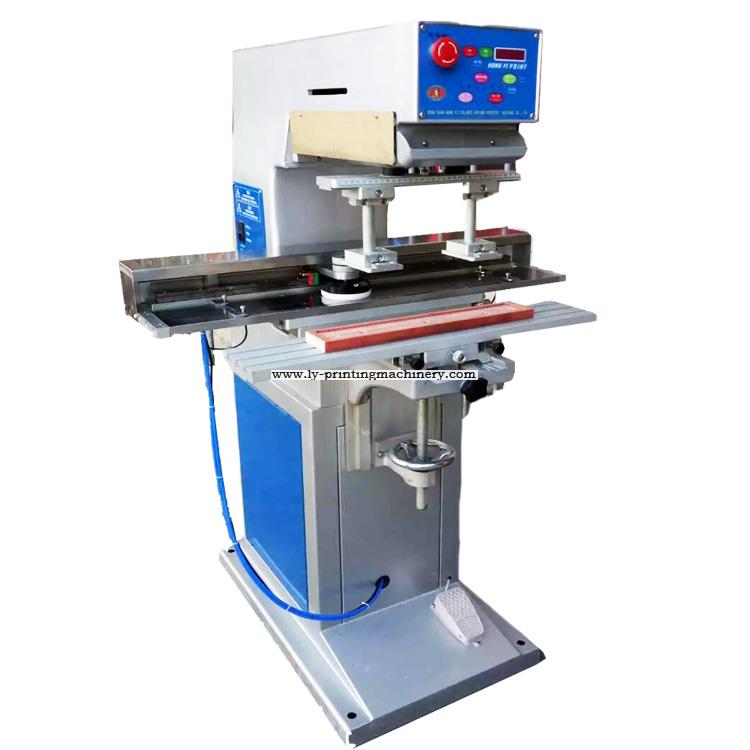

transverse tampo printer with closed ink cup

LY-MP1-600 is use for some pad printing special parts, too lenth, too width, ink cup could transverse flow moving, so that, a most big size pars it is can pad printing also.

The transverse closed cup with a print area of 85 mm diameter. Is an ideal for synchronizing with our rotary indexing systems.

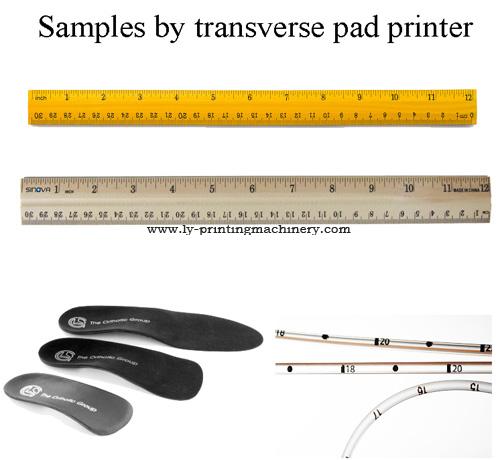

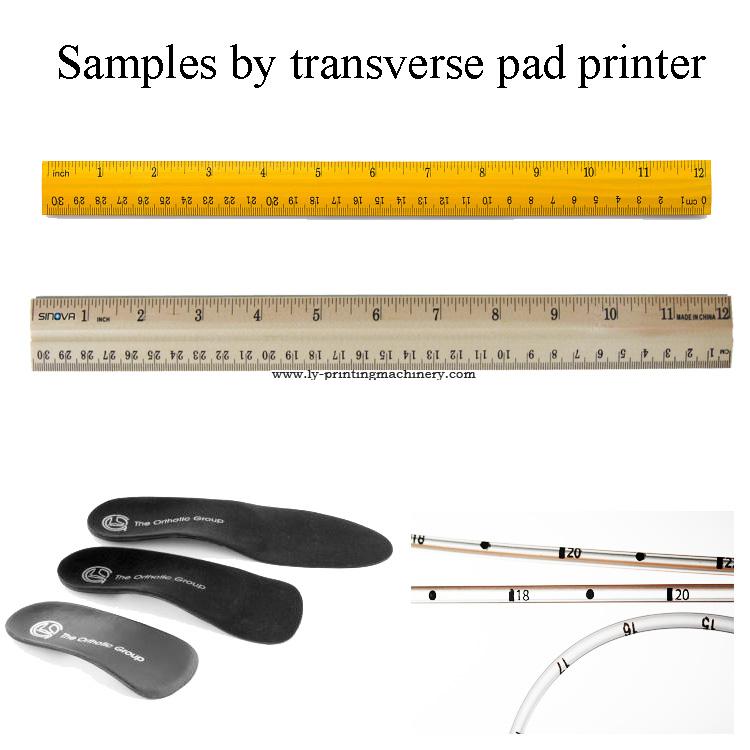

It is ideal for Printing onto rulers,flute, sole ,catheters, syringes, pen clips, pen barrels, reflector tubes, electrical, electronic housings, badminton rackets, pvc/rubber pipes and pvc casing etc.

The system is capable to print images as long as o 530-550 mm x 15-20 mm Application specific synchronization and mounting packages can be tailor made to meet your specific requirements.

The model comes with a standard working table for product up-down setting and a fabricated base as a standard

Tech Parameters:
1．Model NO LY-MP1-600
2．operation ：pneumatic
3．Printing Colors：1
4. Max. printing area :85x510 mm
5．Plate area 600*100 mm2
6．Sealed ink cup diameter：￠90mm
7. Max printing speed：1600PCS/H
8．Wattage：220V/ 50HZ 110V/60HZ
9．Air pressure: 6 Bar
10.Machine size:122x92x138cm(LxWxH)

11.Machine weight: 235kg
