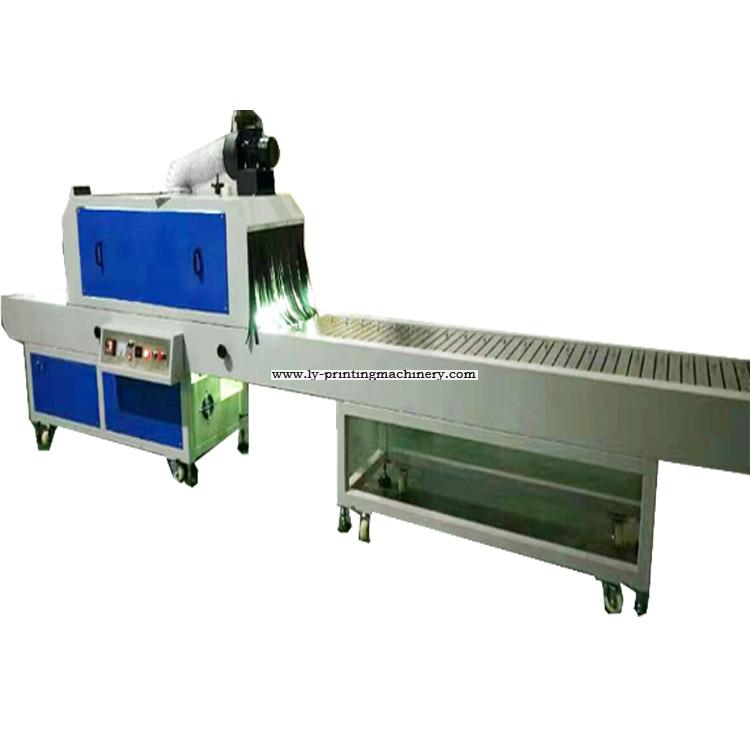

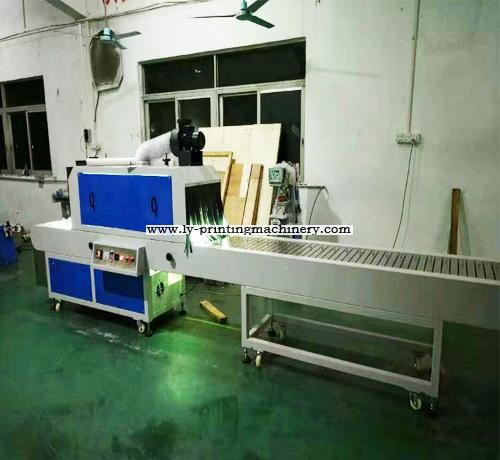

Bottle UV curing machine with Long conveyor

Application
The machine is suitable for drying and curing the round, oval plastic or glass bottles. It is widely used in the cosmestic, household product bottles final step printing curing. The tooling holder is removable so it is also suitable for flat products curing.

Feature

1. Suitable for the UV Ink printing cure on round,oval,flat bottles and cylindrical substrate
2. By adjusting its lighting angle, it can also be used in the UV Ink printing cure of flat or curved substrate
3. Enclosure construction with conveyor. Apply half light(3KW) or full light (6KW) tubes, the distance is adjustable
4. Electronic components (transformers, starters),control,precision,long life

Tech Parameter

1.Bottle UV Curing Machine With Long conveyor
2.Technical Parameters
3.ModelNo:LY-UV-420S
4.Bottle Bottle mouth diameter 12-24mm
5.Max product height:320mm
6.Conveyer width:420mm
7.Conveyer speed:0~20m/min
8.UV lamp power 5.6kw
9.Total Power supply:AC380V 6.5kw
10.Machine Size 470x175x75cm
11.Machine Weigh:450kg
12.Warranty One years

13.Usage:Beer bottle,beverage,glas cups
