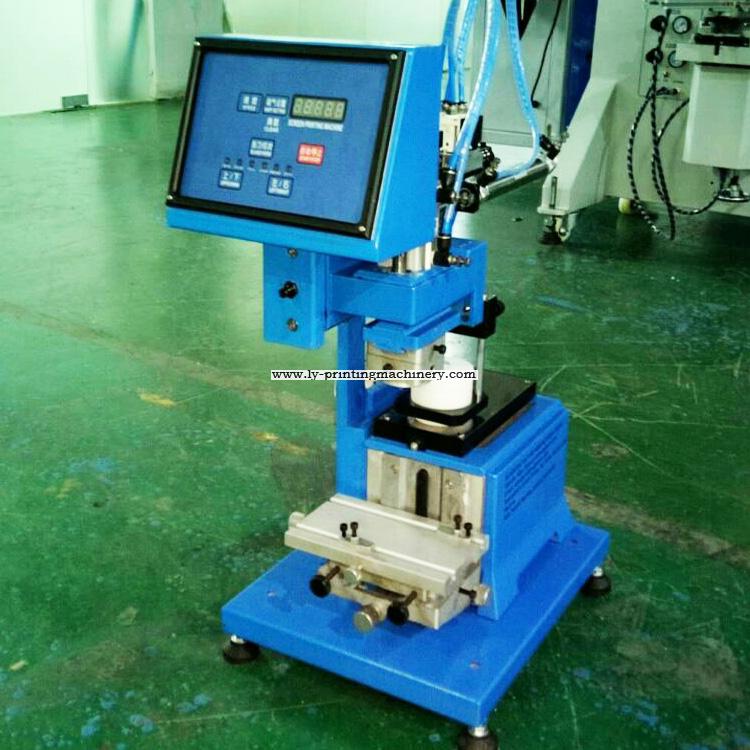

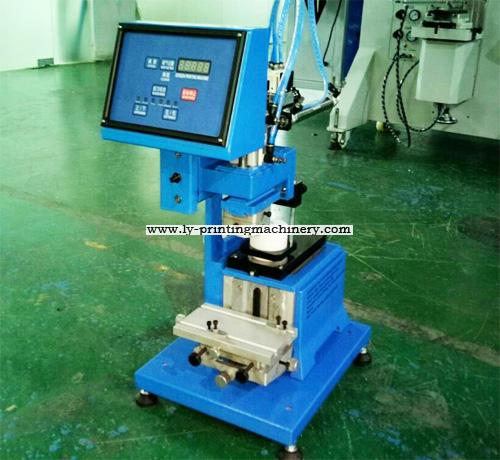

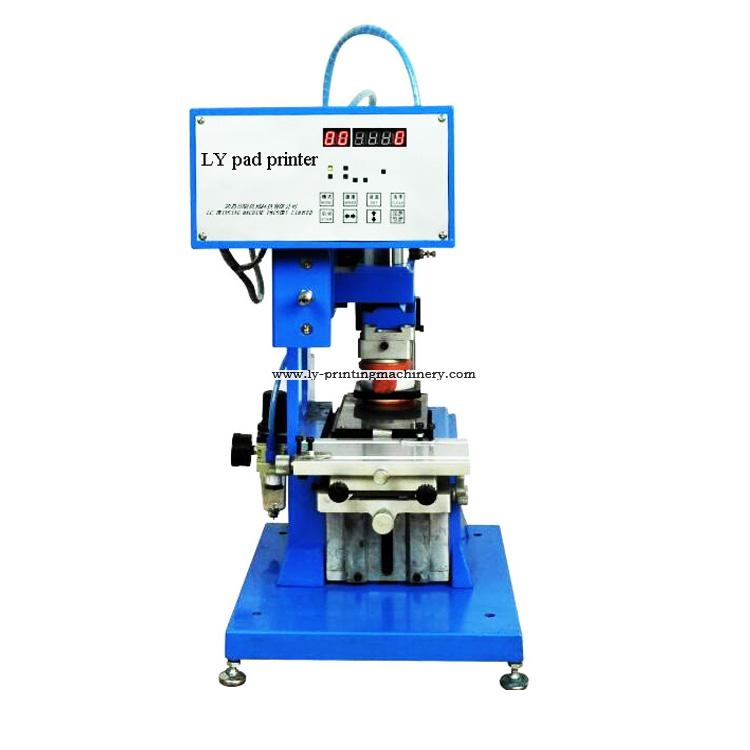

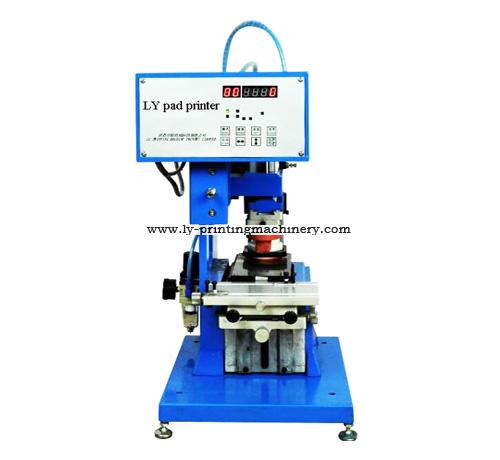

Semi-automatic mini desktop pad printer with closed ink cup

This mini desktop closed ink cup pad printing machine, competitive price, machine weight 30KG,convenient movement，you can put the machine on the table ,easy operation .

Application
electronics, plastics, toys, gifts, handicrafts, household appliances, caps, office supplies, automobile parts, etc.

Feature

LY-PAD2  Tabletop Pad Printer for One Color Logo Print . It is suitable for small size printing area. The machine is with high capacity, printing speed runs to 2000pcs/hr and low price. It wins great competition in its competitive price.

Especially suitable for printing on small footprint,mark, logo etc. With its steady printing quality,this one color Pad Printer could print variety of surface,such as flat,cylindrical,spherical,compound angles,textures,convave surfaces,convex surfaces etc.

Function
1. With microcomputer-controller, semi-automatic, utility function, and the operating procedures are flexible and reliable.
2. With aluminum alloy structure frame and metal coating surface, the machine is easy to move but steady
3. With function of leveling ink by sliding automatically on front /back, avoiding printing ink partial solidification
4. Adjustable inking pressure and printing speed meets different printing requirements
5. Use the oil cup to inking , pro-environment and easy to disassembly & assembly , avoid wasting ink.
6. 360° adjustable rubber pad angle and ±5° adjustable worktable angle ensure repeat precision to be less 0.05mm

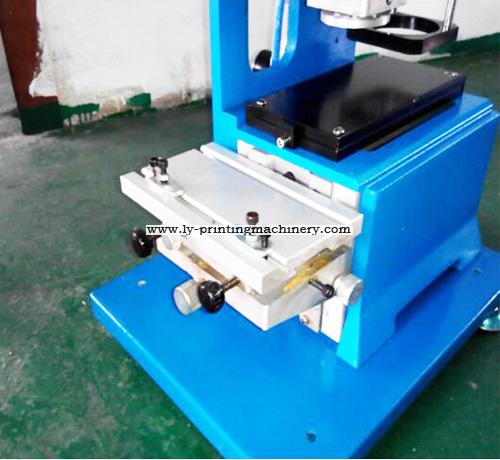

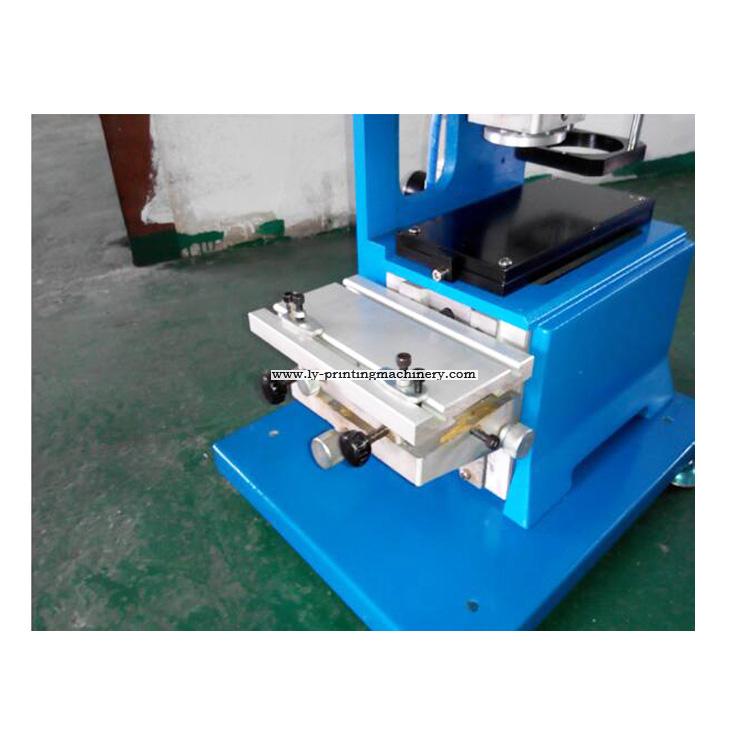

7. Worktable, plastic head and ink tray can be adjusted X. Y. Z

Technical parameter:
1.Steel plate:100*200mm
2.Action model option: fully automatic/mauanl
3.Start-up method:panel
4.Scraper working style: mechanical type
5.front/back distance：150MM
6.Up/down distance：75MM
7.Sealed ink cup diameter:60mm
8.Max.printing area：50*55MM
8.Printing speed:2000PCS/Hr
9.Printing station:1PC
10.Weight:40kg,packing weight:50kg

11.Shape dimension::500 × 350 × 650 mm
