> Pad printing machine

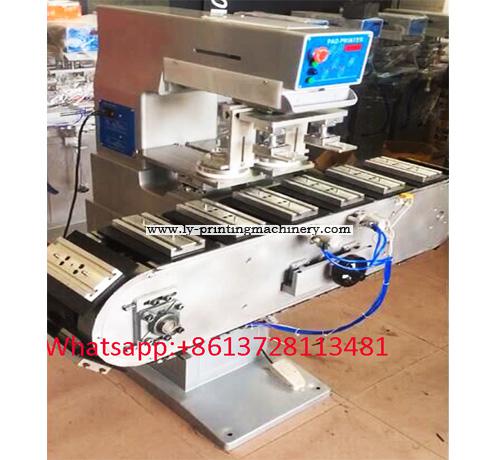

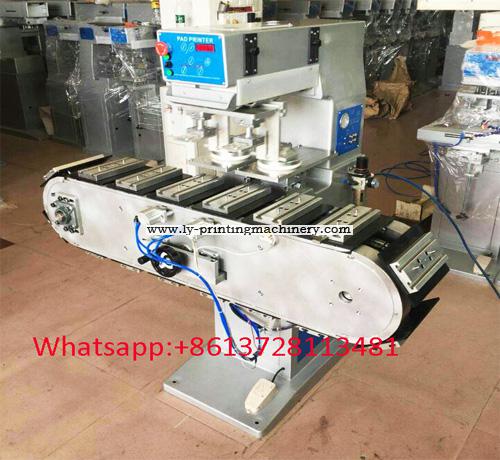

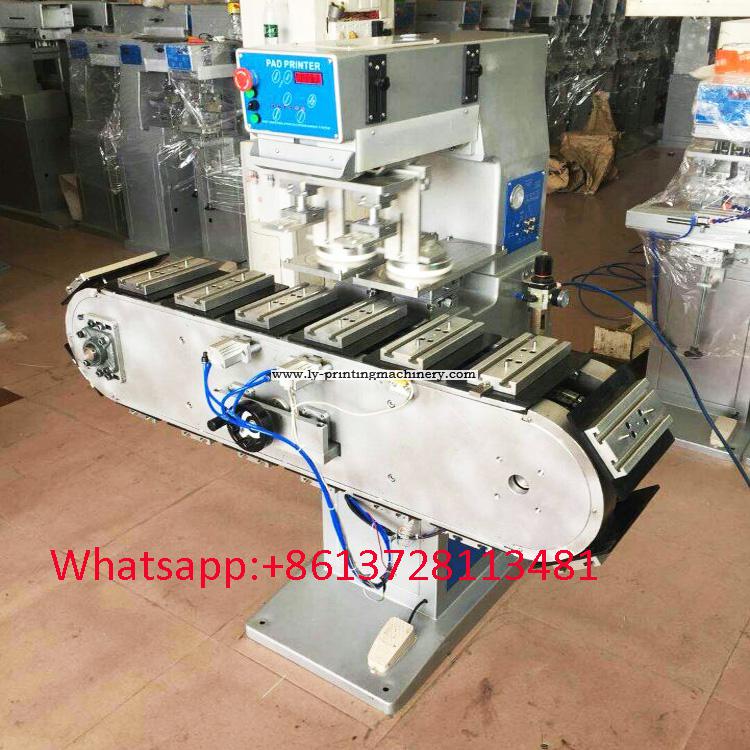

Tank conveyor 2 color pad printer with closed cup
- Servo motor running
- printing area:120×230mm
- With closed cup
- 2 color printing at one time
- Product description: LY-MP2-350TC
PRODUCT INTRODUCTION
LY-MP2-350TC is a big closed ink cup pad printing machine with Tank conveyor , Max. printing area:120×230mm；
our machine is adopted automatic Servo motor on the conveyor, printing result is very precise and stable, it can be unloading by conveyor .
Other suppliers only use pneumatic on the conveyor, not stable and printing quality is not good.
Tech Features:
1, Use the lastest advanced microcomputer control, operation is very easy
2. Machine body is made by Cast aluminum, more durable.
3, It can be adjusted independently representing X, Y axis and angle of rotation.
4. With sealed ink cup, no smell ,more environmental.
5.Adopted Servo motor running, more precise and stable
6, Cylinder is famous brand SMC imported from Japan directly.
7. Can be adjustable to Auto and Se-auto running .
Printing application:
Lunch box, bowl, toy, pen ,watch bottle, cup,mobile phone case, wristband and promotional gifts..etc
Specifications
1.Max. plate size: 150×350mm；
2.Max. printing area:120×230mm；
3.Closed ink cup diameter : 90mm
4.Max. printing speed: 1500pcs/hr；
5.Air consumption: 169Litre/min(6bar)；
6.Color Number: 2；
7. Machine Dimension:1350*950*1380mm
8.Machine weight: 325 Kg
9. With full PLC operation
our machine is adopted automatic Servo motor on the conveyor, printing result is very precise and stable, it can be unloading by conveyor .
Other suppliers only use pneumatic on the conveyor, not stable and printing quality is not good.
Tech Features:
1, Use the lastest advanced microcomputer control, operation is very easy
2. Machine body is made by Cast aluminum, more durable.
3, It can be adjusted independently representing X, Y axis and angle of rotation.
4. With sealed ink cup, no smell ,more environmental.
5.Adopted Servo motor running, more precise and stable
6, Cylinder is famous brand SMC imported from Japan directly.
7. Can be adjustable to Auto and Se-auto running .
Printing application:
Lunch box, bowl, toy, pen ,watch bottle, cup,mobile phone case, wristband and promotional gifts..etc
Specifications
1.Max. plate size: 150×350mm；
2.Max. printing area:120×230mm；
3.Closed ink cup diameter : 90mm
4.Max. printing speed: 1500pcs/hr；
5.Air consumption: 169Litre/min(6bar)；
6.Color Number: 2；
7. Machine Dimension:1350*950*1380mm
8.Machine weight: 325 Kg
9. With full PLC operation
10.Cylinder is SMC brand imported from Japan
