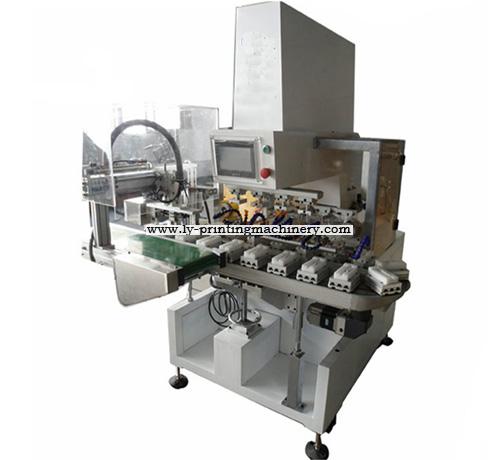

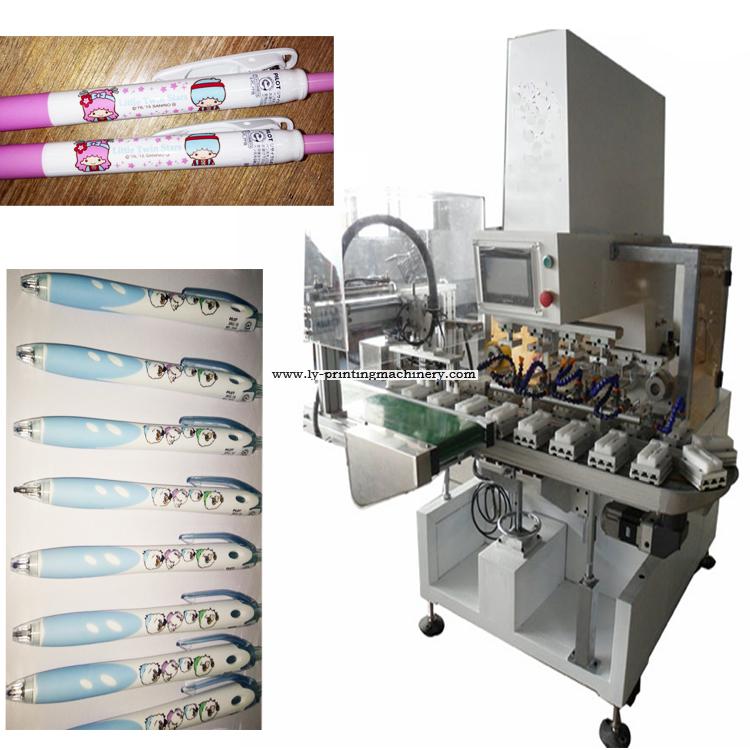

Pen High printing precise 4 color pad printer

High-precision high-efficiency rotary pad printer Applicable scope

It is suitable for printing pen, PCB, silicone, textiles, plastic keys, PET, cardboard, nameplate, trademark, IC board, film switch circuit, mobile phone lens, glass, liquid crystal display panel and sign.

It is adopted servo motor control, fast response, start and stop the exact location. Print head scraper movement to servo motor control, the printing pressure more flexible. Printing stable balance, small vibration, high precision, multi-color overprint accurate. Printing accuracy: ± 0.02MM, per hour running speed up to 3000 times.
This machine can be set to manual / semi-automatic / fully automatic three modes, the printing action indirect time can be digital control. Individually designed print tight adjustment.

The complete package of the whole machine makes the safety higher and maintenance free. Safe and beautiful, simple operation, the robot automatically cutting, greatly improving the production efficiency.



Performance Introduction:
1.Mitsubishi plc plus vinylon touch screen compilation action program, durable, simple to maintain.
2.Printing action design A variety of printing cycles, the user can freely choose the printing process.
3.Rail-type sliding structure, high precision, smooth operation.
4.Print head constant pressure device arbitrary adjustment to ensure that the printing process of pressure stability.
5.Print head angle can be adjusted.
6.High-precision fine-tuning table, with self-locking device, adjustment accuracy can reach 0.01MM.
7.Position position can be around, left and right, horizontal adjustment.
8.Printing head can be lifted upright function,
9.Servo drive control makes printing smoother.
10.Grinding high-strength hardness table to ensure accurate multi-color chromatography.


Tech Parameters:
1.Max. Plate size: 150*250mm
2.Sealed cup diameter: 90mm
3.Max Printing area: 120*120mm
4.Max. Printing speed: 3000PCS/h
5.Printing colors: 4
6 Machine Size:160x130x180cm
7.Machine Weight: 300Kg
8.Voltage power: 220V/ 50HZ

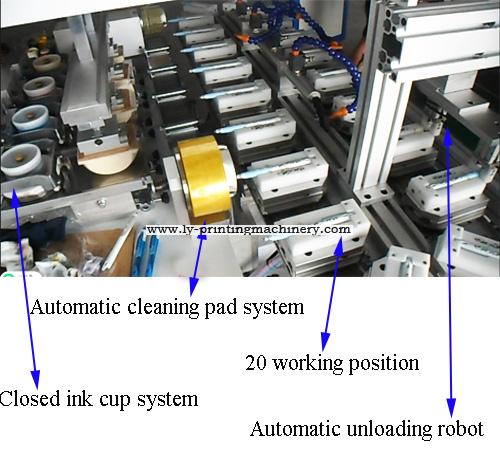

9.Working position:20 PCS
10.Gross Weight:398K
11.With automatic cleaning pad

12.With automatic unloading robot and conveyor
