pen high speed full auotmatic screen printer

Description:

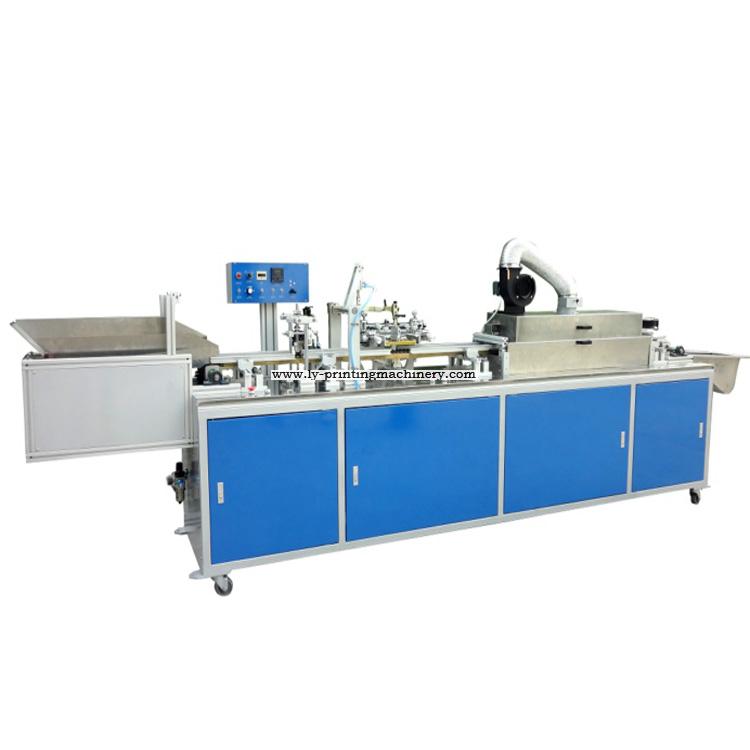

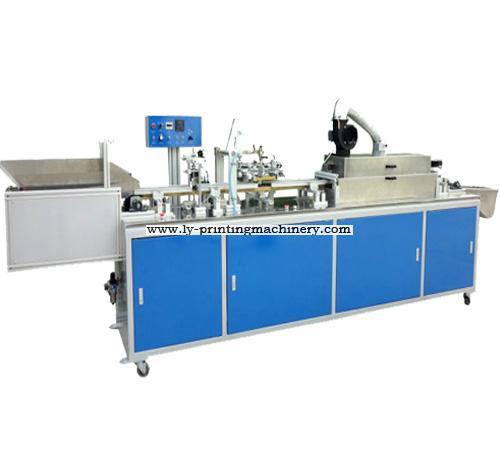

Automatic Pen Screen Printing Machine

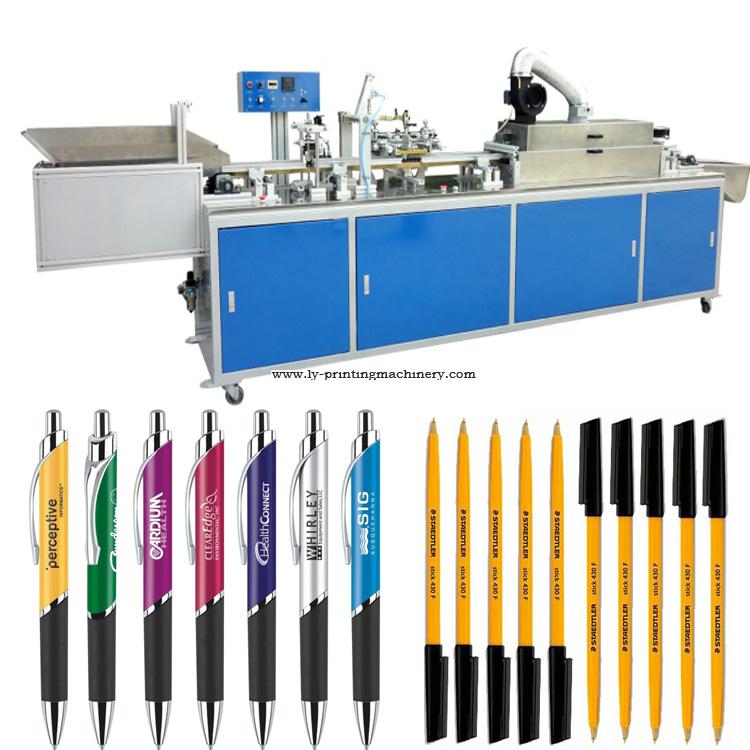

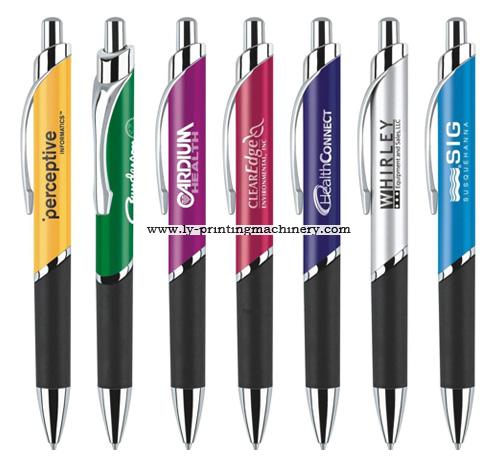

This machine with the good printing quality, fast speed, easy to adjust, It it use for the printing of round type plastic or metal pens, small round tubes, medical syringes, chopstick, cosmetics lipstick tube, and so on.
The auto printing system combine with the Automatic feeding & unloading system, Screen printing, UV or IR curing, with the non-class speed adjust,it is widely used in the pen printing factory and cosmetics manufacture.

Function:
1. Automatic feeding and unloading system, can be printing the object one or double at the same time.
2. Running smoothly with less noisy, can be adjust the printing distance & speed as you wish.
3. Control by Inverters for steady moving, ensure for good affect printing.
4. Adopt IR or UV drying system, it can finish the printing and drying at the same time,

Specifications:
1：Printing color: 1 color
2：Object dimension: Ф3 to 20mm
3：Object length: 70-200mm
4：Printing distance: 20 to 80mm
5：Output: 3600-4600pcs/hr
6：Power supply: 220V/110V , 50/60HZ ,3KW
7：Power consumption:3kw
8：Weight: 800kg
9：Dimension: 3100×680×1200mm
10: IR Drying oven length:1000MM (U shape)
11: IR Heating Tube power rate:2.5KW
12: Cooling Fan after IR heating
13.Pack Size:Wooden Case 444*78*173CM

14.Gross Weight:910KG
