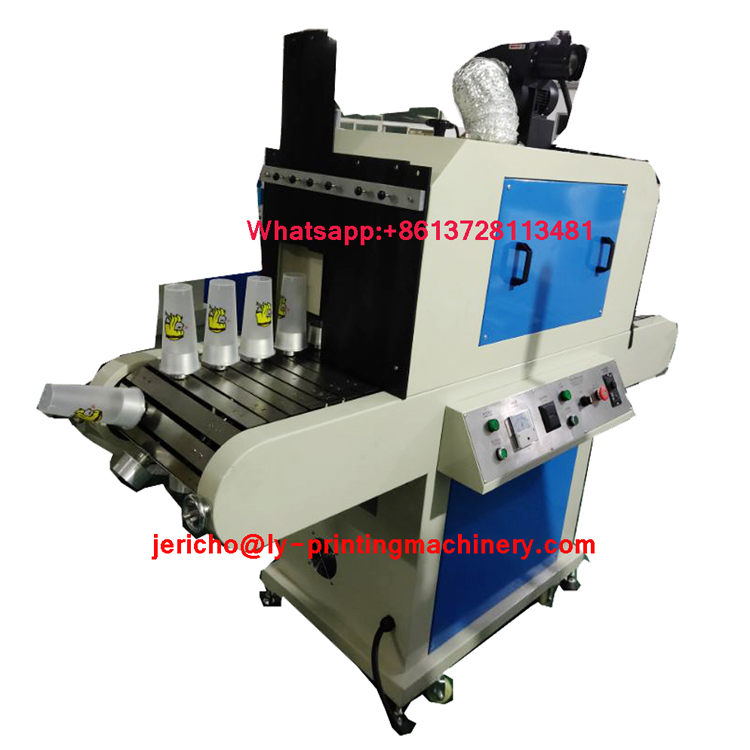

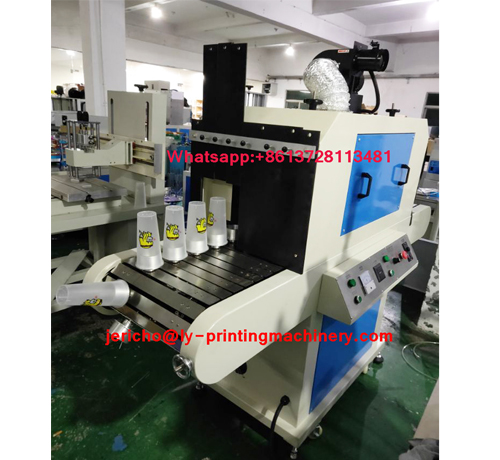

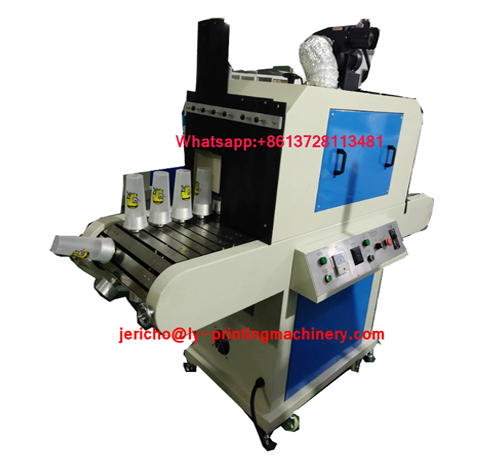

Bucket Bottle Cup UV curing machine LY-RP4000

Applicable range
Our Round Plane UV curing machine LY-RP4000 is suitable for drying UV ink on round,oval,flat bottle ,cup,tube and other round products, also it can dry plane products. application is very widly.Reliable, safe and easy to operate
It is widely used in the cosmestic, house hold product bottles final step printing curing. The tooling holder is removable so it is also suitable for flat products curing.

Advantages:
1.Suitable for the UV Ink printing cure on round,oval,flat bottles and cylindrical substrate.
2.By adjusting its lighting angle, it can also be used in the UV ink printing cure of flat or curved substrate; 3.Enclosure construction with conveyor. Apply half light (3KW) or full light (6KW) tubes, the distance is adjustable;
4.On the top of the machine equipped with an exhaust system, you can vent the inside heat of curing chamber .

Specifications of Round Plane UV curing machine

1.Model LY-RP4000
2.Max product height:20-320mm
3.Max product width:400mm
4.Conveyer size: L2000xW400mm
5.Bottle mouth diameter:Φ12-120mm( can be customized )
6.Conveyer size:400mm
7.Speed:1800~3000Pic/Hr
8.Rout speed:0-10m/min
9.UV lamp power:5Kw
10.Machine power:7Kw
10.Power supply:220/380V
11.Machine size:L2100xW750xH1810mm
12.Machine weight:353kg
13.Packing Size:2450*830*1920mm

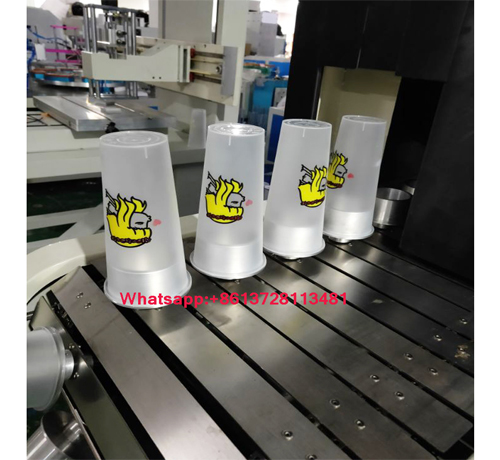

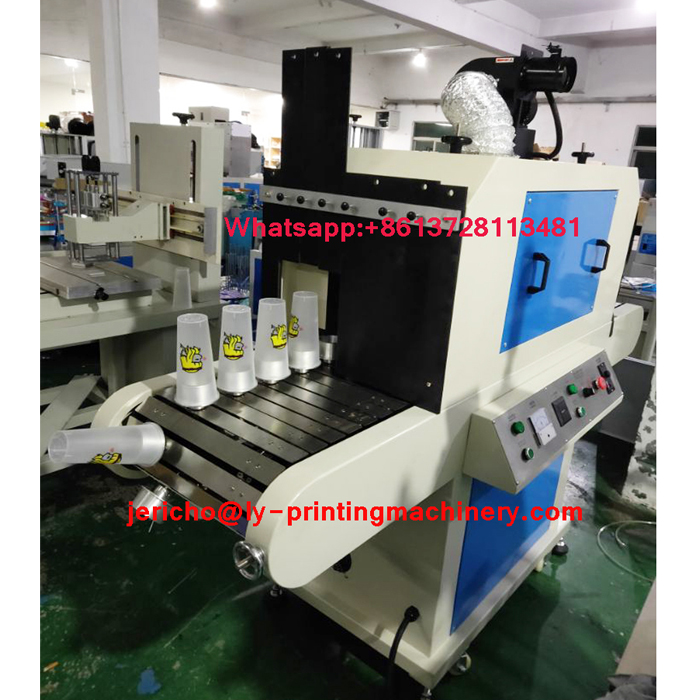

For drying UV ink on plastic cups

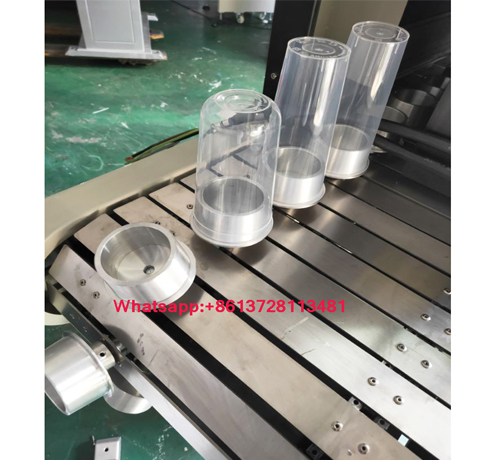

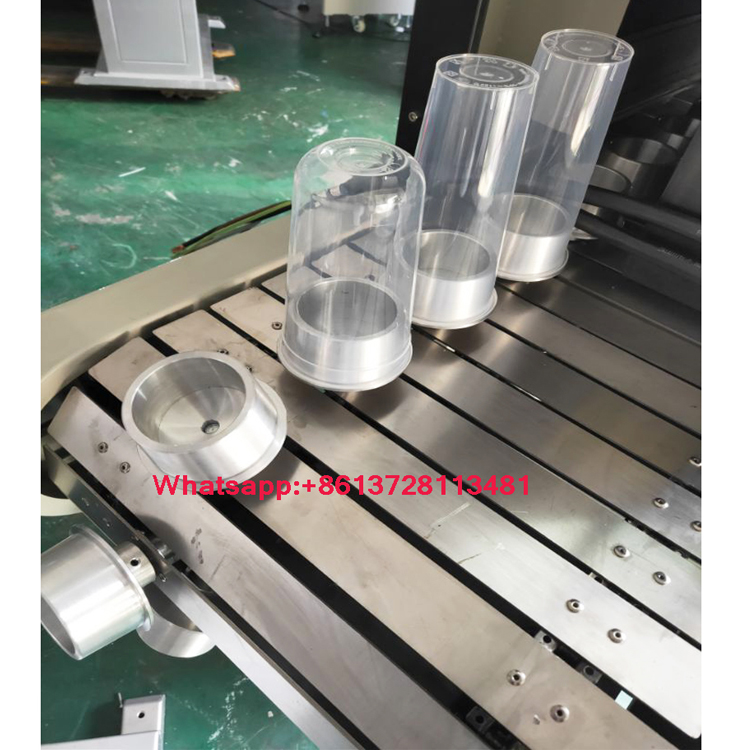

For drying UV ink on plastic metal bottles

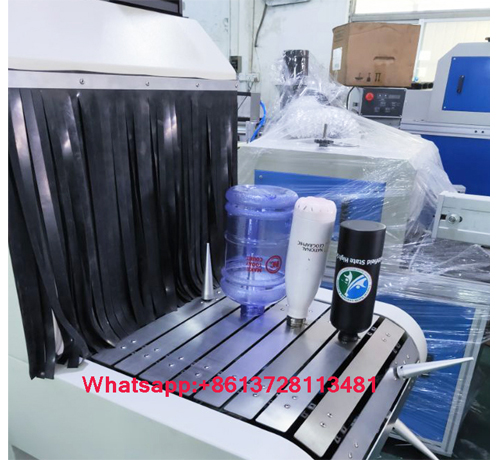

For drying UV ink on glass bottle

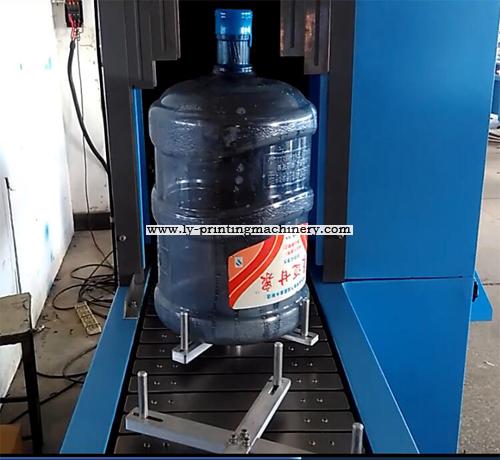

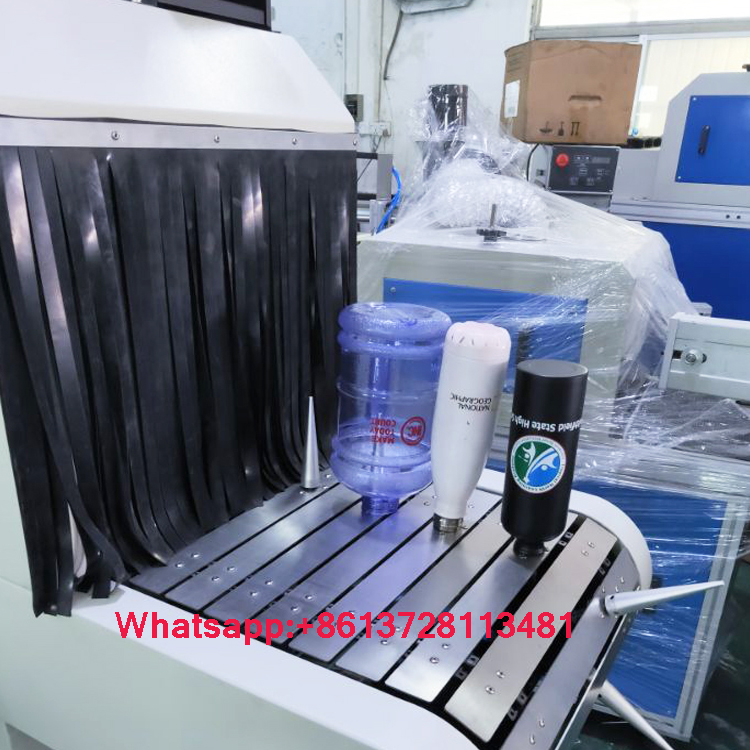

For drying UV ink on 5 gallon water bottle
