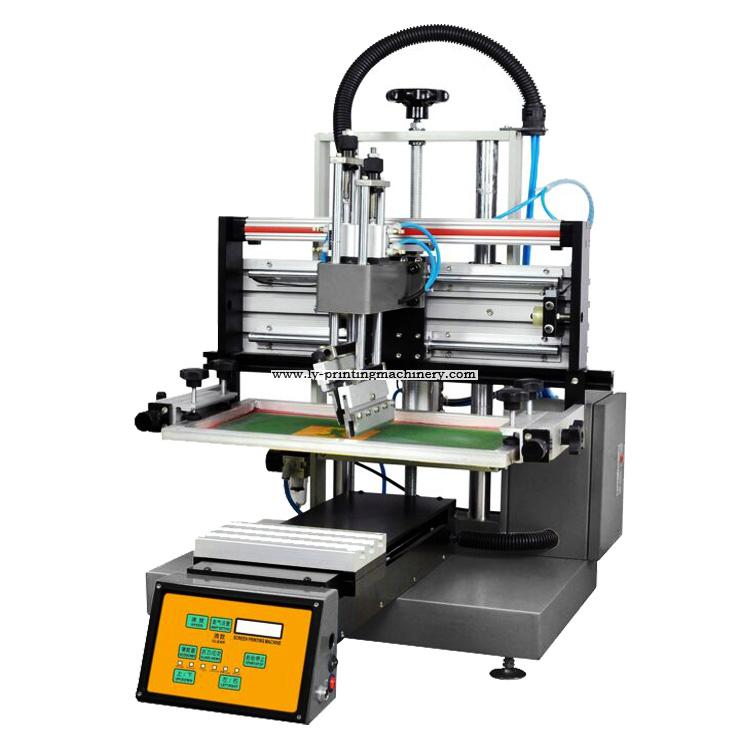

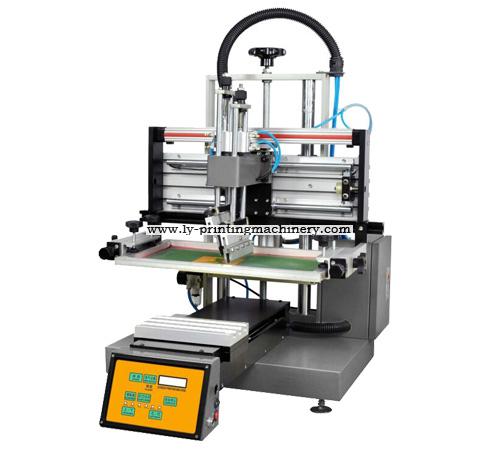

Pneumatic Drive Tabletop Screen Printer

Tabletop Screen Printer with Pneumatic Drive working table

It is a mini pneumatic-drive flat screen printing machine. Front and back pneumatic-drive structure design, it’s very convenient to put and take products. It can’t restrict by the space of screen frame and worktable.It’s very suitable for printing logo on the surface of silicon rubber keypads, mobile key, and small mobile lens.

Features:

1.SCM IC coordinate light touching panel to compile action programming
2.Auto 4-digit counter built-in, counting printing quantity
3.Airframe adopts coin alloy, and metal coating surface
4.Distyle vertical structure, high precision, steady operation
5.The transverse stroke can be adjusted, spacing by Taiwan electronic switch
6.The angle of scraper and ink covering blades can be adjusted randomly
7.Installing scraper constant pressure equipment to make sure pressure is steady when printing
8.You can regulate work-table back and forth or right and left, and then fastening it
9.You can regulate screen frame back and forth, right and left or level orientation
10. T-slot worktable, convenient to install mould
11.Installing CEC oil buffer on up and down, left and right to avoid printing shock
12.The machine is running fast, stably and lower noise.
13.Action model option: fully automatic | semi-automatic | manual
14.Start-up method: panel | foot switches
15.Scraper pressure controller: by pressure regulating Valve


Product Specification:
1:Mode:LY-2030P
2:Print Area:200*300mm
3:Max height of printing products: 80mm
4:Pneumatic-drive vertical stroke: 300mm
5:Transeversa stroke: 350MM
5.Maximum screen frame size: 50*30cm
6:Vertical stroke: 125MM
7:Worktable size: 250*450mm
8:Print Speed:1500pcs/hour
9:Power:110/200V 50W
10:Machine Size:105*81*90cm

11:Net Weight:135KG
