2 color automatic ruler pad printer
- automatic pad printer
- Product description: LY-350R2
PRODUCT INTRODUCTION

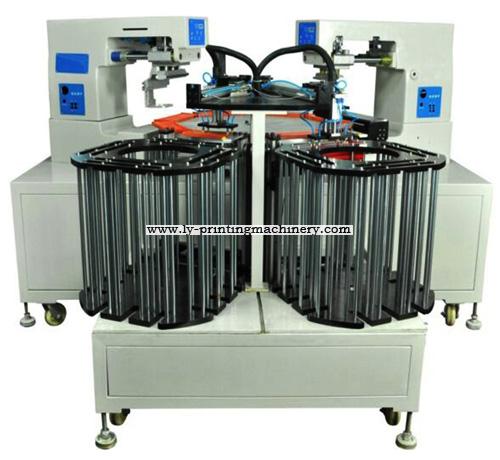

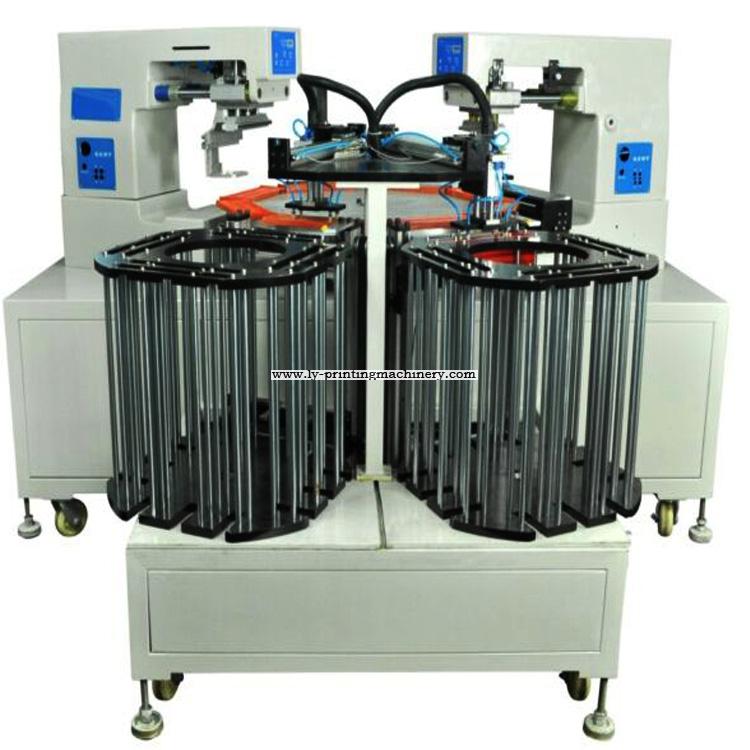

2 color automatic ruler pad printer
Technical Parameters
Model No. |
LY-350R2 |
Max.Printing Diameter |
90mm |
Max.Printing Area |
150x350mm |
Transverse Stroke |
150mm |
Vertical Stroke |
75mm |
Max.Plate Size |
100x500mm |
Power |
220V 50-60Mhz 1kw |
Printing Speed |
1500 pcs/hr |
Printing Worksatation |
16pcs |
Weight |
350kgs |
Automatic Grade |
Fully-automatic |
Color & Page |
Two color |
Warranty |
Two years |
Usage |
Ruler,scale |
Machine Feature
The ruler pad printer machine is special designed for printing rulers. It can print two rulers at one time with 16PCS workstations, feeding, printing, baiting at the same time, improving printing efficiency.Machine Advantage
1.PLC with touching screen compile programming;
2.Using SMC (Japan) and Taiwan pneumatic parts;
3.Two color pad printing, precision over-printing, fast and stable, perfect printing quality;
4.Printing speed: 1, 100 ~ 1.200 times / hr, print two rulers at one time;
5.Up/down store holder system, folding automatically;
6.Transverse ink cup system, ink-save and enviromental
7.Locating by keeping one side with high vacuum function;
8.Auto drying system after printing;
9.Operate step: Feeding by vacuum pad - auto printing - auto baiting - auto drying. No need person to operate;
Machine Accessories
Sealed Cup x 1piece
Steel Plate x 1piece
Tooling box x 1 piece
Tooling set x 1 piece
English manual x 1 piece
