> Automatic printing machine
Ruler full automatic screen printer with UV system

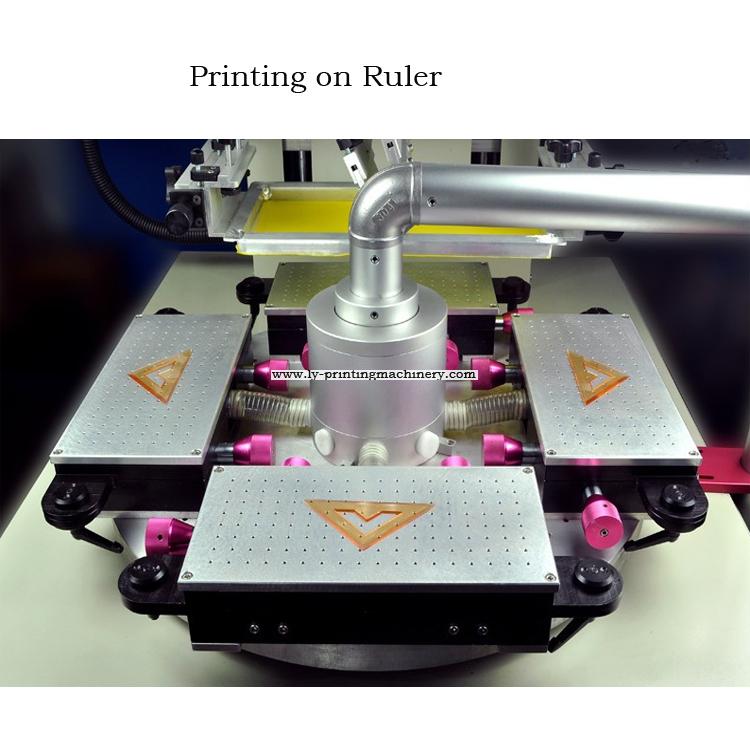

- printing triangular ruler
- printing straight ruler
- other flat items.
- With UV curing system
- Product description: LY-H400F
PRODUCT INTRODUCTION

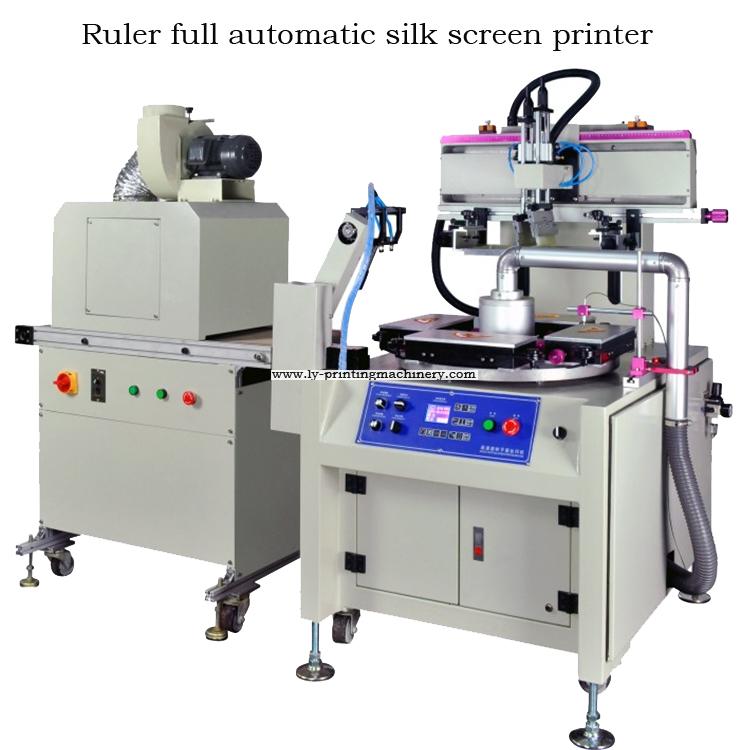

Ruler full automatic screen printer with UV system LY-H400F
Advantage
Automatic ruler UV printing machine is suitable for printing the Ruler, square ruler, protractor,triangular ruler straight ruler and other flat items.
It is with automatic feeding system, automatic printing system, With UV curing system,easy opration excellent printing.
1. The main motor is Japan Servo brand.
2. It has the PLC and touch screen control system.
3 .The pneumatics cylinders are Germany Festo brand.
4 .The 4 position working station conveyor and auto positioning function make sure the printing precisely.
5. It prints 2 PC rulers at one time. The printing speed can reach 4000-8000 pcs at 1 hour.
Parameter
1.Max Printing sizer:200*300 mm
2.Max printing speed:4000pcs/hr
3.Max printing area:75*130mm
4.Power supply:220V 50Hz 1kw
5.Max products height: 60mm
6.Working stations:4pc
7.Machine Weight:480kg
8.Machine dimension:1000×1200×1650mm
Advantage
Automatic ruler UV printing machine is suitable for printing the Ruler, square ruler, protractor,triangular ruler straight ruler and other flat items.
It is with automatic feeding system, automatic printing system, With UV curing system,easy opration excellent printing.
1. The main motor is Japan Servo brand.
2. It has the PLC and touch screen control system.
3 .The pneumatics cylinders are Germany Festo brand.
4 .The 4 position working station conveyor and auto positioning function make sure the printing precisely.
5. It prints 2 PC rulers at one time. The printing speed can reach 4000-8000 pcs at 1 hour.
Parameter
1.Max Printing sizer:200*300 mm
2.Max printing speed:4000pcs/hr
3.Max printing area:75*130mm
4.Power supply:220V 50Hz 1kw
5.Max products height: 60mm
6.Working stations:4pc
7.Machine Weight:480kg
8.Machine dimension:1000×1200×1650mm
