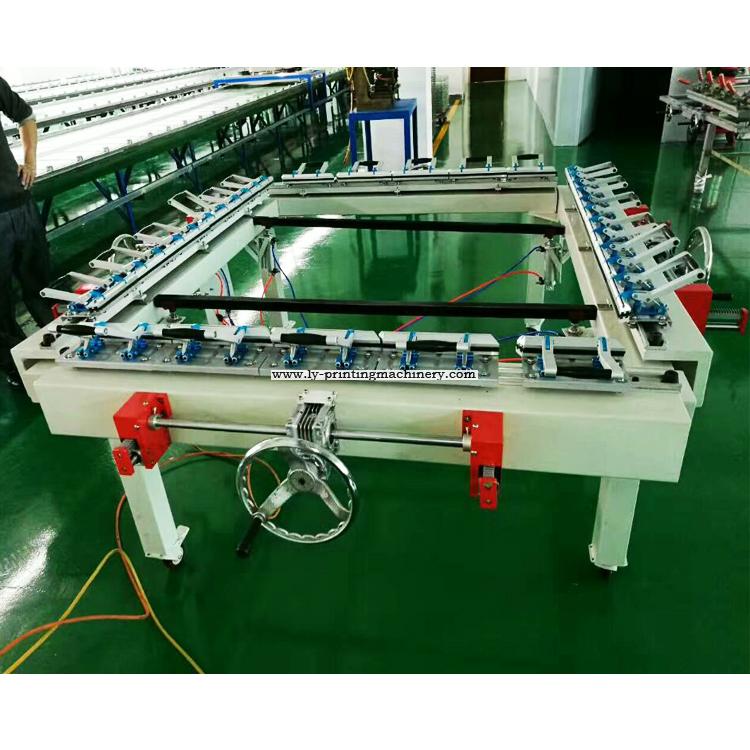

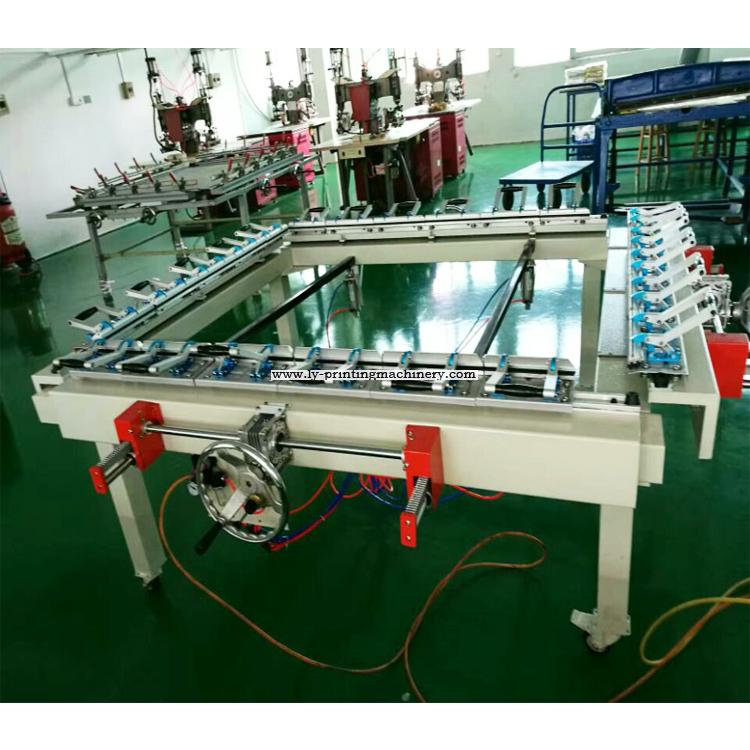

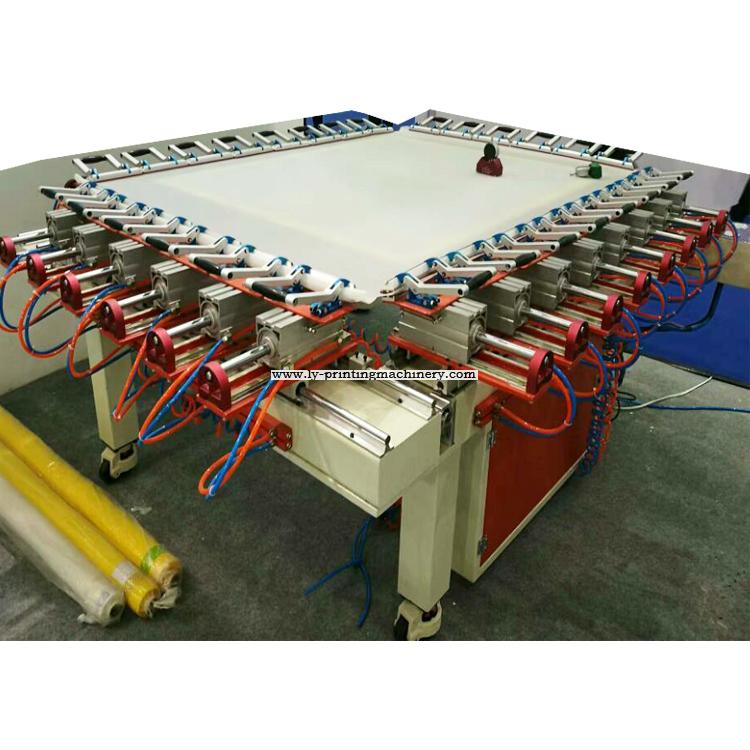

Pneumatic Screen Stretching Machine

Pneumatic Screen Stretching Machine

The first step is tightened silk onto Screen frame made by Aluminium frame, Wooden Frame, Steel frame with Tighten silk machine; Air-controling to hold Metal shelf ensure contact compactly with silk surface ; Hand-wheel operated to make precision tension . Many frames to be tightened meantime ensure same silk tension and correct overprint.


LY-1200LW
1.Max tighten area：1000×1200mm.
2.Dimension：1200×1400×800mm.
3.Net weight：85kg.
4.Max silk tension：30N/CM.

LY-1600LW
1.Max tighten area：1200×1600mm.
2.Dimension：1300×1700×800mm.
3.Gross weight：270kg.
4.Max silk tension：30N/CM.
5. Packing Size:1800*1100*650mm

LY-1500LW
1.Max tighten area：1500×1500mm.
2.Dimension：1600×1700×800mm.
3.Gross weight：270kg.
4.Max silk tension：30N/CM.
5. Packing Size:1800*1100*650mm

LY-2200LW
1.Max tighten area：1700×2200mm.
2.Dimension：1800×2300×800mm.
3.Net weight：400kg.
4.Max silk tension：30N/CM.

LY-2300LW
1.Max tighten area：2300×2300mm.
2.Dimension：2450×2450×800mm.
3.Net weight：600kg.
4.Max silk tension：30N/CM.

Advantages:
1. High strength frame made by aluminium alloy.
2. Easy to adjust tighten silk area by pushing and pulling leader of machine.
3. More uniformity tension to keep printing quality by air to raise up silk.
4. Hand draught silk so that get more propriety tension .
