Product description: LY-S100R-2
Inquiry Now

PRODUCT INTRODUCTION

Describtion

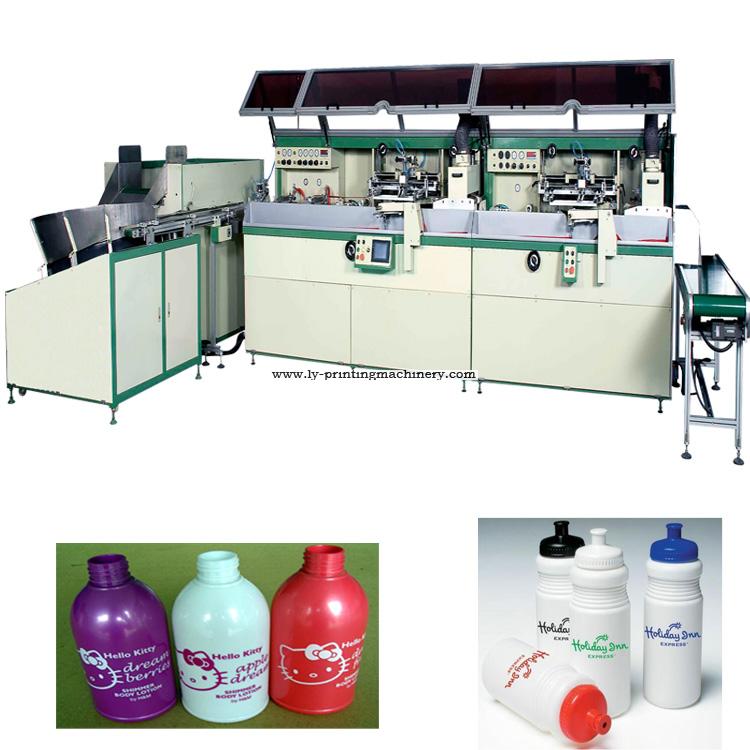

LY-S100R -2 color full automatic screen printer for plastic bottle

1.The machine is specialized design for printing the round or oval bottles, with easy operation and stable.

2. Feeding machine can load product to the screen printing machine automatically..fully automatic feeding, flame treatment, UV screen printing and UV curing.
3. It is a mechanical conveyer ,With touching control panel operation , easy to operate the machine. Fast adjustment, easy operation. Fast printing,speed:5000pc/hr.
4. Fully automatic,It will alarm when the machine without product loading and no printing without product. it can save energy.
5. All components and control system are from Germany and Japan, guarantee the quality of the print.
6. It is suitable for print round/oval product printing such as the cosmetic bottles, drink bottles, cans ect

Parameter
1 Model No: LY-S100R-2
2.Printing colors: 2 color
3.Printing degree:360
4.Max printing diameter :100 mm
5.With flame treating and UV curing system
6.With unloading system and feeding system
7.Max Printing speed:4000-5000Pcs/Hr
8.Air pressure:0.6-0.8Mpa
9.Power: 380V
10.Operation:Full Auto
11.Weight: 1850（kg）
12.Dimensions: L:2500×W:1000×H:1500mm

All main parts are imported
1. MAIN MOTOR----SITI (Italy)
2. PLC---- Omron (Italy)
5. Switch---- Schneider (France)
6. CONTACTOR----: Schneider (France)
7. RELAY----Idec (Japan)
8. INVERTER----Omron (Japan)
9. UV CURING ----Primarc (Britain)
10. PNEUMATIC---Festo (Germany
