> Silk screen printer

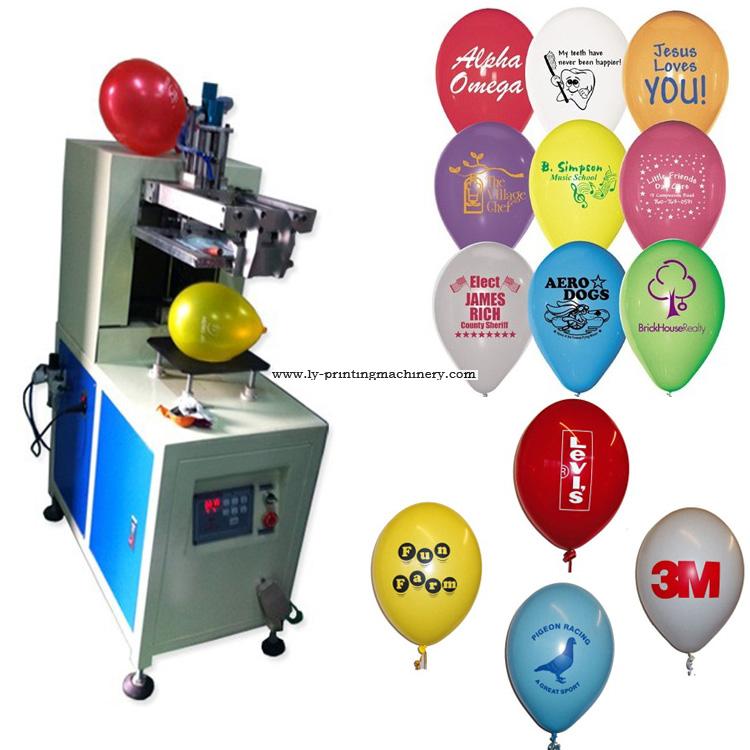

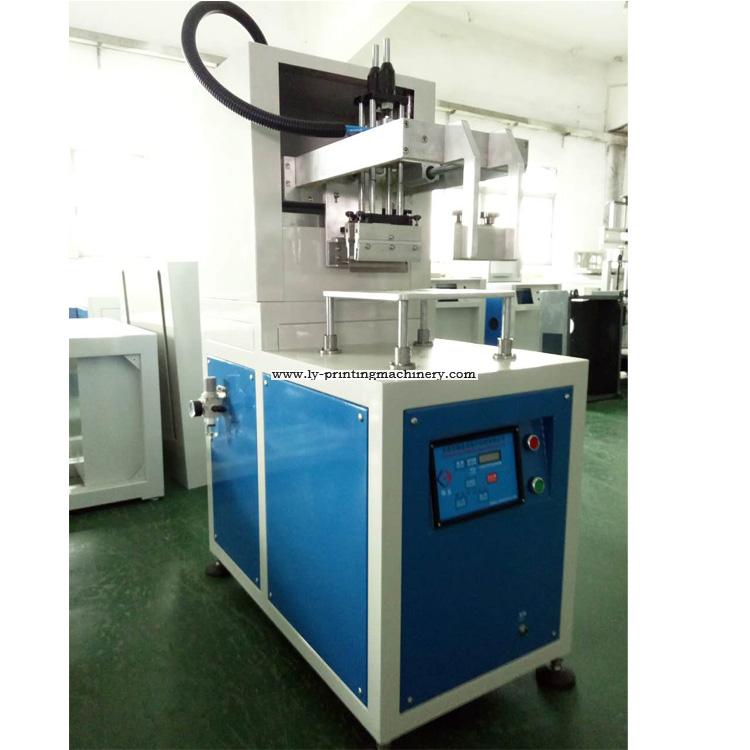

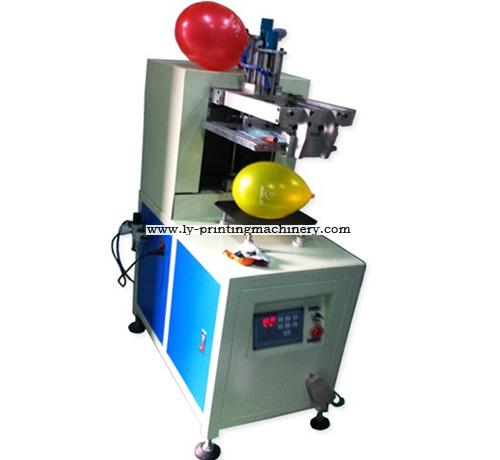

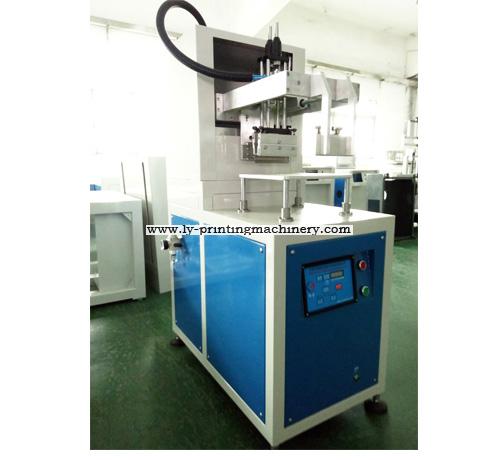

1 color Balloon special screen printer

Balloon 1 color screen printer
special screen printer
Product description: LY-1515
Inquiry Now

PRODUCT INTRODUCTION

Specification:

1.Model:LY-1515
2.Max screen Frame size:280x 360mm
3.Worktable size:250x 250mm
4.Standard Screen Frame size:210x 360mm
5.Max printing Size:150x 150mm
6.Worktable stroke of Down/up:70mm
7.Support plate Diameter:150mm
8.Workable squeegee:5x 25mm
9.Standard Squeegee holder:100mm
10.Printing Speed:1350 pcs/ hour
11.Power:50W
12.Voltage of source:220V/ 1 phase 50/ 60 HZ
13.Net Weight:90Kg
14.Dimension:90x 60x 132 cm
15. Package Size: 95X 92X 138CM=1.21CBM

Feature

1. Low energy consumption, high efficiency, easy operation
2. Straight-type structure
3.Pneumatic and electrical components are stable and reliable
4.With foot switch printing function

5.Squeegee has two working conditions,stop front and stop back
