> Automatic printing machine

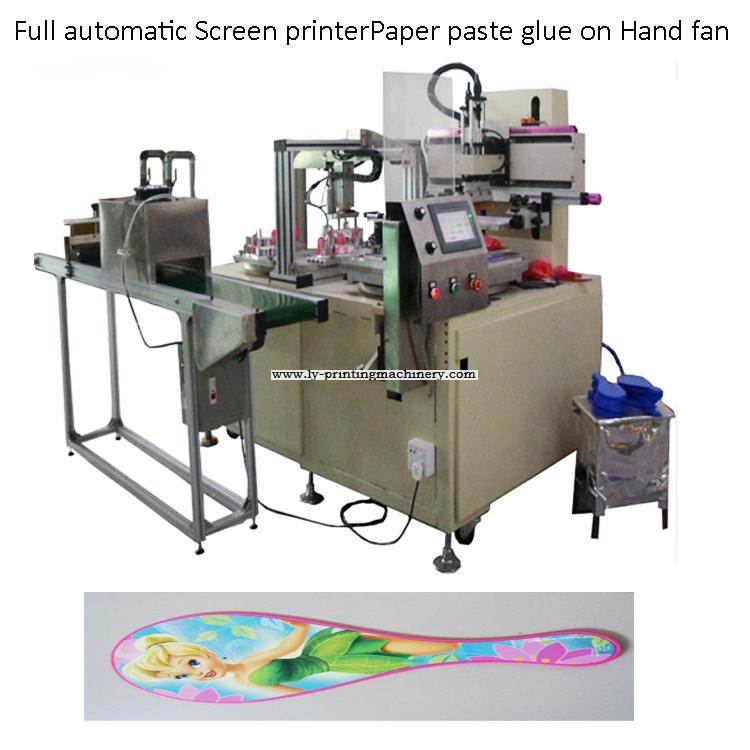

Paper paste Full automatic Screen printer
- Paper paste
- Paper paste glue
- Product description: LY-FZM-1
PRODUCT INTRODUCTION
Description
Rotary screen printing machine (paper paste adhesive machine) (brush plastic silk screen machine):
The turntable screen printing machine with Taiwan cam divider, positioning more accurate.
PLC programmable control system; control panel clarity, simple operation, Chinese and English display.
four-digit counter, the number of statistical printing; clearly shows the current production.
Steel body, the surface of metal paint;
Double-column lifting structure, smooth high precision;
pneumatic network washing device; simple and convenient, do not manually lift the print head, a key wash network.
adjustable left and right travel, Taiwan Yangming photoelectric switch limit;
Scraper / back to Mexico any adjustable blade angle;
scraper constant pressure device to ensure that the printing of the pressure stability;
Workbench right and left, left and right, rotation angle fine-tuning;
frame can be around, left and right, level, height adjustment;
suction stainless steel table, adsorption of the film products;
Up and down with the Taiwan oil pressure buffer, the effective elimination of printing vibration;
Machine running speed, smooth, low noise;
Action mode selection: automatic | semi-automatic | manual;
operation: panel | foot switch; two modes of operation,
Scraper pressure control: constant pressure regulator;
up and down drive: pneumatic;
Left and right drive: electric;

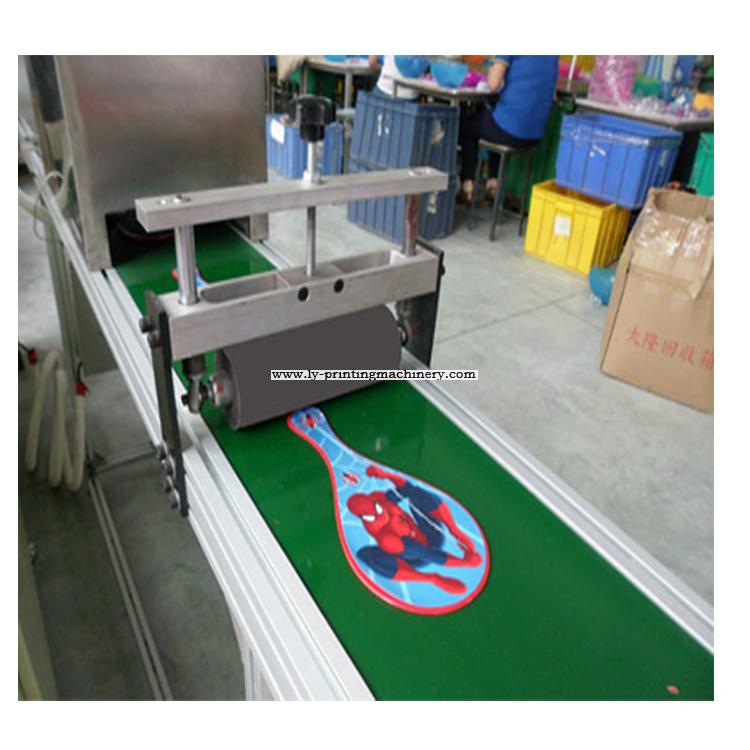

Artificial feeding, automatic Robot machine to the conveyor belt, automatic drying by oven
2.Machine name: Paper paste Full automatic Screen printer
3. Printing area:200*200
4.Printing speed:2000pcs
5.Machine weigt:250KG
6.Machine size：1600*1200*1600mm
7.Voltage:220V
8.Power:1.5KW
Rotary screen printing machine (paper paste adhesive machine) (brush plastic silk screen machine):
The turntable screen printing machine with Taiwan cam divider, positioning more accurate.
PLC programmable control system; control panel clarity, simple operation, Chinese and English display.
four-digit counter, the number of statistical printing; clearly shows the current production.
Steel body, the surface of metal paint;
Double-column lifting structure, smooth high precision;
pneumatic network washing device; simple and convenient, do not manually lift the print head, a key wash network.
adjustable left and right travel, Taiwan Yangming photoelectric switch limit;
Scraper / back to Mexico any adjustable blade angle;
scraper constant pressure device to ensure that the printing of the pressure stability;
Workbench right and left, left and right, rotation angle fine-tuning;
frame can be around, left and right, level, height adjustment;
suction stainless steel table, adsorption of the film products;
Up and down with the Taiwan oil pressure buffer, the effective elimination of printing vibration;
Machine running speed, smooth, low noise;
Action mode selection: automatic | semi-automatic | manual;
operation: panel | foot switch; two modes of operation,
Scraper pressure control: constant pressure regulator;
up and down drive: pneumatic;
Left and right drive: electric;
Artificial feeding, automatic Robot machine to the conveyor belt, automatic drying by oven
Specifiction
1.Model No. LY-FZM-12.Machine name: Paper paste Full automatic Screen printer
3. Printing area:200*200
4.Printing speed:2000pcs
5.Machine weigt:250KG
6.Machine size：1600*1200*1600mm
7.Voltage:220V
8.Power:1.5KW
