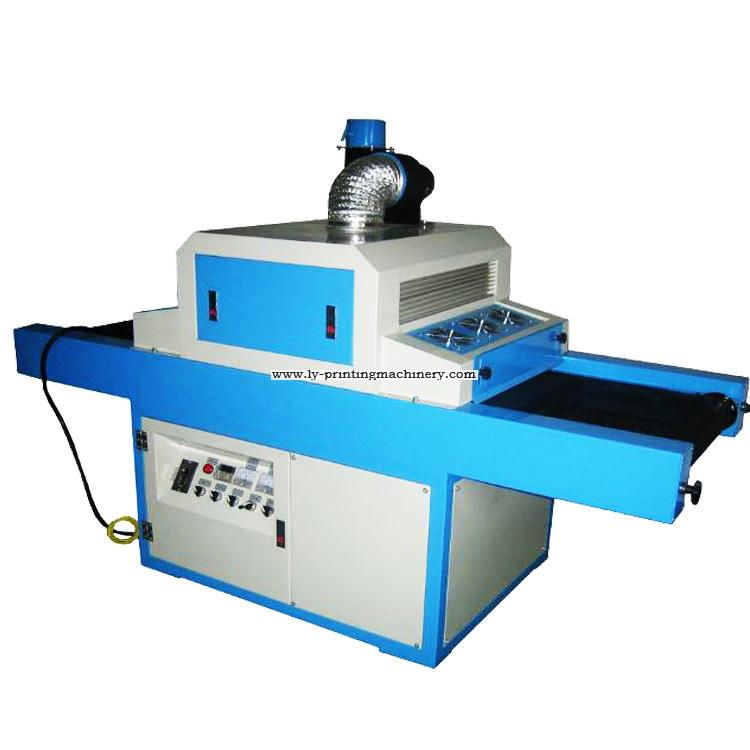

Flat UV curing machine LY-600U

Applicable range

UV Lamp lifetime can reach 1000-1200 hour. Lowest and highest UV lamp operating temperature is 50 degrees Celsius and 75 degrees Celsius respectively. Driven by well-known motor, stepless speed adjustment.The Conveyor speed can be adjusted according to product’s characteristics

Description

Desktop style  UV Curing Model is LY-600U. widely  use for drying  printing UV ink ,UV paper printing ,UV glue ,UV tunnel drying ,UV ink , UV testing .favorable price and high quality ,The machine can add bridge can connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc

Feature:

1.It is adopted independent system for UV lamp , you can adjust the power what you want .
2.The Conveyor Speed adjustment is stepless , It can adjust speed depend on your requirement.
3.It with emergency switch so that quickly deal with emergency.
4.The machine can add bridge can connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc
5. Conveyer belt made by tefulong materials, UV Lamp lifetime can reach 1000-1200 hours.
6.It can add unloading system ,so that save workers labor.

Tech  Parameter
1.Model NO:LY-600U
2.UV Drying  products：600*100*2000mm
3.Conveyor belt size：L2000* W600MM
4.UV Lamp power：2PCS*3KW /380V
5.Total wattage：7.5KW
6.Wind fan wattage: 500W/380V
7.Motor wattage：1000W/1P/380V
8.Conveyor speed：0~10m/min
9.Speed change ways：Continue
10.UV Machine  Dimension：L*W*H2020*800*1350MM
11.Weight：250kg
