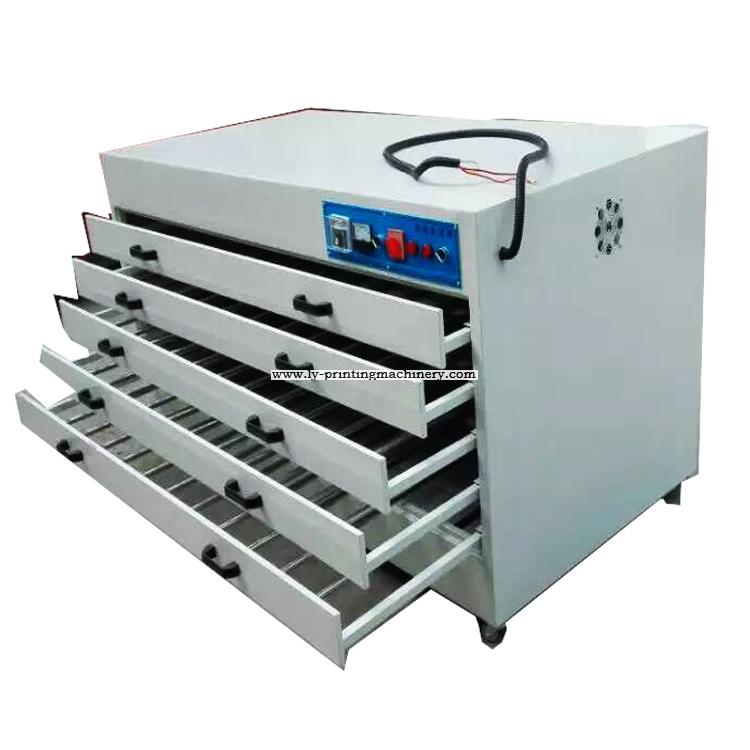

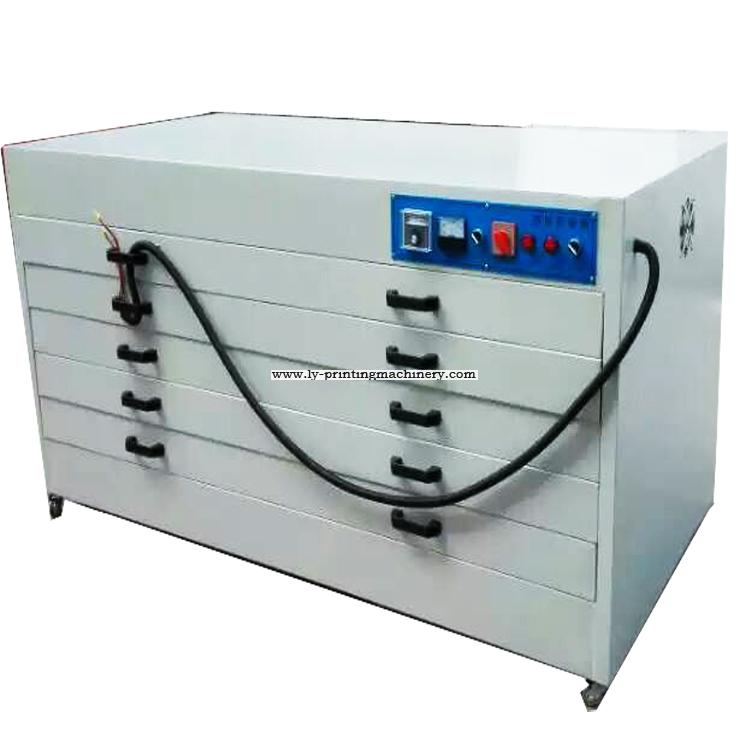

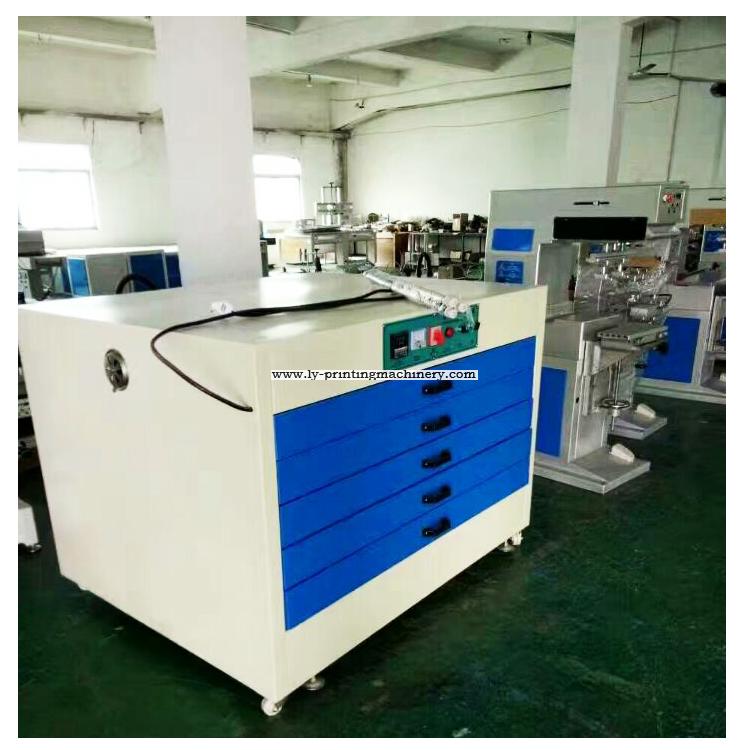

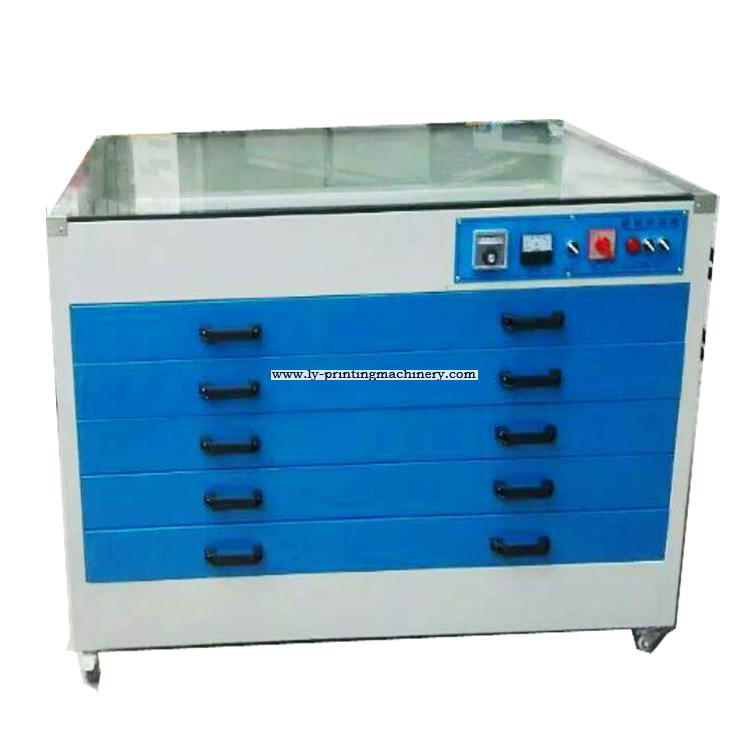

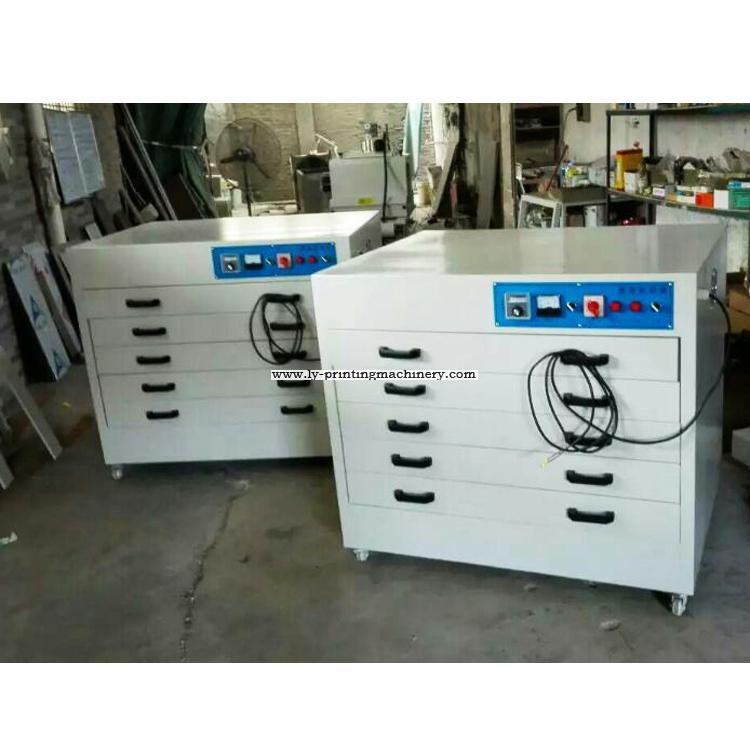

Screen Stencil Drying Oven
- screen plate drying oven
- Product description: LY-1500DO
PRODUCT INTRODUCTION
Feature
1.Suitable for the drying of plate and screen stencil.
2.Vertical current blowing at constant temperature.
3.Automatic electric constant temperature control system makes temperature distributing equally.
4.Energy-saving with the perfect heat insulation system.
5.With fine design,stable operation,safe and reliable running, and high efficiency
1.Air in the cabinet convects up and down.
2.Electronic auto temperature controlling system installed.
3.The uniform temperature available anywhere in the cabinet.
4.High efficient heat insulation system saves the power.
5.The good-looking appearance, reposeful run, reliable and high efficient.
Parameter
1. Model No:LY-1200DO
2. Cabinet size:900×1200mm
3. Power of heater:4kw
4. Power supply:220V/50Hz,
5.Outline dimensions;1250×1050×900mm(L×W×H)
6. Weight:120KG
1. Model No:LY-1500DO
2.Cabinet size:1200×1500mm
3.Power of heater:4kw
4.Power supply: 220V/50Hz,
5.Outline dimensions;1550×1250×1100mm(L×W×H)
1.Suitable for the drying of plate and screen stencil.
2.Vertical current blowing at constant temperature.
3.Automatic electric constant temperature control system makes temperature distributing equally.
4.Energy-saving with the perfect heat insulation system.
5.With fine design,stable operation,safe and reliable running, and high efficiency
1.Air in the cabinet convects up and down.
2.Electronic auto temperature controlling system installed.
3.The uniform temperature available anywhere in the cabinet.
4.High efficient heat insulation system saves the power.
5.The good-looking appearance, reposeful run, reliable and high efficient.
Parameter
1. Model No:LY-1200DO
2. Cabinet size:900×1200mm
3. Power of heater:4kw
4. Power supply:220V/50Hz,
5.Outline dimensions;1250×1050×900mm(L×W×H)
6. Weight:120KG
1. Model No:LY-1500DO
2.Cabinet size:1200×1500mm
3.Power of heater:4kw
4.Power supply: 220V/50Hz,
5.Outline dimensions;1550×1250×1100mm(L×W×H)
6.Weight:145KG
