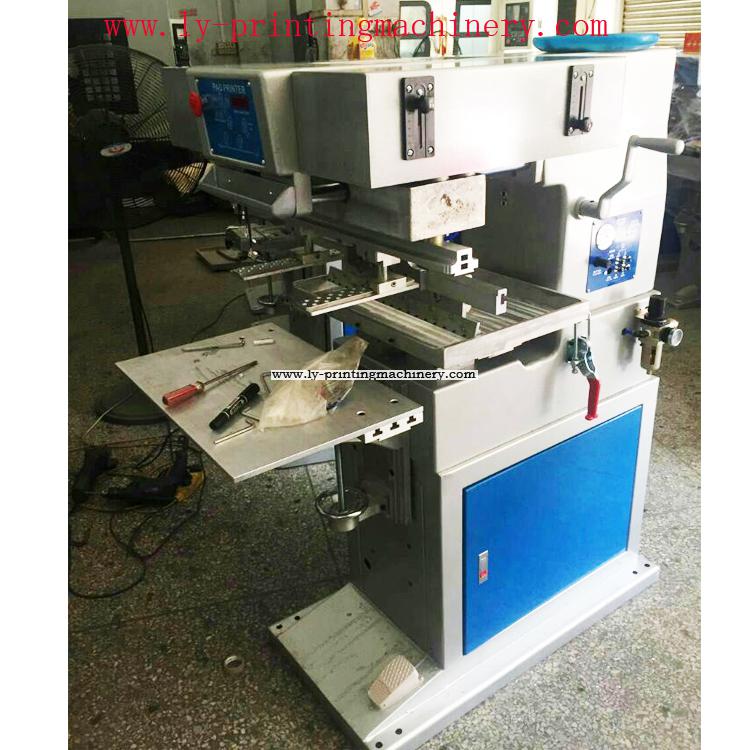

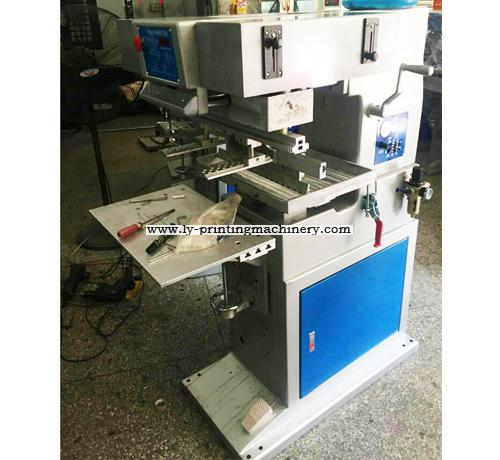

1 color fry pan pad printing machine

Description:

. LY-MP1-S350 with big steel plate size, the max printing size can be reached : 330*330mm, Machine body adpot cast aluminium , so that the life is durable, it can print multicolor , high printing quality, it suitable for printing fry pan, pot,cooker and other big size products.

All main parts are imported , cylinder from SMC

Advantages:
1.Microprocessor control for each function makes operation easy;
2.4-Digit auto counter built-in;
3.Coin aluminium structure ensures sturdiness operation;
4.ink roller used for ink applying is easy to remove and clean;
5.Independent stroke and speed adjustment for pad up/down;
6.Auto balanced doctor blade ensures that ink can be scraped cleanly and completely;
7.Adjustable printing speed meets different printing requirements;
8.It is available that ink roller keeps working while pad doesn't lower down that so that ink will not easily become dry

Specifications:

1. Model No: LY-MP1-S350
2. Operation: Pneumatic
3. Printing Colors: 1
4. Plate area: 350*350mm
5. Printing area; 330x 330mm
6. Printing diameter:330mm
7. Max printing speed: 1500PCS/H
8. Wattage: 220V/ 50Hz:
9. Air pressure: 0.4-0.6Mpa
10. Machine size(LxWxH):1500×680×1480mm
11. Machine weight: 315kg

12. Cylinder is from SMC in Japan

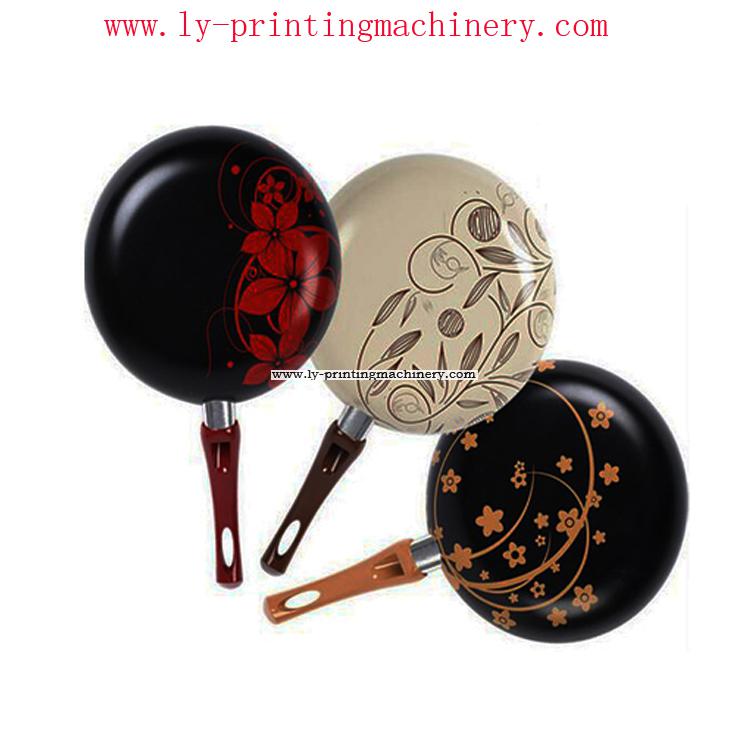

Printing for outside

Printing for outside
