> Pad printing machine

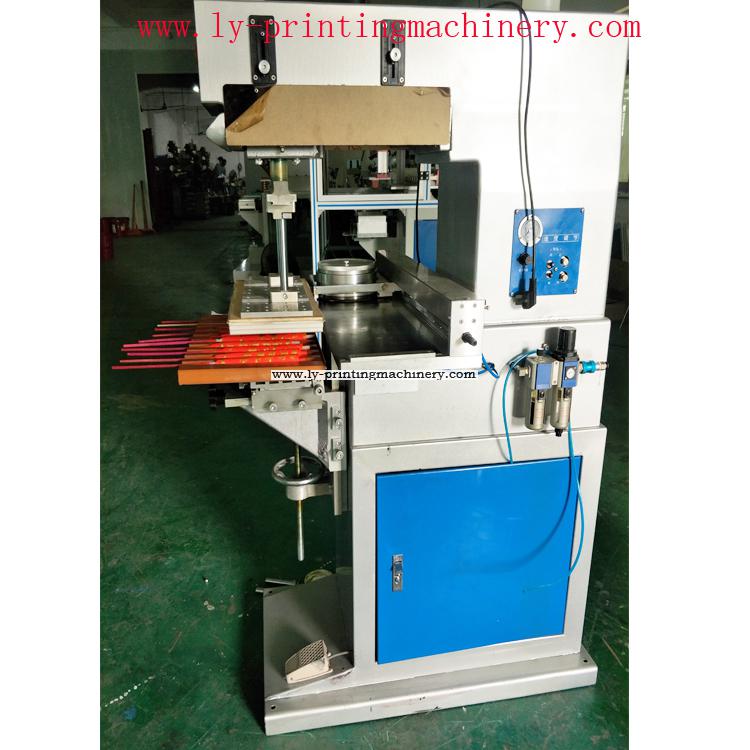

Candle special 1 color pad printing machine

Candle pad printer
Max printing size:210*530
All shape can be printed
High printing quality
Product description: LY-MP1-780C
Inquiry Now

PRODUCT INTRODUCTION

Description:

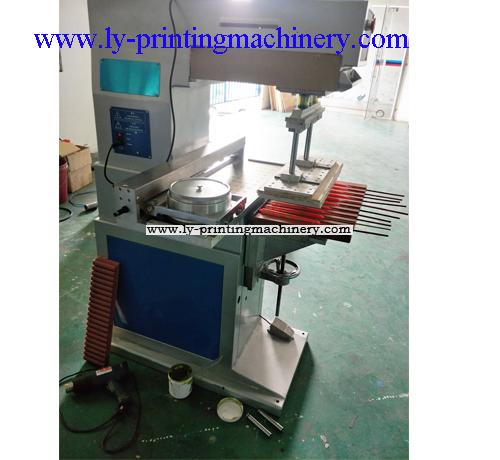

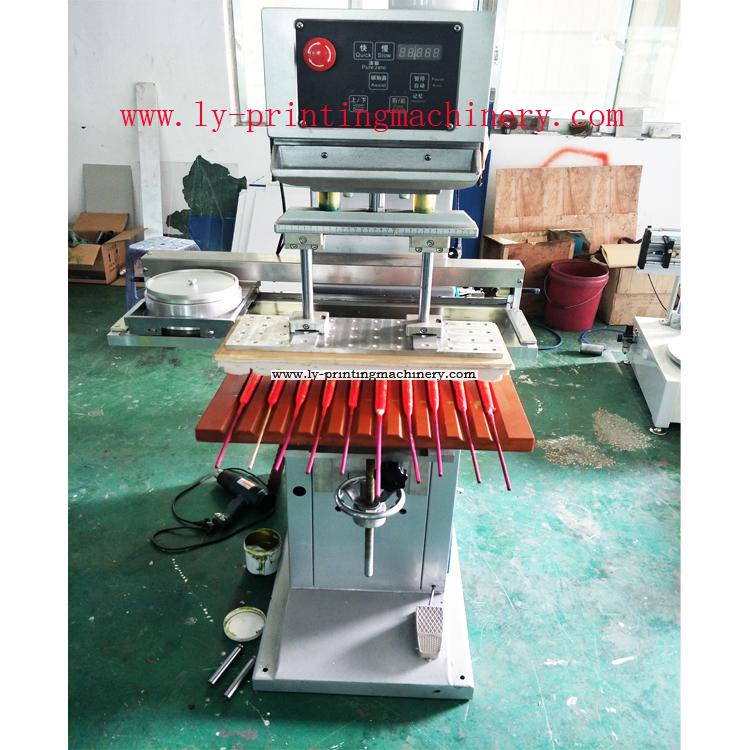

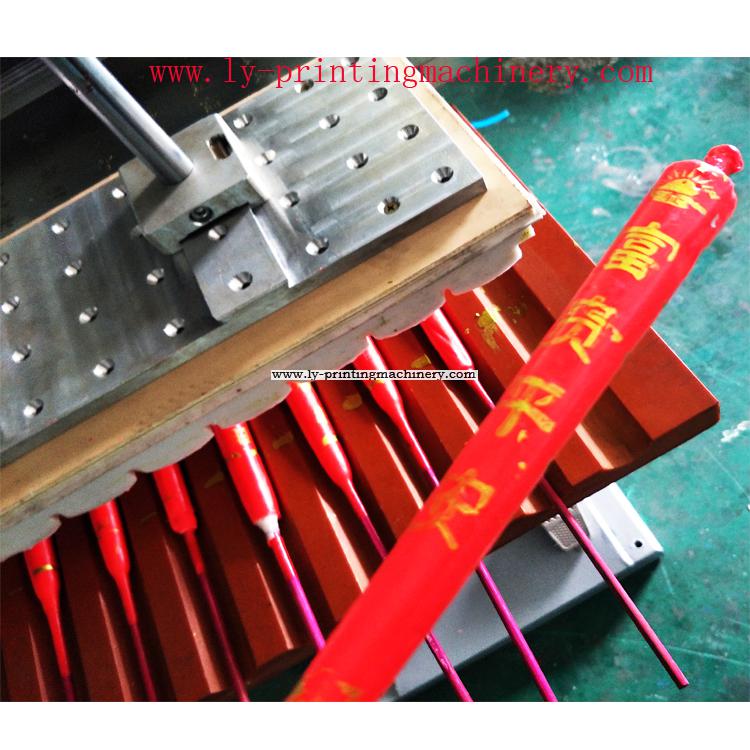

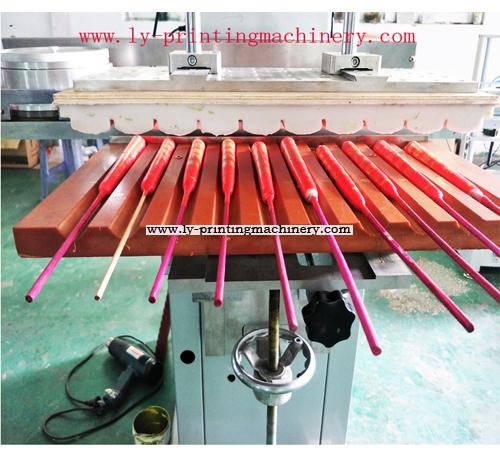

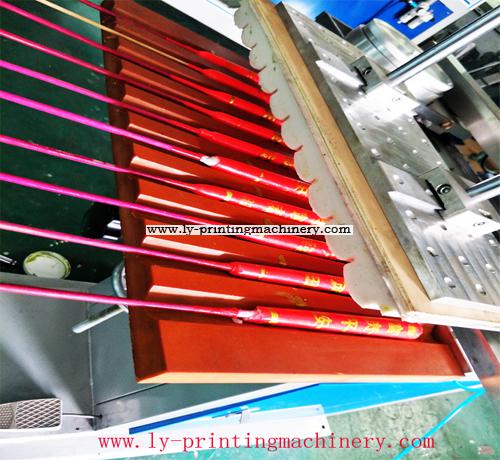

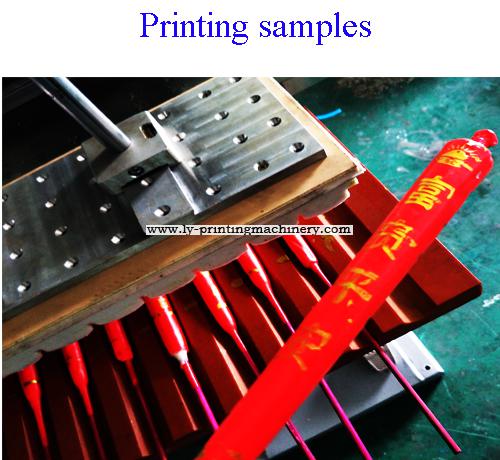

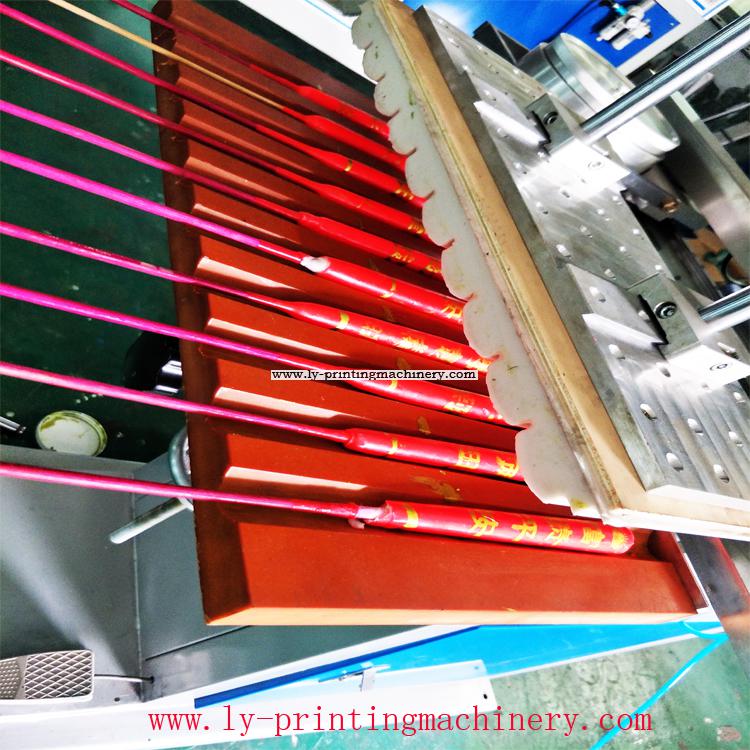

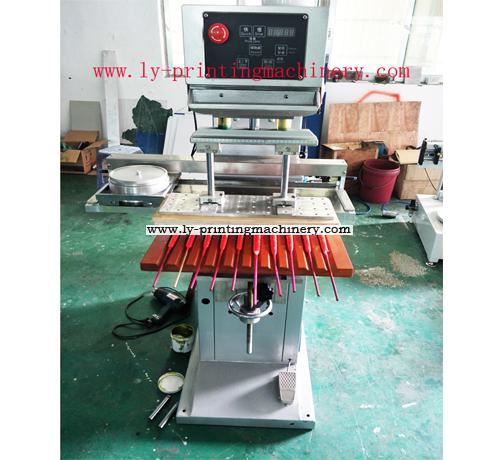

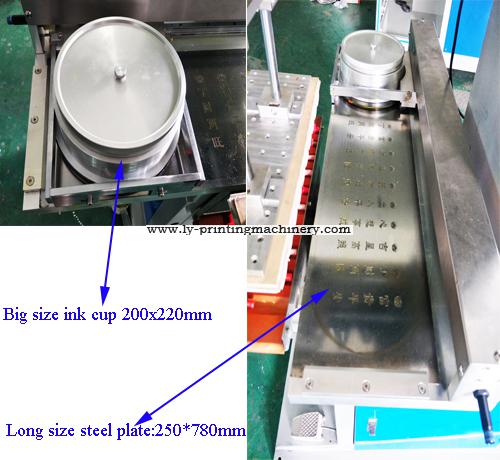

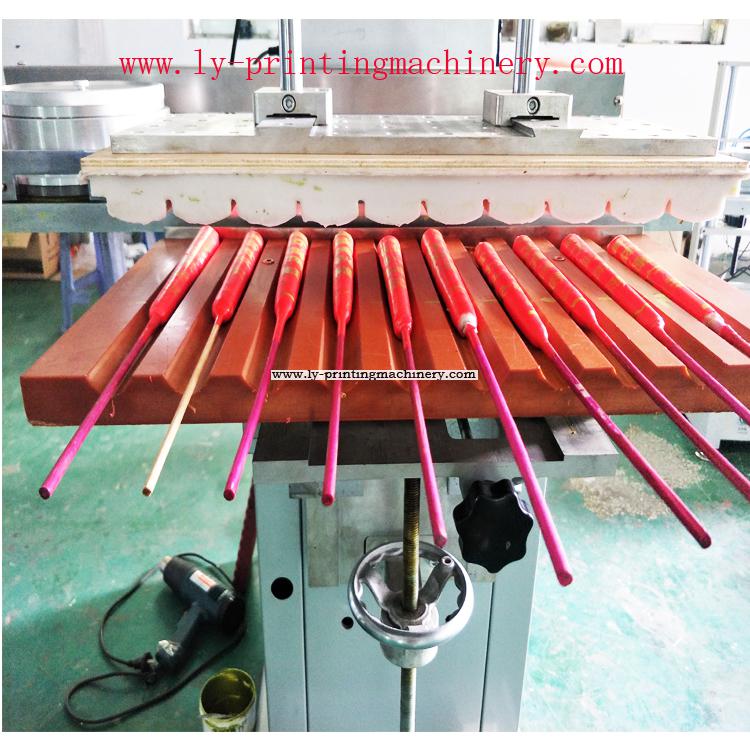

Candle special 1 color pad printing machine LY-MP1-780C is adpoted big size closed ink cup 220mm diameter, the steel plate is very long W250*L780mm , so that it can print many Candles by one time, it can be printed different shapes Candles with different size, high printing quality, easy operation.

It with closed ink for cantaining ink, very environmental ,can save 90% thinner and 60% ink, no smell, beautiful appearance.

Tech Parameters:

1. Max. Plate size: 250*780mm
2.Operation:Semi-auto (Pneumatic）
3. Sealed cup diameter:220mm
4. Max Printing area: 210*530mm
5. Max. Printing speed: 1600PCS/h
6. Printable colours:1
7. Air pressure: 6 Bar
8. Machine Size:100x90x139cm
9. Machine Weight: 180Kg
10.Packing Size:139*103*151cm
11. Wattage: 220V/ 50Hz 110V/60Hz
