Digital control Bucket cup bottle UV oven

Applicable range

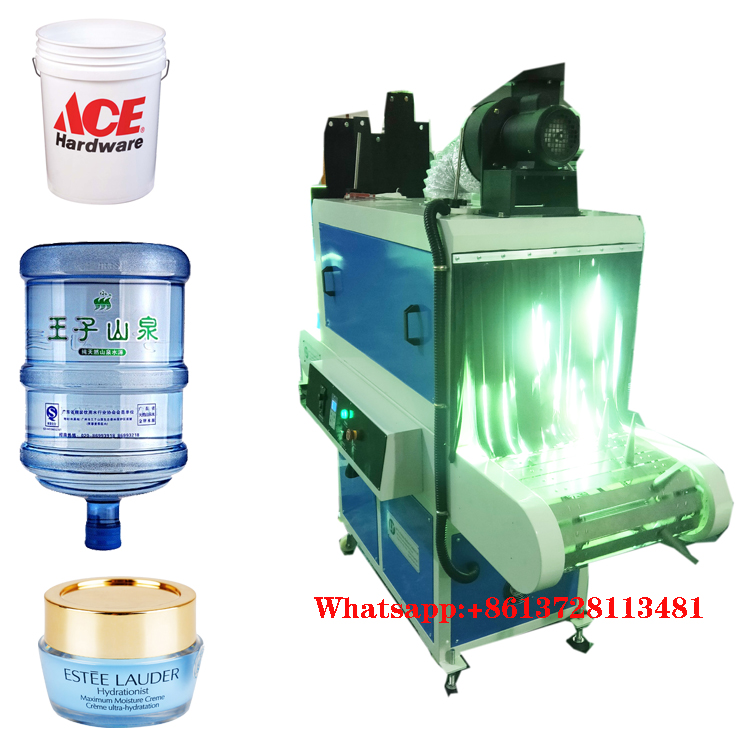

Digital control Bucket cup bottle UV oven  LY-58FP-02 is suitable for drying UV ink on round,oval,flat bottle ,cup,tube and other round products, also it can dry plane products. application is very widly.Reliable, safe and easy to operate
It is widely used in the cosmestic, house hold product bottles final step printing curing. The tooling holder is removable so it is also suitable for flat products curing.

Advantages:

1,It with digital control system,so that it can any power you want , High powerful ,fast drying
2.Suitable for the UV Ink printing cure,,UV paint ,UV varnish,UV glue on round,oval,flat bottles bucket,cups and cylindrical substrate.
3.By adjusting its lighting angle, it can also be used in the UV ink printing cure of flat or curved substrate; 4.Enclosure construction with conveyor. Apply half light (3KW) or full light (6KW) tubes, the distance is adjustable;
5.On the top of the machine equipped with an exhaust system, you can vent the inside heat of curing chamber .

Specifications

1.Model :LY-58FP-02
2.Max product height:20-510mm ( can be customized)
3.Max product width:410 ( can be customized)
4.Conveyer size: L3500xW430mm
5.Bottle mouth diameter:Φ12-380mm( can be customized )

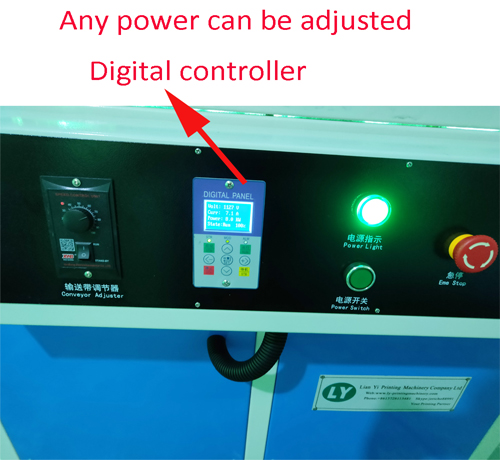

6.With digital control ( any power can be adjusted )
7.Speed:1800~3000Pic/Hr

8.Rout speed:0-10m/min
9.UV lamp power:5KW-10KW ((Primarc ,UK)
10.Power supply:380V
11.Machine size:L3600xW950xH1980mm
12.Machine weight:459kg
13.Packing Size:3750*1060*2220mm
