> Pad printing machine

Dinner ware ceramic plate bowl fast 4 color pad printer with servo table running

Ceramic bowl plate dish tray logo printing
4 color printing at the same time
Inside and outside both
High speed
Product description: LY-MP4-CFT01
Inquiry Now

PRODUCT INTRODUCTION

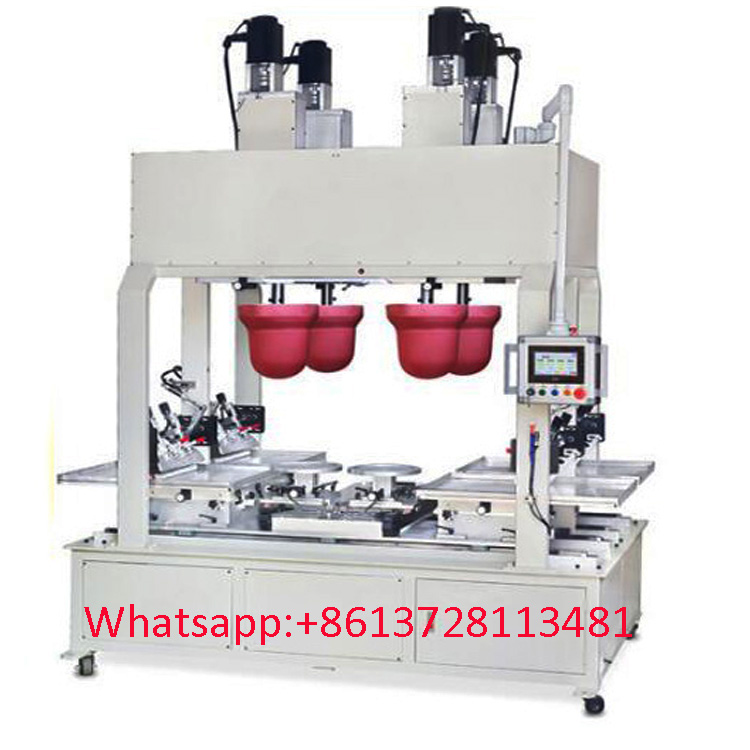

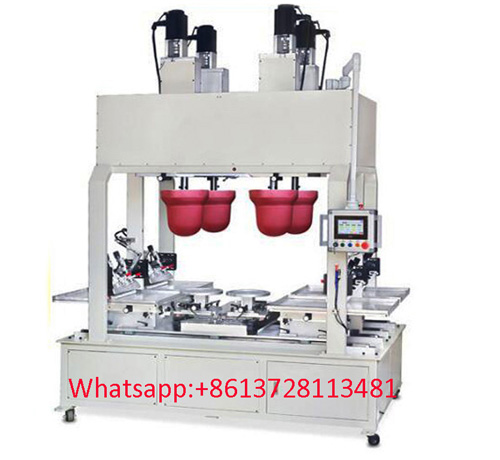

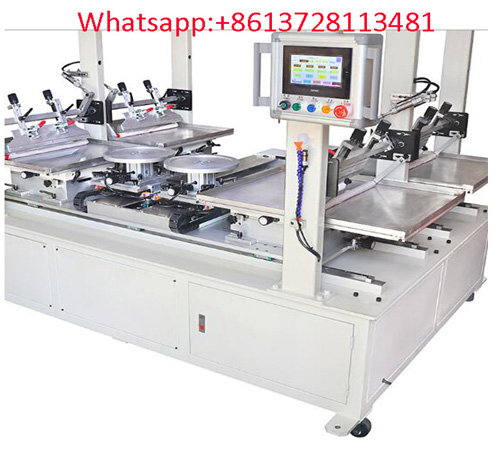

Dinner ware ceramic plate bowl fast 4 color pad printer with servo table running LY-MP4-CFT01

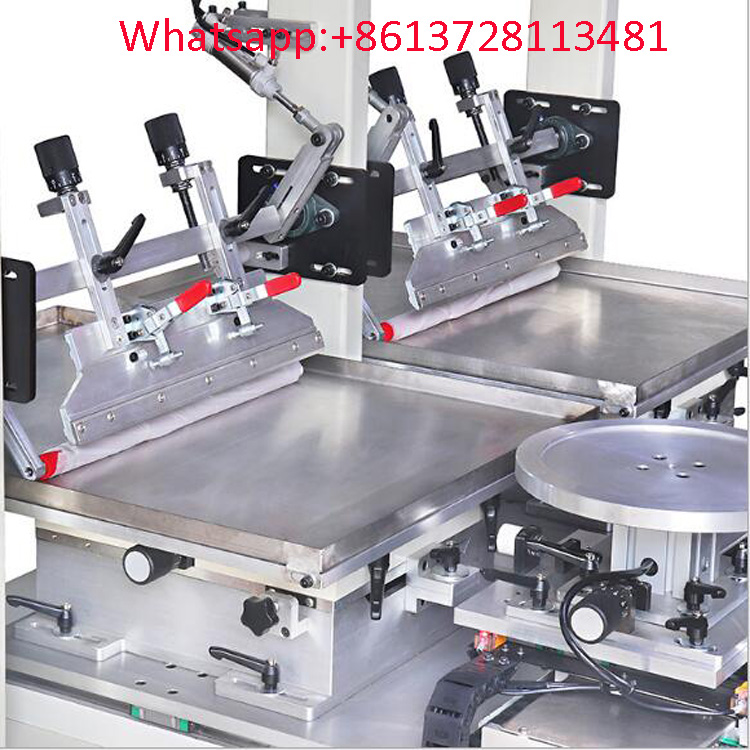

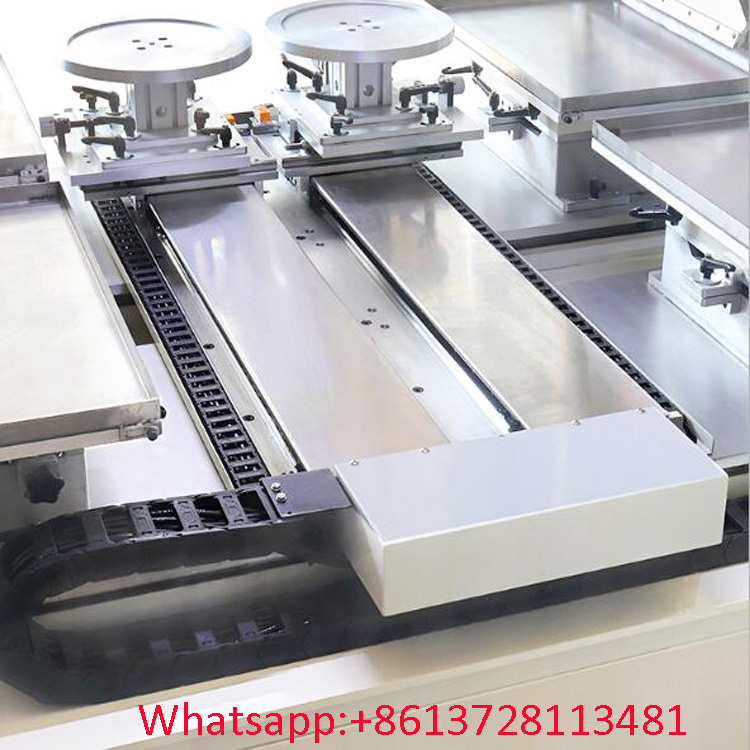

This machine with servo table running , there are 2 stations on the table, so that you can put new products onto another station once the previous one finish printing ,then it will save time to wait .

Max printing speed can print 350PCS per hour

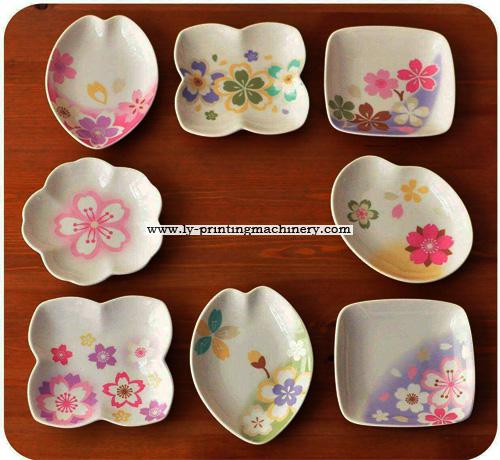

LY-MP4-CFT01 is most suitable for printing all kinds of shape ceramic,plastic ,melamine ,metal , wooden plates, bowls, dishes,pans ,pots ,fry pans ,trays, spoon...Etc, with high printing quality,max printing area can reach 380*380mm, Very powerful machine. it can be printed inside ,outside ,edge and oddly shape.

Tech Parameters:

1.Model: LY-MP4-CFT01

2.Max. Plate size: 400*400mm

3.Max Printing area: 380*380mm

4.Max. Printing speed: 350PCS/h
5.Printing colors: 4
6.Open tray stroke:500mm
7.Shuttle stroke:660mm
8.Machine Size:2600x1460x2500mm
9.Machine Weight: 1650Kg
10.Voltage power: 220V/ 50HZ
11. Air consumption:8 bar
12.With 2 servo motors left and right by PLC control
13.With 4 servo motors for up and down by PLC control

14. With Servo table running

15. With CE certificate

Feature

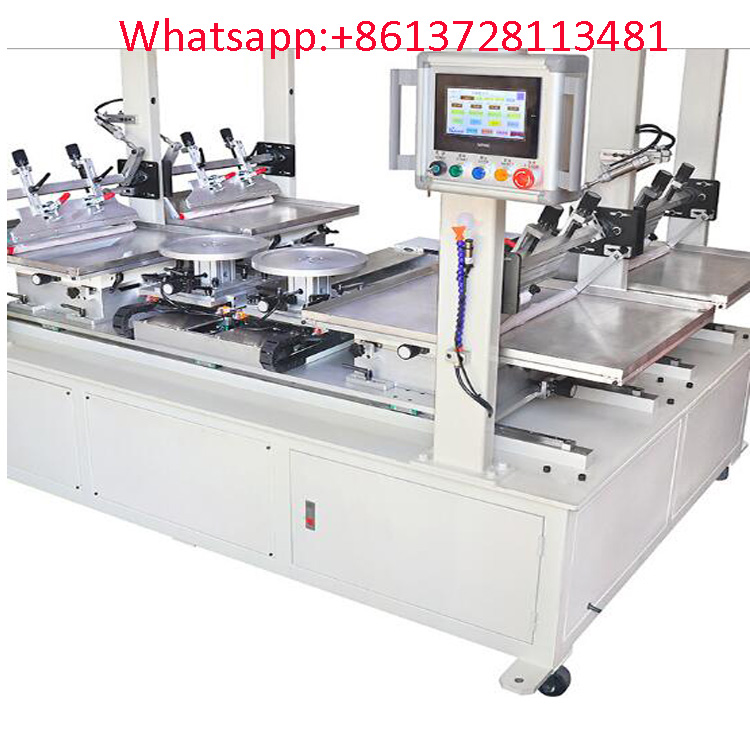

This machine is non-standard big size 4 color pad printer with PLC control system, it is adopted micro digital computer to control , With servo motor to run for shuttle working, High quality with precise printing effective.

Application

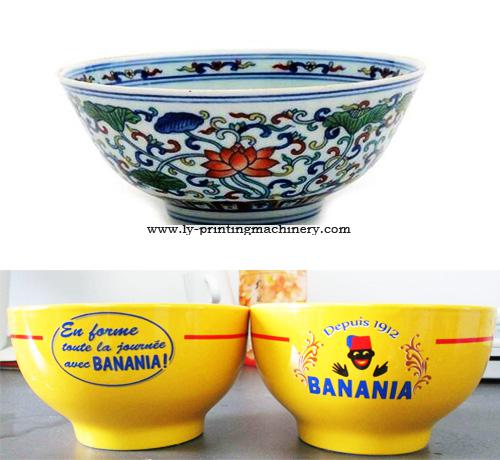

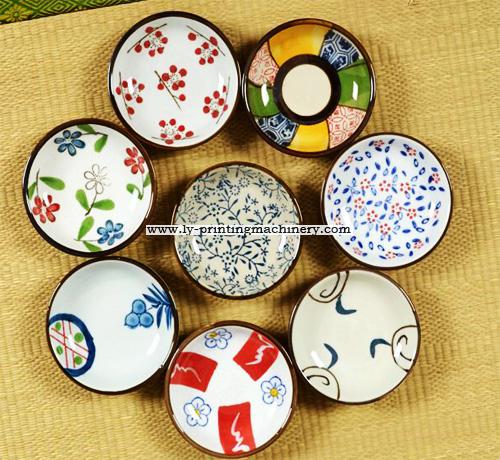

With big open tray size , printing area can reach 380x380mm, suitable for printing variety ceramic bowl, ceramic plate, Kitchen ware, Pan,bowl, household ETC.
