> Pad printing machine

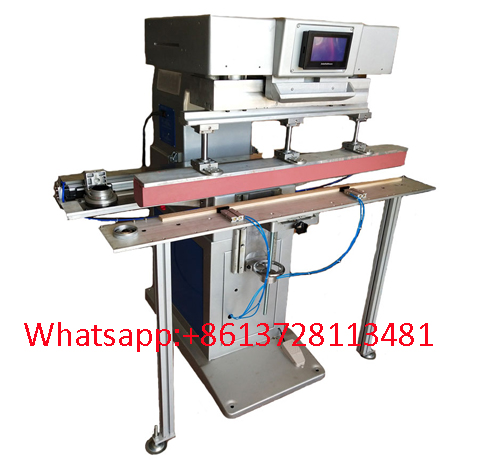

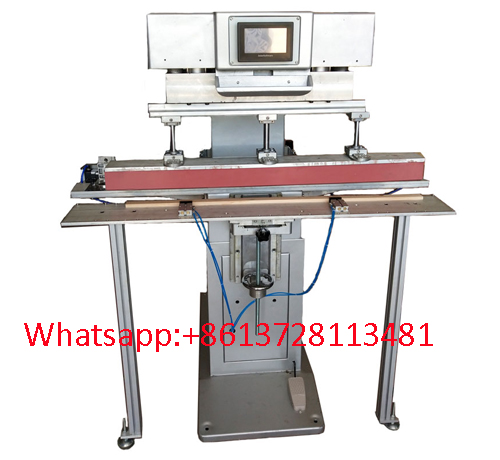

1200x85mm long size 1 color pad printer
- transverse closed cup system
- Printing area: 1200x85mm
- Long size pad printer
- PLC operation
- Product description: LY-MP1-1300C
PRODUCT INTRODUCTION
LY-MP1-1300C is one color long closed ink cup pad printer with transverse system
It is used for printing special parts, too lenth, too width, ink cup could transverse flow moving, so that, a most big size pars it is can pad printing also.
It with PLC operation ,easy to use, high printing quality , with powerful printing pressure, beautiful results.
It can be printed big area: 1200x85mm , one time can finish all printing size.
It suitable for printing all kinds of products , plastic parts, rulers,flutes, solse ,catheters, syringes, pen clips, pen barrels, reflector tubes, electrical, electronic housings, badminton rackets, pvc/rubber pipes and pvc casing etc.
Tech specification:
1.Model NO LY-MP1-1300C
2.Operation ：PLC
3.Printing Colors：1
4.Max. printing area :1200x85 mm
5.Plate area : 1300x100mm
6.Closed ink cup diameter：￠90mm
7.Max printing speed：800PCS/H
8.Wattage：220V/ 110V
9.Air pressure: 6 Bar
10.Machine size:L1220xW920xH1510mm
11.Machine weight: 255kg
12.With CE certificate
