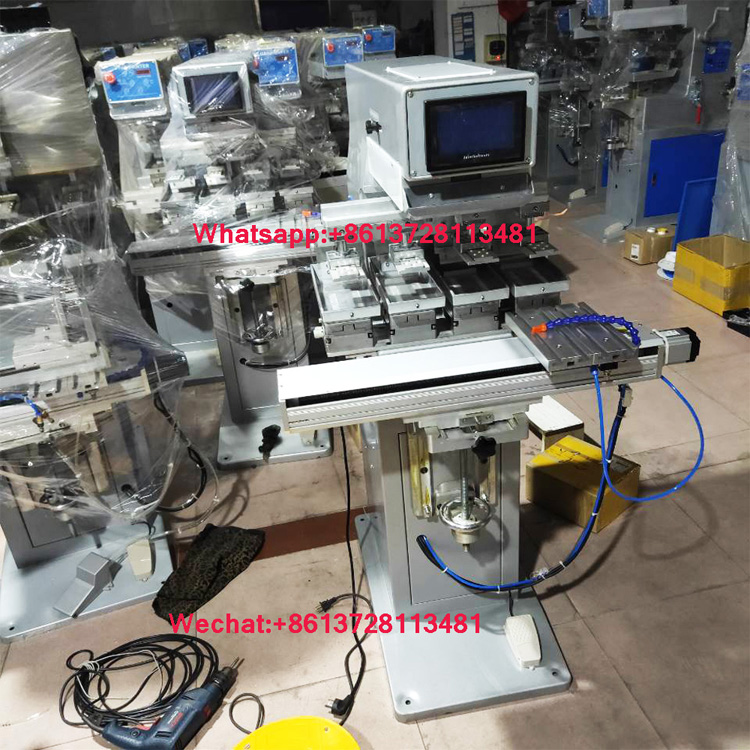

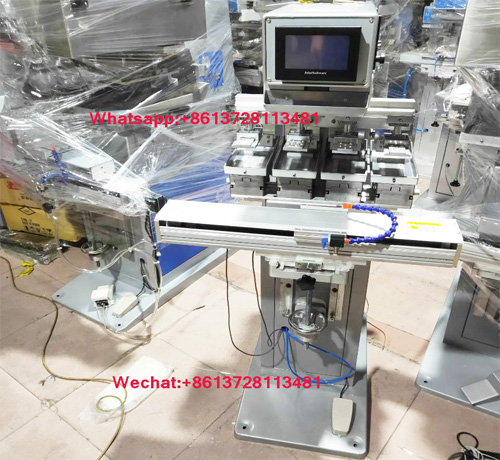

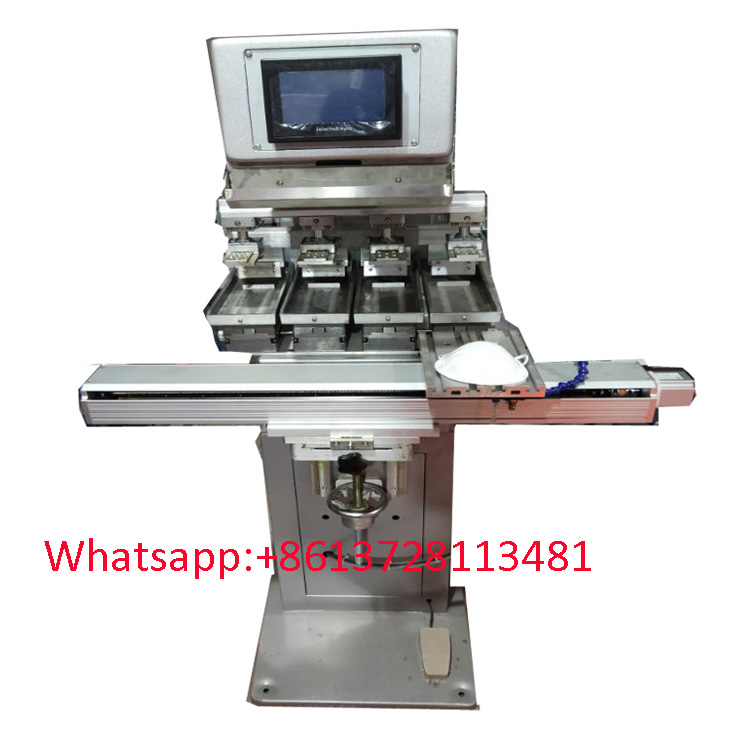

Full Servo fast 4 color pad printer

Description:

LY-MP4-T150S is a fast 4 color full Servo system pad printer , the printing speed can reach 1800-2000PCS/Hour, Running is very stable ,high quality printing ,PLC operation.

Application

Printing items: toys, gift products,promotional items ,face mask , pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC.

Advantages:
1、Each function controlled by microprocessor ;
2、Five-digit auto counter built in;
3、Coin aluminium structure make solid and weight light;
4、ink roller is used for ink covering;
5、Independent pad up/down stroke and speed adjustment;
6、Auto balanced doctor blade ;
7、Printing speed adjustable to fulfill various requirements;
8、"Inking twice, printing once" for thick ink film;
9、Able to sweep forward/backward without lowering pad to avoid ink drying at intervals;
10、6-colour ,5 colour ,4-color, 2-color and 1-color printing available;
11、Drying with auto air blowing for easy color registration.
12. SMC Cylinder& FESTO Pneumactic Parts

Specifications

1.Model NO: LY-MP4-T150S
2.Operation: Servo
3.Printing Color: 4
4.Plate area: 100*150mm
5.Printing area; 85*120mm
6.Max printing speed: 1800PCS- 2000PCS/Hr
8.Wattage: 220V/ 50HZ Or 110V/60Hz
9.Air pressure: 0.4-0.6Mpa
10.Machine size: L1220*W920*H1380mm
11.Machine weight:190kg
12. With full Servo system running
