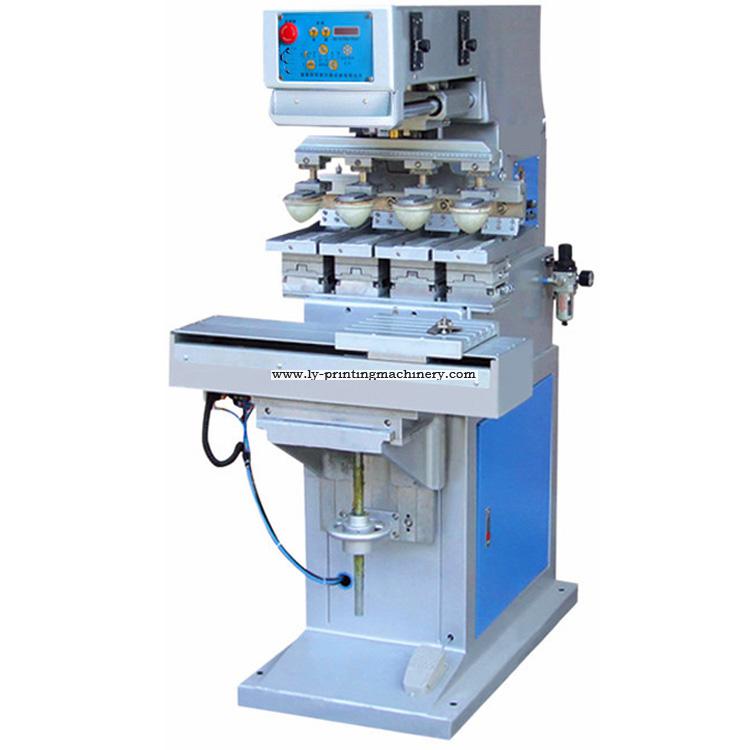

4 colour ink tray pad printer shuttle

Description:

Printing area: plastic products, same as toys, gift products, pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC.

Advantages:
1、Each function controlled by microprocessor ;
2、Five-digit auto counter built in;
3、Coin aluminium structure make solid and weight light;
4、ink roller is used for ink covering;
5、Independent pad up/down stroke and speed adjustment;
6、Auto balanced doctor blade ;
7、Printing speed adjustable to fulfil various requirements;
8、"Inking twice, printing once" for thick ink film;
9、Able to sweep forward/backward without lowering pad to avoid ink drying at intervals;
10、6-colour ,5 colour ,4-color, 2-color and 1-color printing available;
11、Drying with auto air blowing for easy color registration.
12. SMC Cylinder& FESTO Pneumactic Parts

Specifications

1.Model:LY-MP4-T150
2.Max. plate size: 100×150mm；
3.Max. worktable area: 170×200mm；
4.Max. printing area:85×130mm；
5.Max. printing speed: 800pcs/hr；
7.Air consumption: 0.4-0.6Mpa
8.Colour Number: 4；
9.Shuttle stroke: 125mm.
10.Voltage:220V/110V.
11.Machine Dimension:1220*920*1380mm
