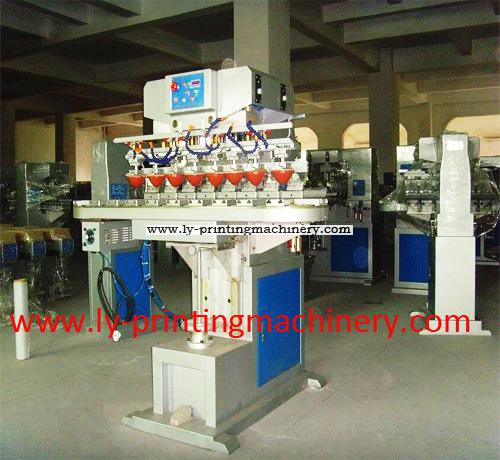

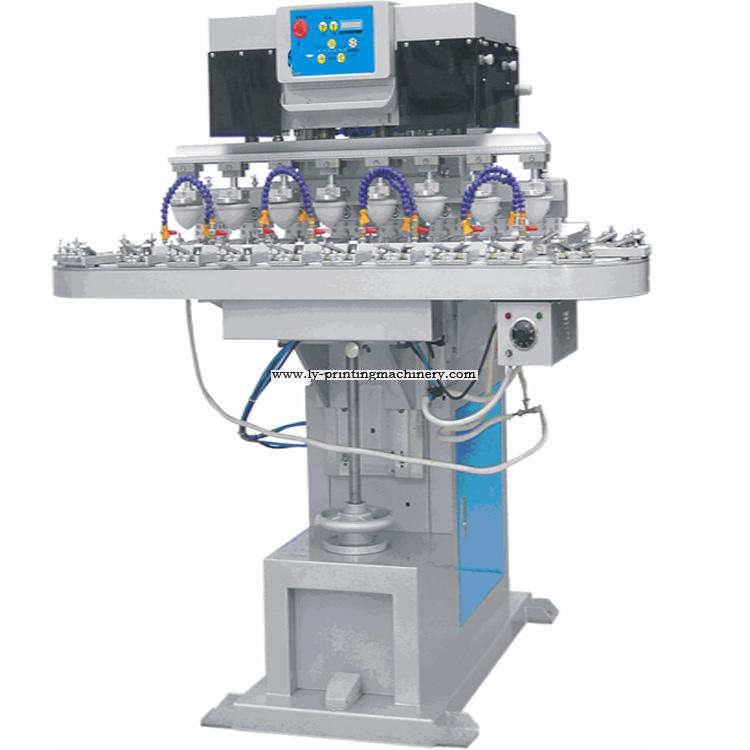

8 colour ink tray pad printer with conveyer

Description:

Printing area: plastic products, same as toys, gift products, pen, PE products, golf ball package products, , household, stationery, electron products, mobile phone, bottle. Metals products, furniture fittings. ETC.

Advantages:
Advantages:
1.Total microcomputer controlled operation;
2.Auto four digit counter built-in;
3.Ink covering by ink roller;
4.Fully coin aluminum structure which is sturdy and long life
5.Independent pad stroke and speed control;
6.Printing speed adjustable to meet with different needs;
7."Inking twice, printing once" to get thicker ink covering;
8. Japen SMC Cylinder & Germany FESTO Pneumactic Parts

Specifications

8 colour ink tray pad printer with conveyer LY-TCY-8
1.Max. plate size:100×200 mm;
2.Max. worktable area:90×125mm;
3.Max. printing area:85×170mm;
4.Max. printing speed:1200pcs/hr;
5.Colour number:8;
6.Air consumption:330Litre/min(6bar);
7.Printing objects dimension:100×140mm.
8.Conveyer stroke:125mm;
9. Station number: 18
10.Machine Size:122*147*152
12.Net Weight:320 Kg
