Two color closed ink cup pad printer with conveyor belt

2 color pad printer
Two color tampo printer
Max printing area::80*135mm
Printing speed:1900PCS/Hr
Product description: LY-TCY2-250C
Inquiry Now

PRODUCT INTRODUCTION

Specifications
1.Model No:LY-TCY2-250C
2.Operation: Pneumatic
3.Printing Color: 2
4.Max. Printing area: 80x135 mm
5.Plate area: 100*250 mm
6.Sealed ink cup diameter: 60 or 90mm
7.Max printing speed: 1900PCS/H
8.Wattage: 220V/ 50Hz 110V/60Hz
9.Air pressure: 6 Bar
10.Machine size: 92×70×138cm
11.Machine weight: 1700kg
12.Packing Size:106*108*156cm
13.Gross Weight:250Kg

Description:

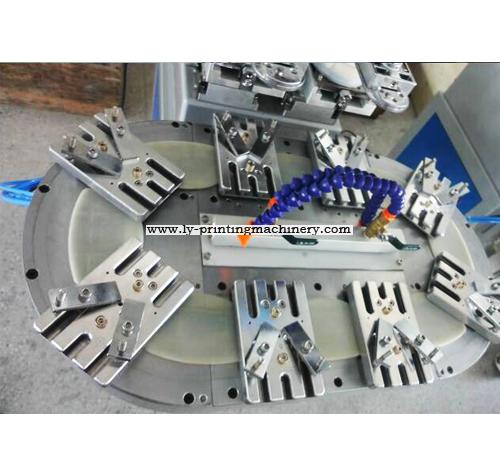

Two closed ink cup pad printer with conveyor has 8 PCS printing position.

It can print 8 PCS products and two color at one cycle

It is to fit pad printing plastic products, same as toyes, gift products, pen, PE products, golf ball package products, bos, , hosehold, stationery, cap, ball, electron products, mobile phone, bottle. Metals products, furniture fittings.

Feature
1.Controlled by microprocessor, easy operation, running stably and accurately.
2.4-digit auto counter built-in.
3.Cast aluminum machine frame, low weight and high intensity, turnable machine head.
4.eparate adjustment of the pad up/down stroke speed.
5.Ink scraper is auto balance keeping in printing.
6.With the function of ink scraping nonstop without printing in order to prevent the ink from drying.
7.Ink cup is turnable and adjustable in vertical and horizontal direction.
8.Super long slide stroke to print large size workpiece.

9.Speed of every single pneumatic organ is adjustable
