> Automatic printing machine

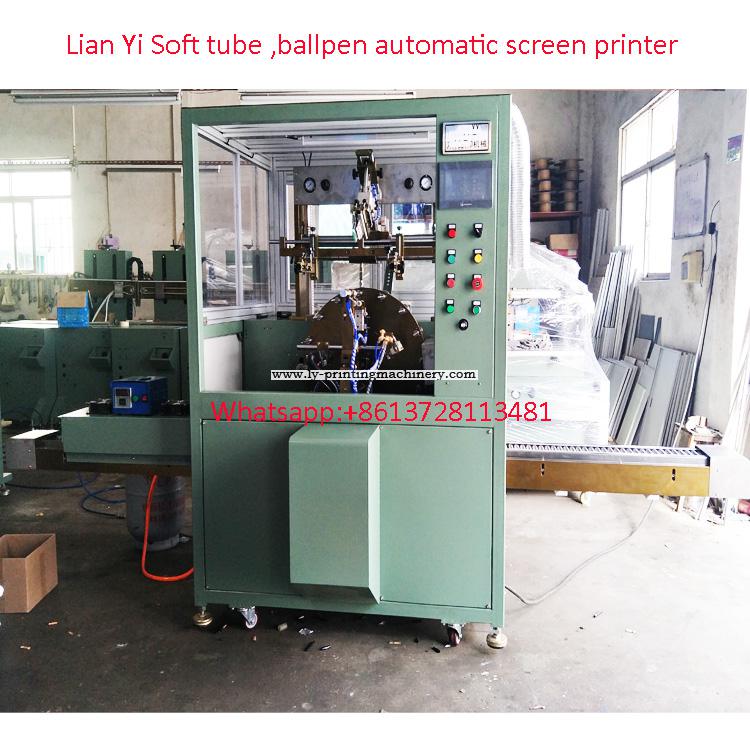

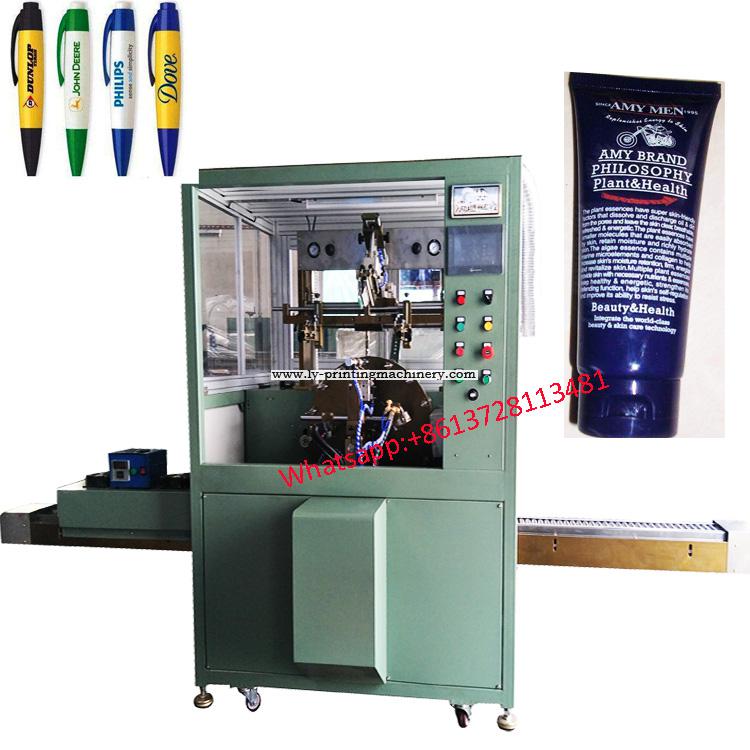

Ballpen soft tube auto screen printing machine

For printing pen with 360 degree
With UV or IR drying system
With flame treatment system
Printing speed:4000PCS/Hr
Product description: LY-BG300
Inquiry Now

PRODUCT INTRODUCTION

Description:

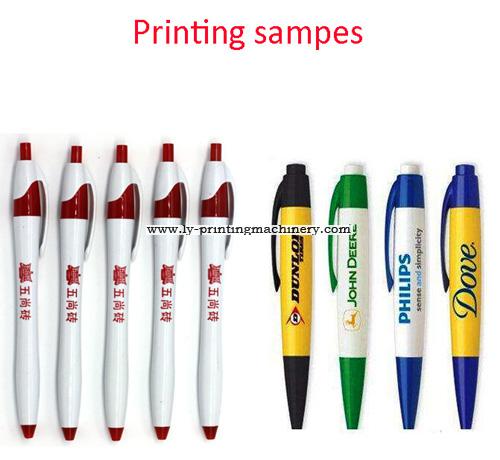

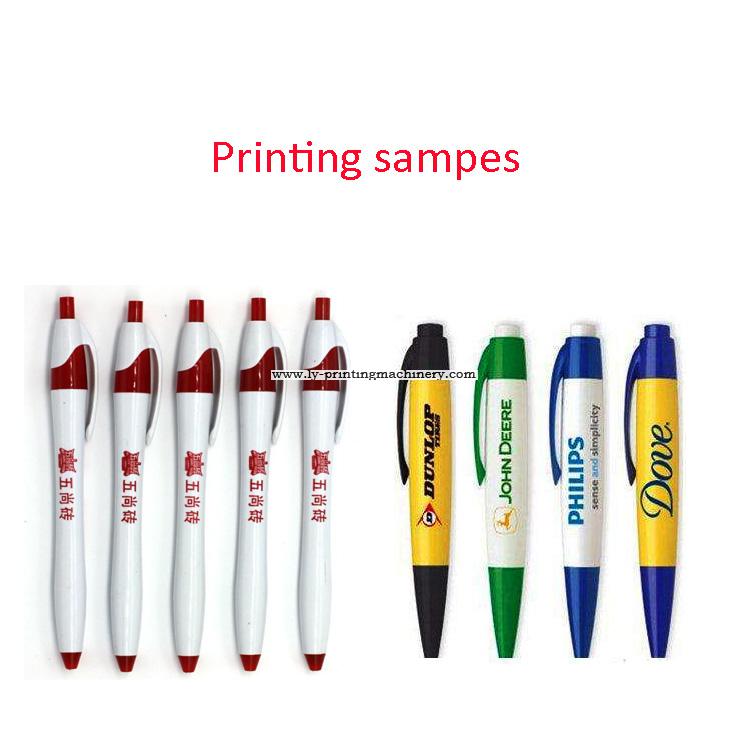

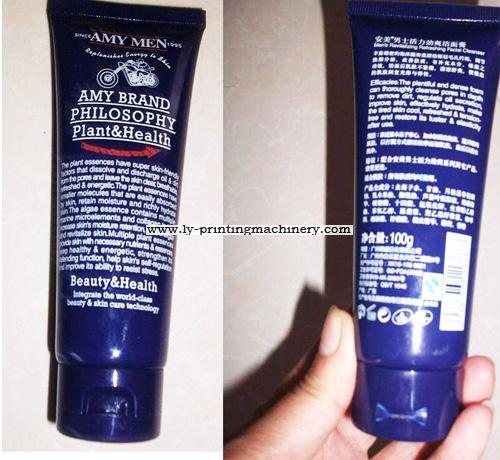

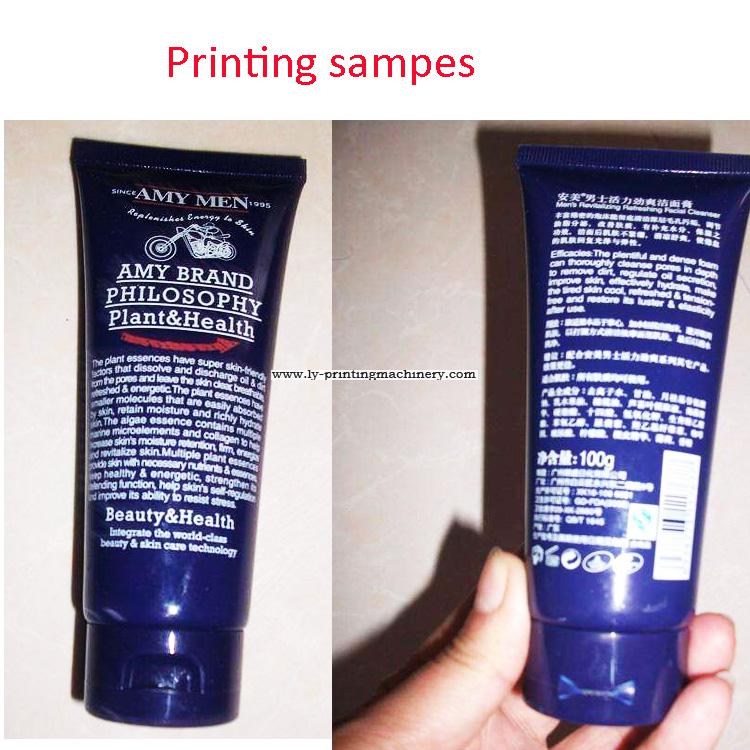

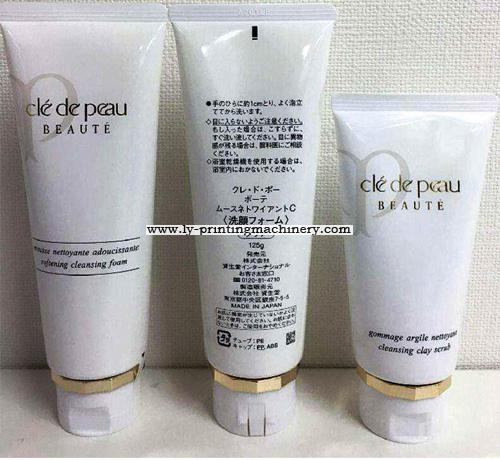

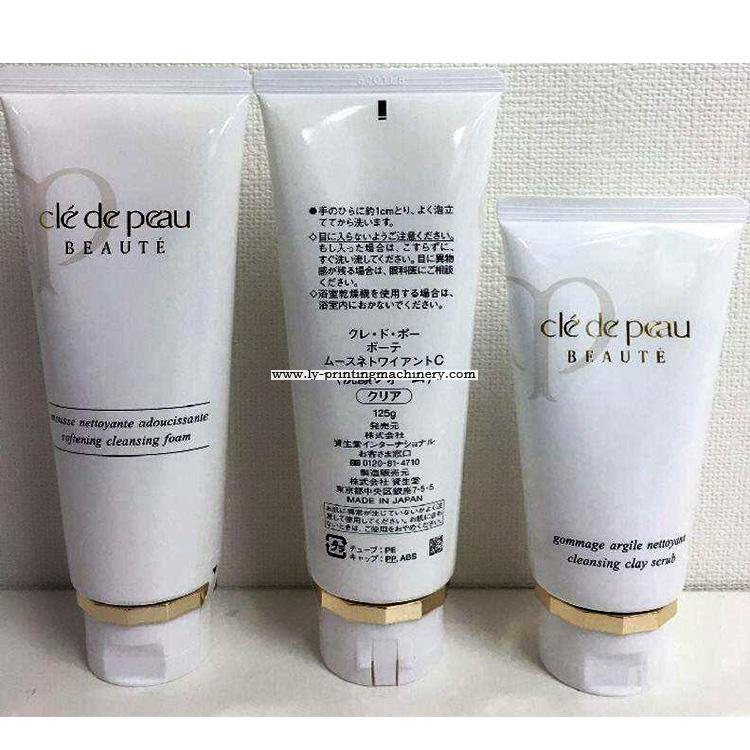

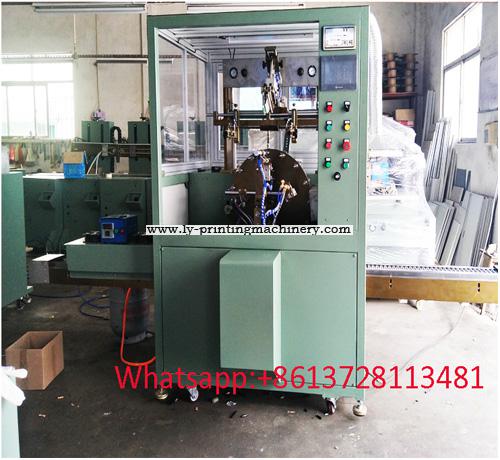

LY-BG300 Automatic Screen Printing Machine for Cosmetic Plastic Tube ,ballpen, cap with 360 degree

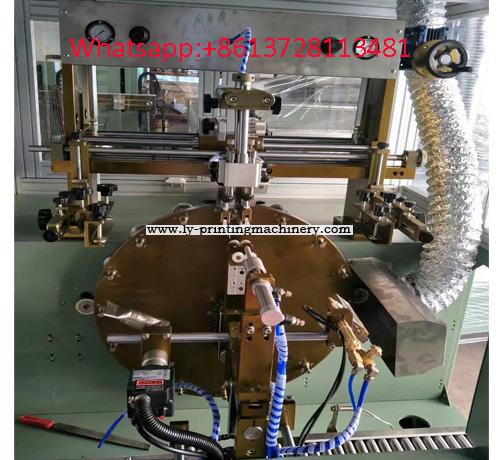

This machine is special for 1 color printing of soft tube, bottle cap,plastic pen and which is similar with the special plastics container. The Max printing speed is 4000pcs/ hour. This machine combine with: advanced PLC、touch operation screen and display control system、fiber digital servo system (the second printing),automatic feeding and unloading conveyer system、flame treatment system , high/low speed mechanical sync transport system, automatic alignment function, and “not work piece not printing” sensor, diagonal mechanical printing fix system.

Feature:
1.The machine is controlled by micro-computer which is stability and reliability, with a clear bright blue screen so that the machine is operated easily and maintained convenient.
2.International famous pneumatic units such as brands of Festo and so on which are selected for the machine, the speed can be adjusted independently.
3.The machine is designed for round objects, it applies to plastic soft bottle,ballpen ,cap, plastic bottle, cosmetic etc.
4.The machine is convenient to select movable printing head for round printing Item.

Specification
1.Machine model：LY-BG300
2.Max printing speed:3500-4000 Pcs/hour
3.Printing area:236mm x 170mm (Φ75mm)
4.Size of printing object:10mm < diameter < Φ75mm 20mm < height < 200mm
5.Power supply:220V 50 MHz/380V
6.Main machine size:L3200mm x W1100 mm x H1800 mm
7.Machine weigh:900 Kg
8.With flame treament system
9.With UV or IR drying system

10.With automatic feeding and unloading conveyer system
