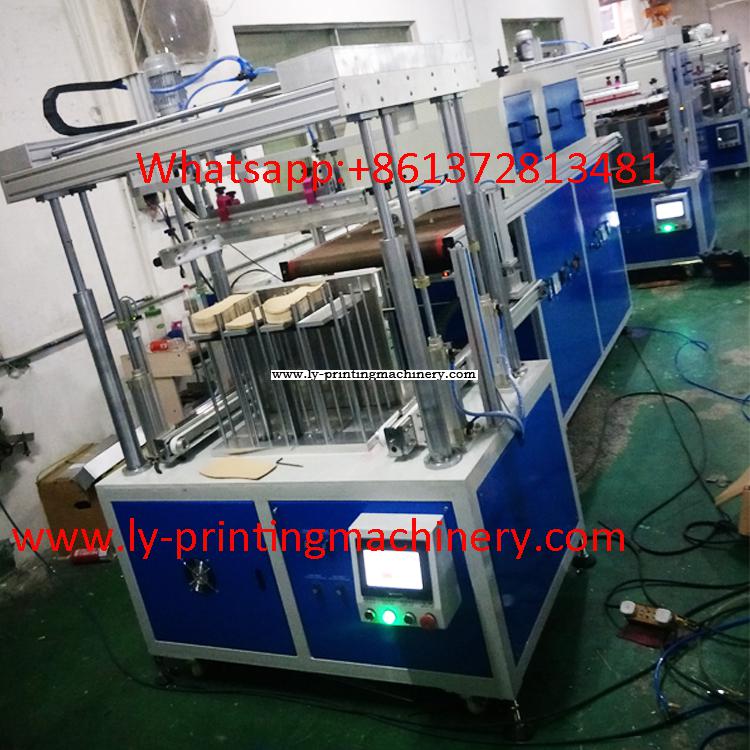

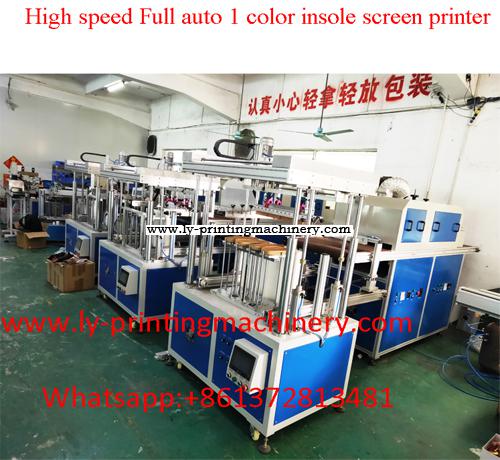

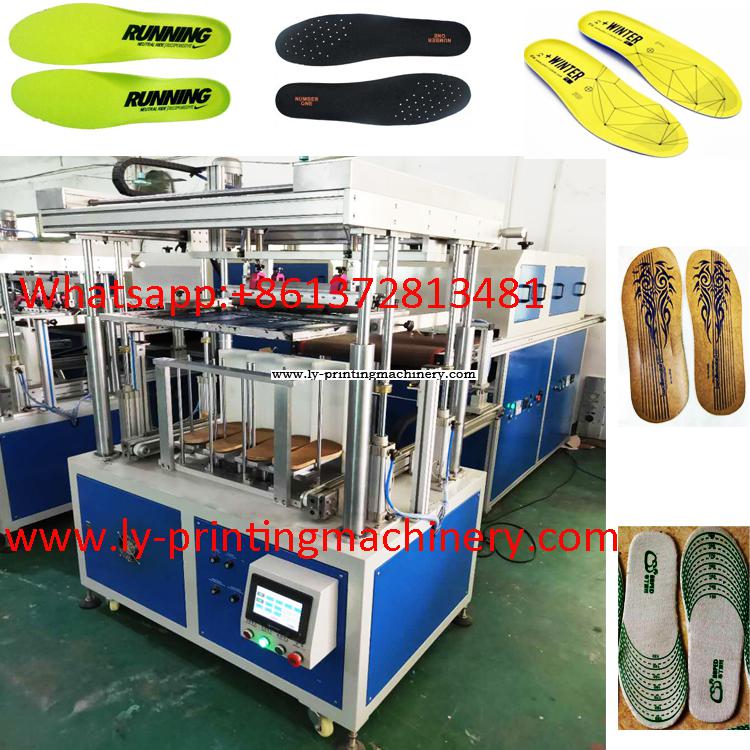

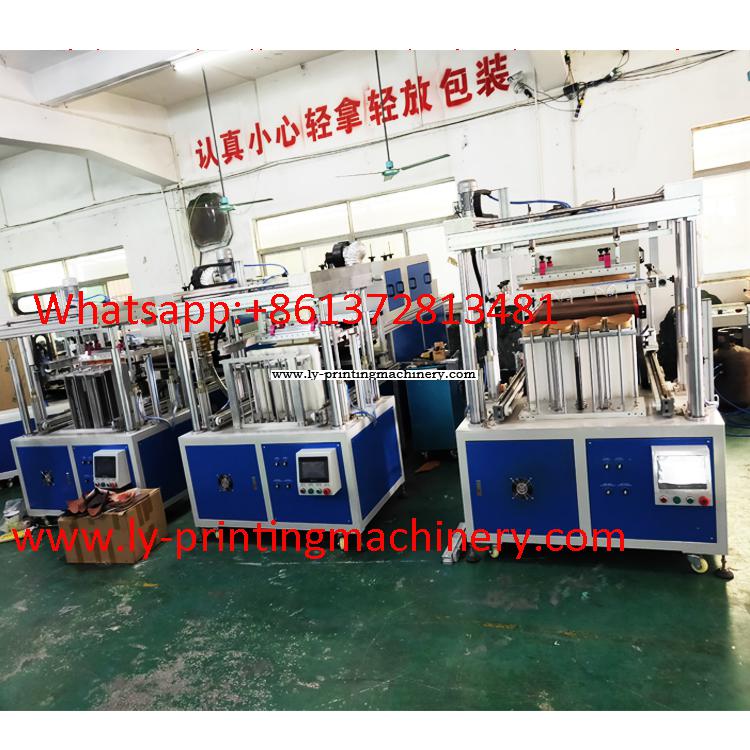

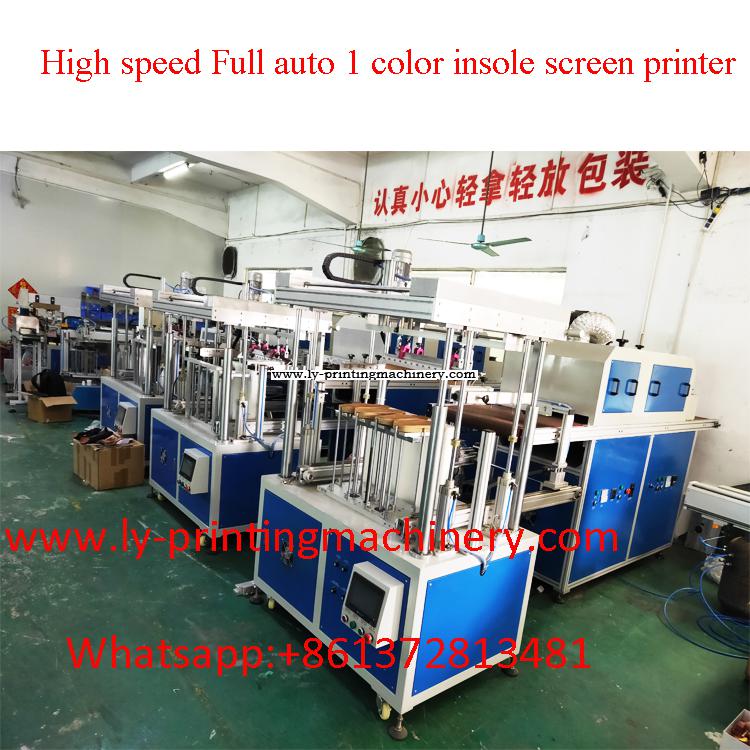

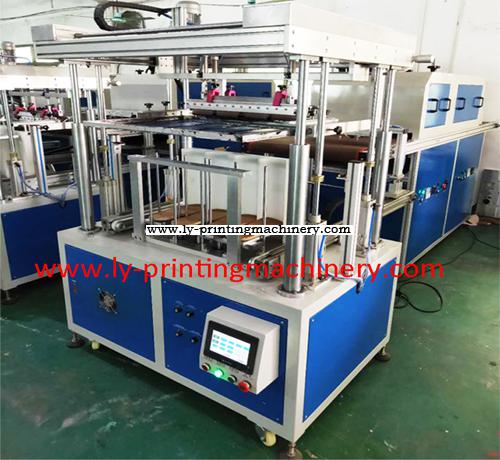

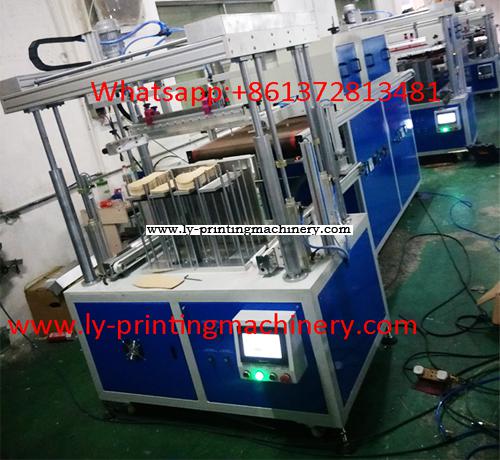

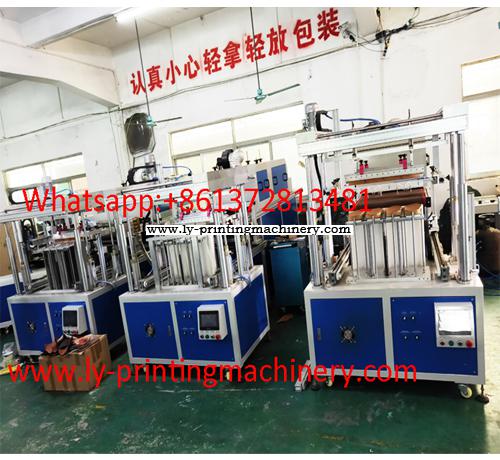

insole easy full automatic screen printer With PLC

Insole full auto printing machine
easy operation
Printing speed:2200PCS/Hr
With IR tunnel drying and UV curing system
Product description: LY-450F-1
Inquiry Now

PRODUCT INTRODUCTION

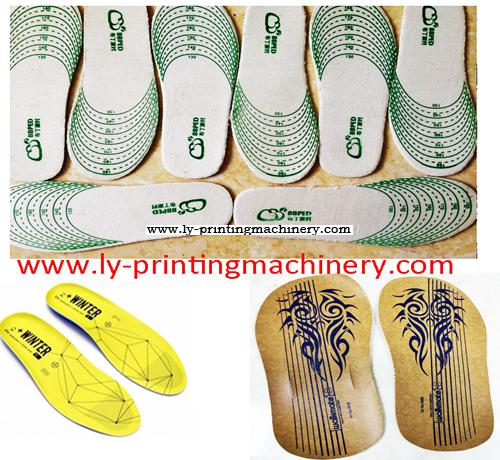

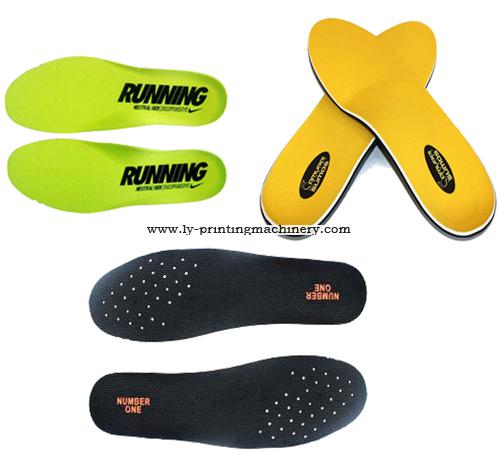

LY-450F-1 is a new tech for printing insole , it is a very easy and high printing speed full automatic silk screen printing machine. it can be printed 4 PCS insoles at the same time, With full feedying and unloading system ,no need any worker to operate , from start and ending all are full automatically.

With PLC control system, high printing results , With IR tunnel drying or UV curing system to match the drying time.

Specification:
1.Drive mode: electric
2.Upper and down stroke: 150mm
3.Printing stroke:800mm
4.Screen frame size:460*720mm
5.Worktable size:450*350mm
6.Max printing area:450*300
7.Printing product max high: 400mm
8.Printing potion: 4PCS
9 Max printing speed: 2200PCS/Hr
10.Voltage power: 220V 50-60Mhz/10W

11Air pressure: 5-7Bar

12.With full feedying and unloading system

13.With IR tunnel drying or UV curing system
